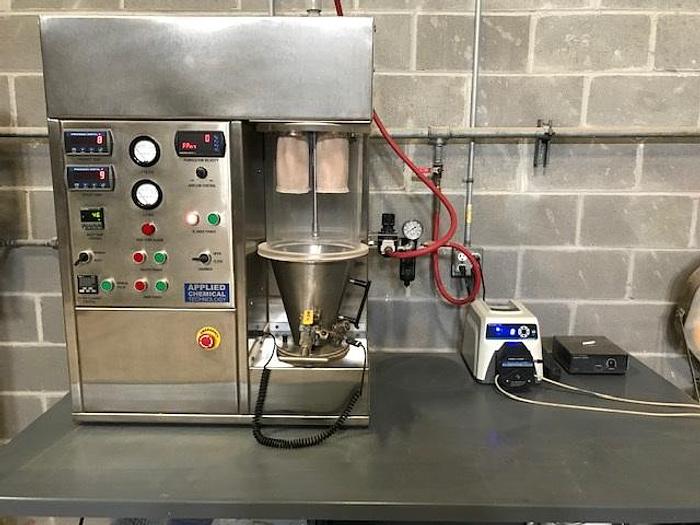

ACT LAB / BENCH SCALE FLUID BED COATER, GRANULATOR, DRYER, REACTOR (#9394)

9394 – ACT model 100N_Fluid Bed Granulator / Coater – Manufacturer’s Literature 1 – lightly used ACT (Applied Chemical Technology) Lab Fluid Bed Granulator / Coater. Model 100N. According to manufacturer’s literature, this machine has a 5 liter, T-304 stainless steel product bowl. 4 in. dia. fluidization plate, 6% open area perforated plate. Insulated 3 kw heater for air temperatures up to 120 deg. C. Air atomized removable stainless steel spray system – top nozzle configuration, Air regulator to measure and control atomization air for spray nozzle. (4) Filter Bags for collecting particulates greater than 0.3 microns. Tough operated back pulse filter bag cleaning system. Motorized chamber sealing system for easy access and operation. MFG Spec Sheet available on request. Standard Technical Specifications Dimensions and Technical Specifications (Standard Model) Dimensions: 30 in. wide x 20 in. deep x 39 in. high (762 mm x 508 mm x 991 mm). Unit requires total 48 in. (1219 mm) height clearance and additional 3 in. (76 mm) clearance to left and right. Additional clearance required for insertion and removal of top spraying system. Weight: 250 lbs (114 kg) Container (Bowl) Volume: 0.18 ft3 (5 Liters) Typical Charge Weight: 0.4-6.6 lbs (0.2-3 kg) (depends on material) Air Volume: 70 cfm (2 m3/min) Fan Motor: 1.5 kW-2 HP Heater: 3 kW-10,200 Btu/hr Comp. Air Pressure: 4 bar gauge (60 psi) recommended Power Requirements: 220V single phase, 60 Hz Unit is represented to be lightly used and in like new condition. AIWI – LOCATION 9394 – 100N_Brochure
