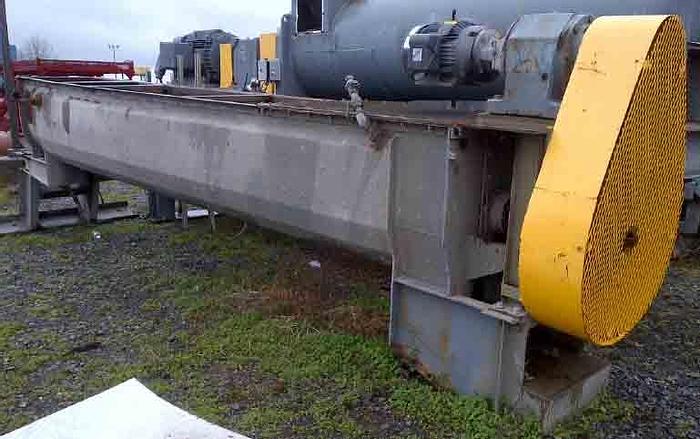

24" x 16' SINGLE SCREW HOLOFLITE PROCESSOR - C/S - HOT OIL

orCall 216-409-1394

Description

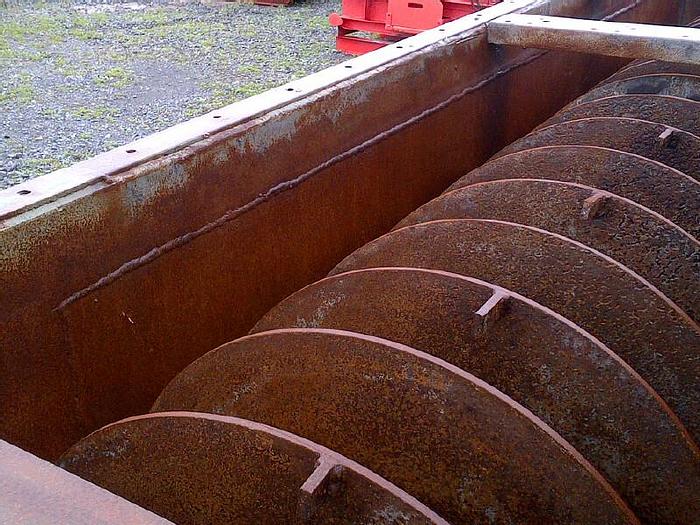

1 - used 24" x 16' Denver Single Screw Holo-Flite Processor. Model S2416-6. 24" dia. x 16' long carbon steel screw. Jacket: Straight, conventional, single zone.

Pressure-Screw: 150# @ 650 deg. F, Hyd 225# ASME, National Board stamped.

Pressure-Trough: Atmospheric/Low Positive or negative pressure

Pressure-Jacket: 30# @ 650 Deg. F Hyd. 45# ASME, National Board stamped.

Fluid Medium: Hot Oil

Driven by: 10 HP 3/60/460V, TEFC, originally fitted with 2 HP

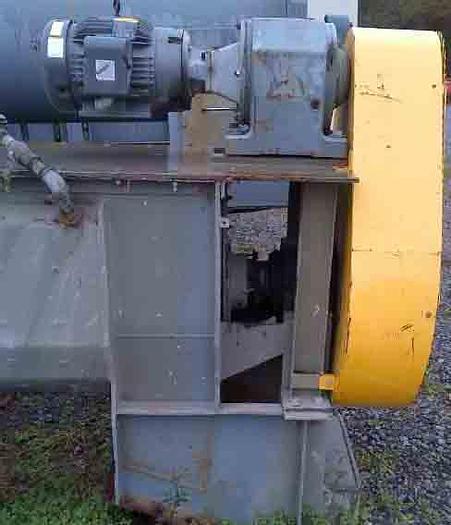

Driven Via: SEW Eurodrive, inline fixed ratio gearbox, 1760 RPM in/51 RPM out to 2.3:1 reduction chain sprocket

RPM-Screws: 0-24 RPM

Prior service: Originally cooled Sulfonated Limestone. 3275PPH / 47SCFH @ 70#/Cu Ft, -1/2" material, from 1550Deg F to 275Deg F with 70GPM 80Deg F water @ 50psi in screws. Variable throughput will affect residence time and Delta T. Also heated or cooled Calcium Carbonate, Gypsum. Max. Capacity approx. 3tph 40%H2O in/5% out. Varies dependent on RPM, product type, moisture content/evaporation rate/temp. Heat load approx. 974,285 Btu/Hr. 800-1000pph moisture removal

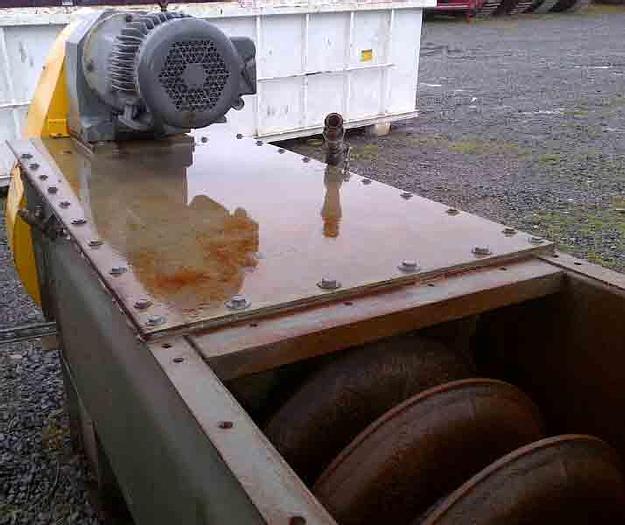

COMMENTS: Includes 3" Johnson rotary joint. No top cover except drive mount plate at last 4ft of discharge end, mounted on trough top flange with supprts to frame. Discharge approx. 24"wide x 21"long, flanged underneath at drive end. Heat load approx. 974,285 Btu/Hr. Screw 173 Sq.Ft. surface area approx. Jacket 74 sq.ft. surface area approx.. Low hours bearings and new drive assembly.

SHIPPING SIZE-W X H X L: 3'W X 2'H X 20'L

APPROX. WEIGHT-LBS: 7000#

FOB - LOCATION

Specifications

ManufacturerDenver
ModelS2416-6
ConditionUsed
Stock Number10086
Size (smallest to largest)24" X 16'
