7.5 HP HIGH SPEED DISPERSER - VARIABLE SPEED - HYDRAULIC LIFT

Sold

Description

(1) used 7.5 hp High Speed Disperser

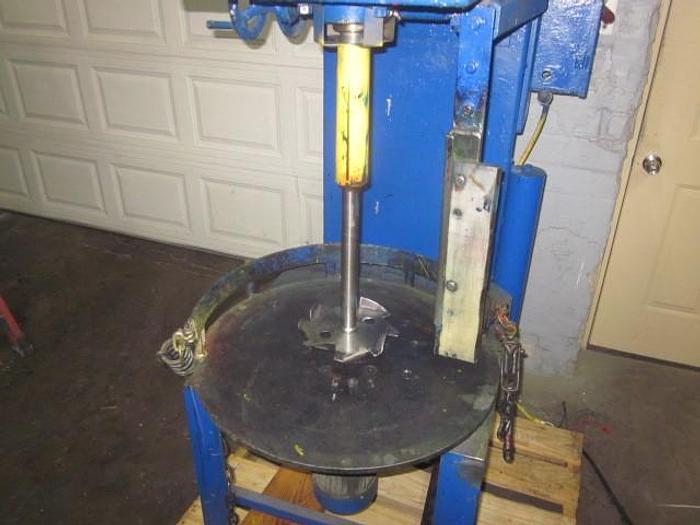

1.25" diameter shaft x 23" long with 8" diameter blade

9" long shaft guard - which is removable

Shaft and blade are magnetic, but very clean

7.5 hp main motor, 3 phase, 230/460 voltage, belt driven variable speed

Hand crank variable speed

Hand crank side wall tank scraper with Teflon wiper

24" diameter rotary table with 3/4 hp gear reduced drive, 29 rpm

Unit can be run with or without the rotary table being underpower

3/4 hp Hydraulic drive for raising the unit out of the tank

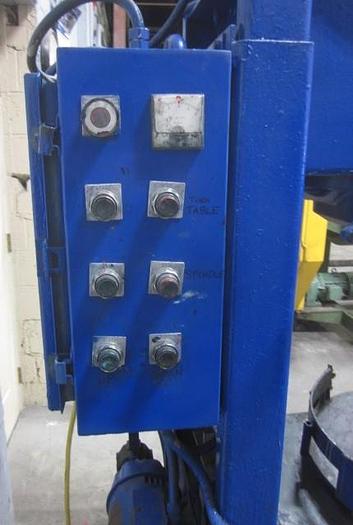

Complete unit is wired to the control panel with push button controls

Presently wired for 3 phase - 230 voltage

Equipped with disconnect and 3 E-stop buttons


F.O.B. - LOCATION

Specifications

ConditionUsed
Stock Number10400
Size (smallest to largest)7.5
