NEW - 50 CU. FT. RIBBON BLENDER - S/S - 20 HP

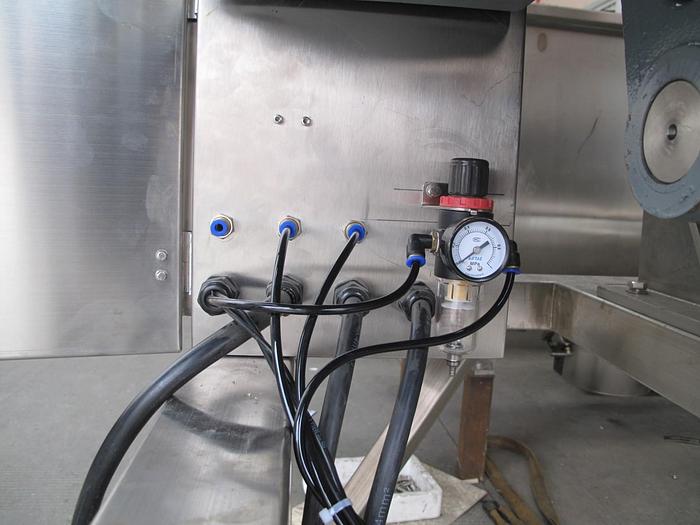

1 - New 50 Cubic Foot Working Capacity Stainless Steel Double Ribbon Blender. Features: 304 Stainless Steel Construction, (mirror finish ribbons) pneumatic flap discharge, controls, and Teflon air seals. Overall Capacity: 1835Litres. Effective Capacity: 1468L Trough Measurements: 1800mm Length x 970mm Width x 1155mm Depth. Floor to Discharge: 600mm (or specify) Overall Dimensions: 2700mm Length x 1400mm Width x 2300mm Height, Weight 1000Kg. Electrics: 20 HP Motor, 3Ph/60Hz/220Volts, 15Kw, up to 46 RPM. Radius 485mm. Delivery: Approx 8-10 weeks from receipt of 65% deposit.(balance prior to shipment from factory) Selling Price: FOB Factory....Limited Warranty
Plus Shipping/Customs to Toronto and then to USA at additional cost

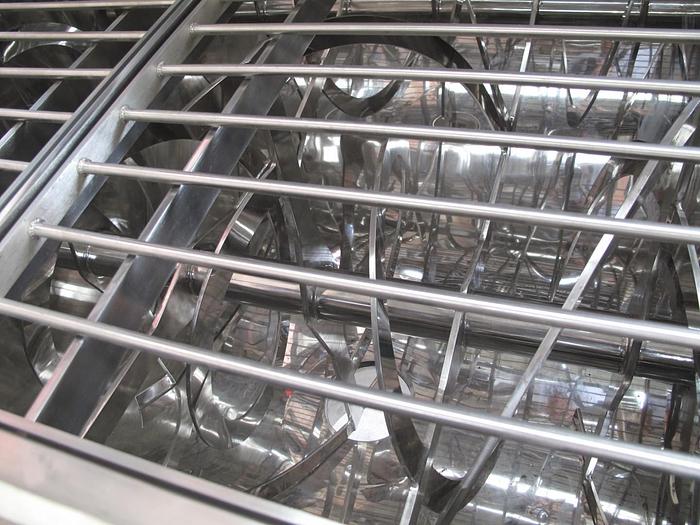

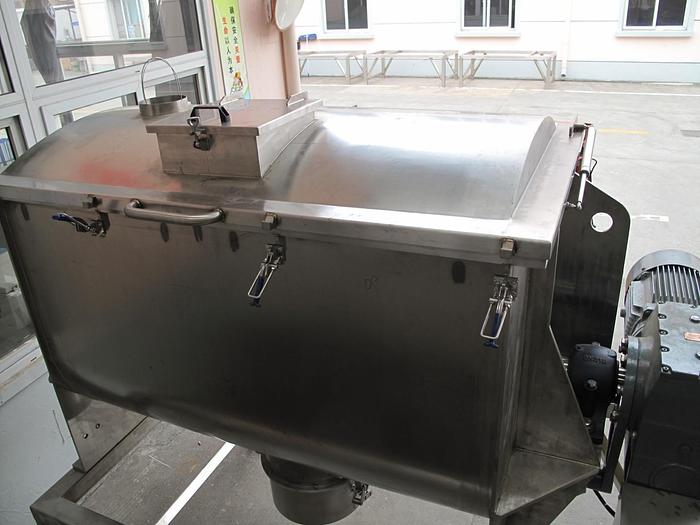

Description: Consists of U-Shape tank, spiral and drive parts. The spiral is dual structure. Outer spiral makes material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing.
Our DP series Ribbon mixer can mix many kinds material especially for the powder and granular which with stick or cohesion character, or add a little liquid and paste material into powder and granular material. The mixture effect is high. The cover of the tank can be made as open in order to cleaning and change parts easily.
Main features: Single shaft with dual spiral symmetry circle structure. The top cover of the U Shape tank has the entrance for material. It can be also designed with spray or add liquid device according the customer’s needs. Inside the tank there equipped the axes rotor which consist of, cores support and spiral ribbon. Under the bottom of the tank, there has a flap dome valve (pneumatic center) The valve is arc design that assure no material deposit and without no dead angle when mixing. Reliable regulate seal prohibit leakage between the frequent close and open. The disconnected ribbon of the mixer can make the material mixed with more high speed and uniformity in short time. This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put into medium into the interlayer to get the mixing material cold or heat. Usually use water for cool and hot steam or use electrical for heat
