INDUSTRIAL FILTER UNIT – TYPE 122.332 – SERIES 48-4-14 (#9685)

orCall 216-409-1394

Description

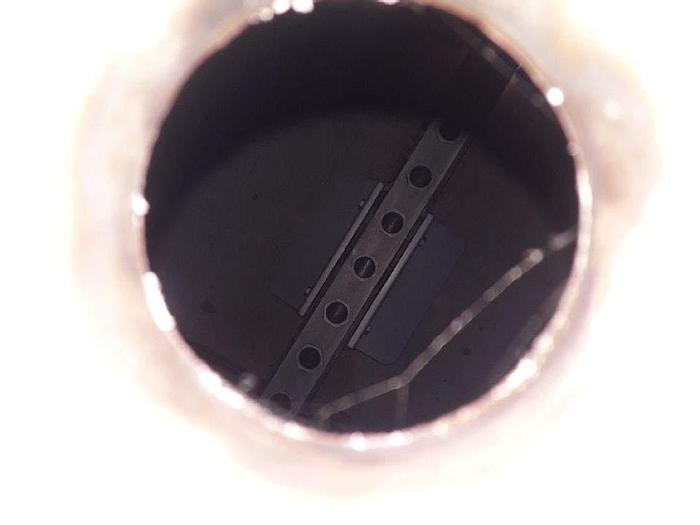

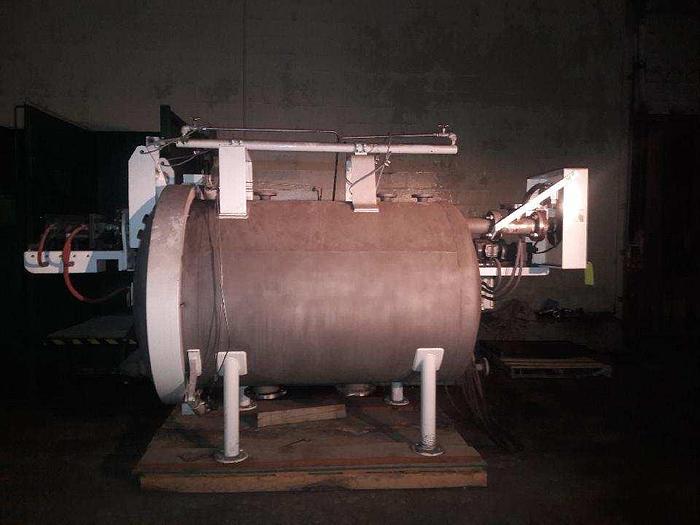

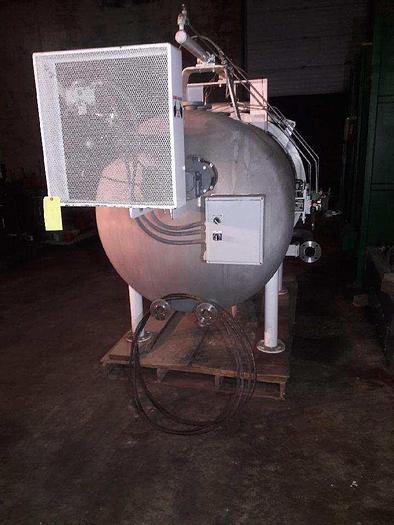

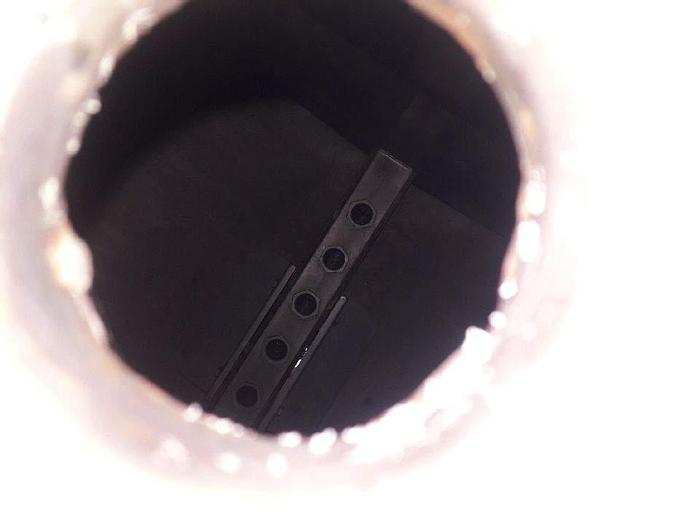

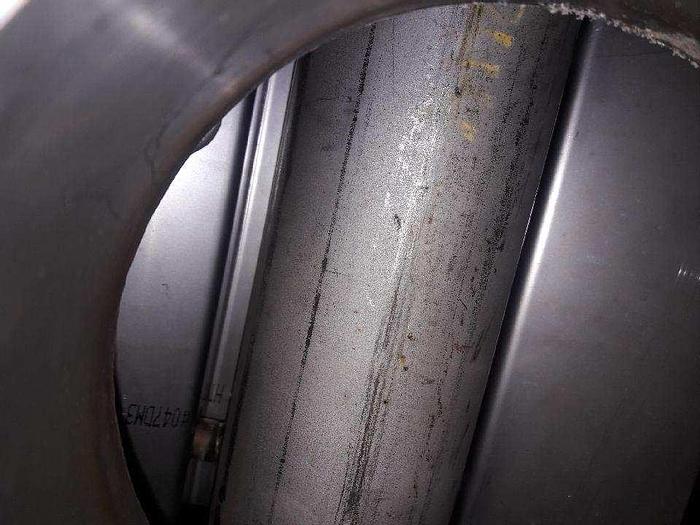

1 – Filter Unit, Type 122.332, series 48-4.0-14, model L4D. 48 in. dia. horizontal chamber in T304 stainless steel. ASME code stamped for 70 psig internal. Interior welds ground smooth. All external itmes sandblasted with steel parts painted white epoxy. Vessel designed, built, inspected & stamped in accordance with ASME code, section VIII, Div 1, 2010 edition and addenda. General Specifications; Filtration Area (wire cloth): 193.2 sq. ft. / 17.9 sq. M Dished Head Thickness: 5/16″ / 7.9 mm Dished Head Radius: 48″ / 1219 mm Shell Thickness: 3/16″ / 4.8 mm Shell Outside Diameter: 48″ / 1219 mm Empty Weight (approx.) 3150 lbs / 1429 kg Shipping Weight (approx) 3450 lbs / 1565 kg Tank Volume (approx) 630 gal / 2385 liters Design Temperature: 42 deg. to 200 deg. F / 6 deg to 93 deg. C Design Pressure: 70 psig Air required for vibrator: 60 scfm @ 80 psig Parts manual with drawings available

Specifications

ManufacturerIndustrial Filter & Pump
ConditionUsed
Stock Number9685
Size (smallest to largest)10.0
