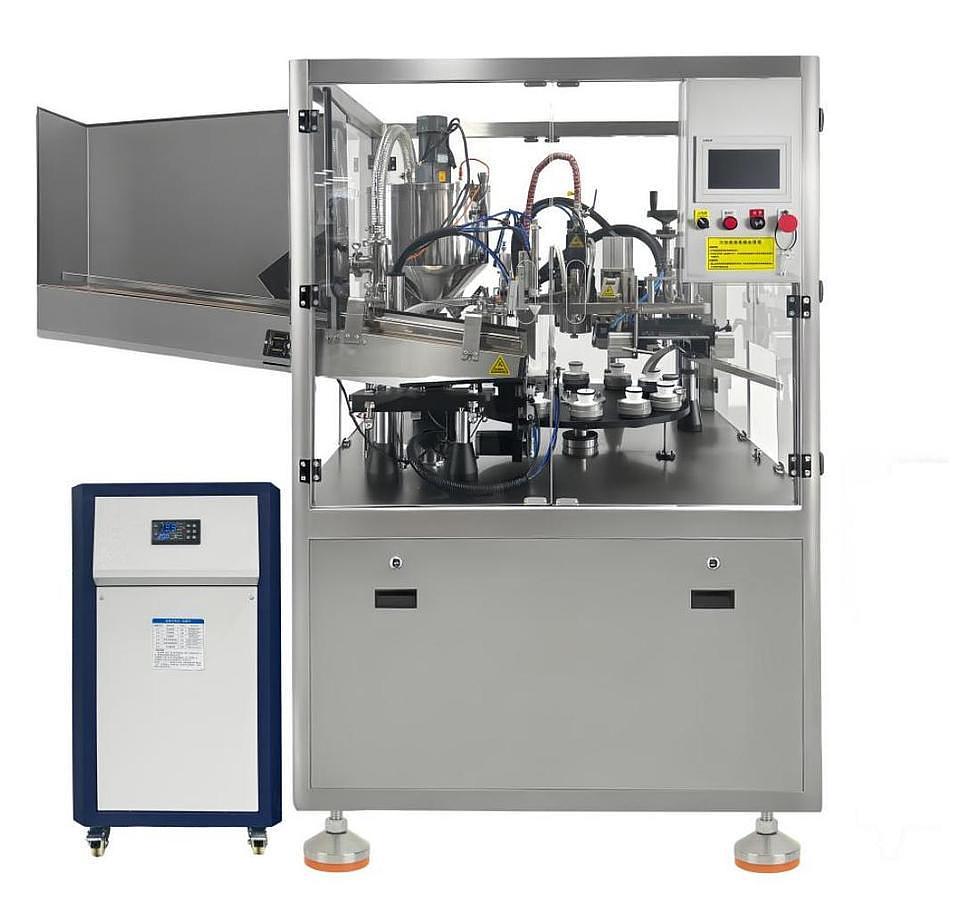

AUTOMATIC TUBE FILLING AND SEALING MACHINE (WITH INTERNAL HEATING)

Features

• 12-station turntable with an indexing mechanism providing intermittent motion, enabling the 12 mounted fixtures to rotate in equal steps.
• After automatically loading the tubes, the machine performs servo-controlled alignment, providing precise positioning for each tube.
• The machine features an insert-type filling nozzle to prevent spillage, operated by a pneumatic lift cylinder for precise in-and-out movement. Filling is done with a servo-driven gear pump, achieving ±1% dosing accuracy.
• An electric-heated copper block maintains temperature, while synchronized electric and hot air nozzles evenly heat the inner tube wall, greatly enhancing sealing strength and quality.
• All operations except manual tube loading are fully automated, including filling, internal and external heating, sealing, coding, trimming, and finished product ejection. The machine runs smoothly and reliably.

Tube diameter 0.63–1.97 in (16–50 mm)

Tube length 3.54–9.84 in (90–250 mm), customizable

Filling volume/per tube 0.17–10.14 fl oz (5–300 ml)

Alignment method Servo-controlled

Filling method Servo-driven gear pump

Sealing method Internal heating

Speed 3–10 rpm

Production capacity 40–55 tubes/min

Compressed air 72–116 psi (0.5–0.8 MPa)

Power supply 200-240Vac,50/60Hz

Dimensions (L×W×H) 82.7 × 51.2 × 74.8 in

Machine weight 1102 lb (500 kg)
