0.10 SQ MT – 3V COGEIM TYPE FILTRODRY NUTSCHE PRESSURE FILTER DRYER – HASTELLOY C-22

orCall 216-831-8485

Description

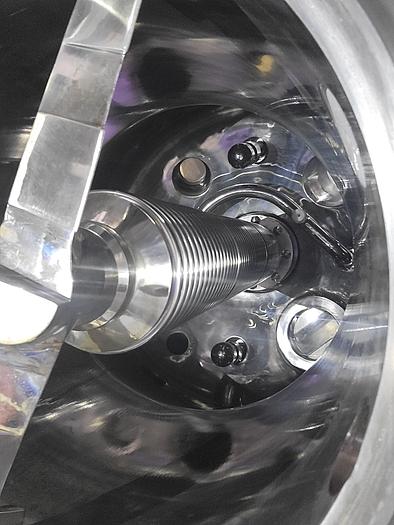

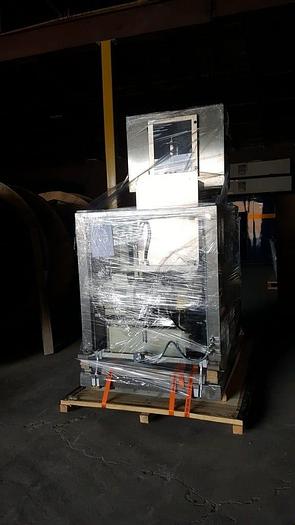

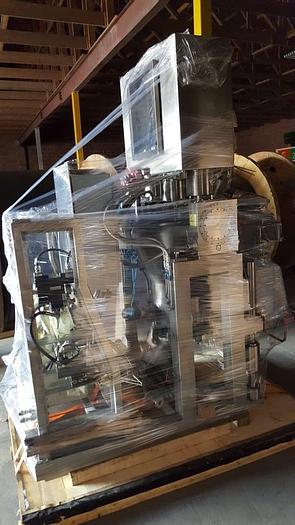

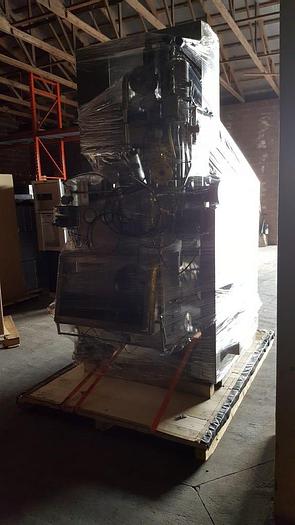

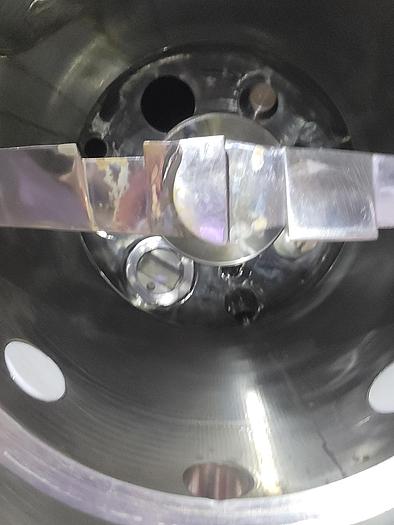

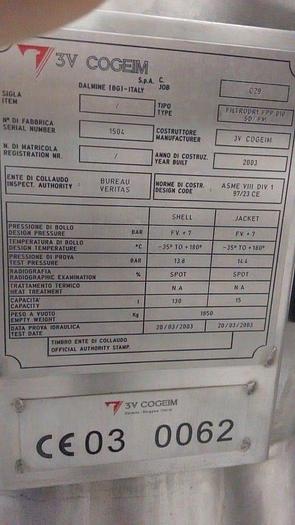

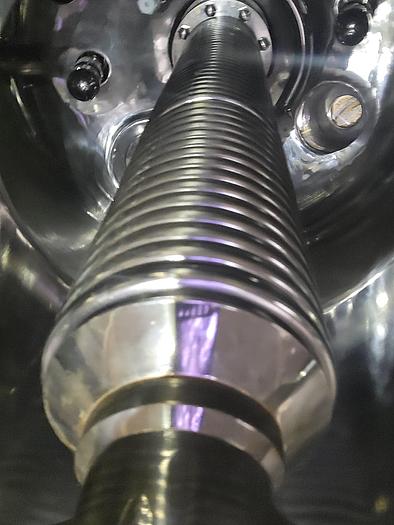

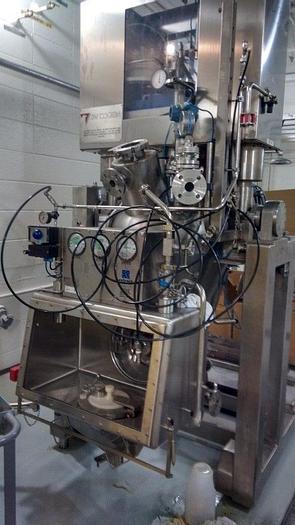

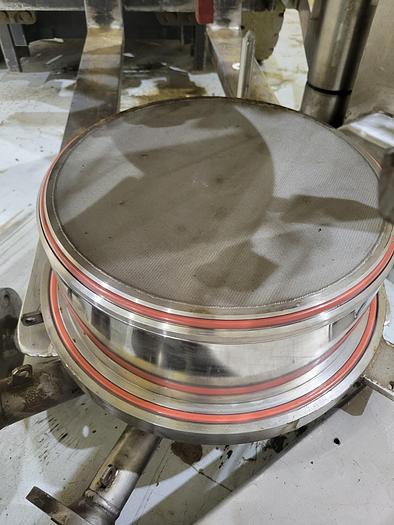

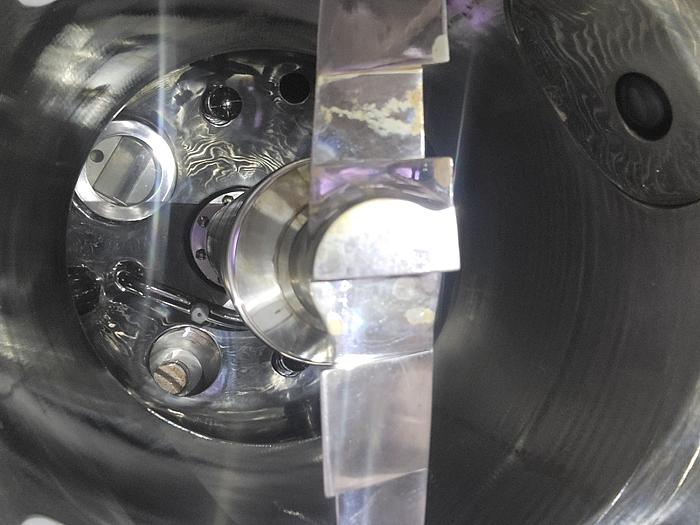

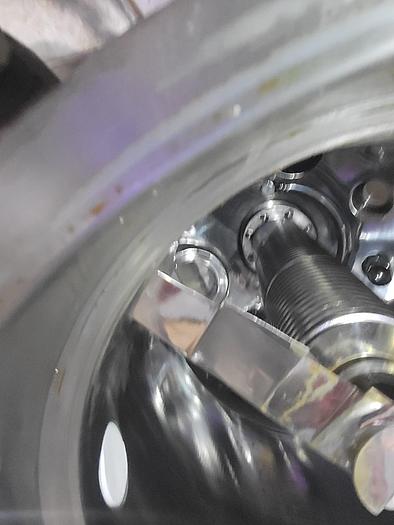

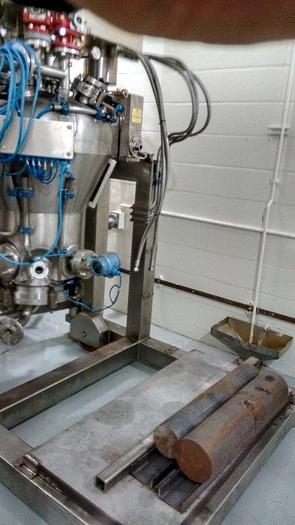

1 – used 3V Cogeim Type Filtrodry FPP010 SD/FM Nutsche Pressure Filter Dryer. Hastelloy C22 contact parts. Approx. 350 mm dia. filter plate with 0.10 SQMT Filtration area. 130 liter total capacity and 60 liter slurry capacity. Welded dished top and clamped flat bottom plate with hinged Davit Arm for swing away removal. Internal rated full vacuum/7 Bar design pressure @ -35/+180 deg. C. External stainless steel jacket 15 liter capacity rated rated full vacuum/7 Bar design pressure at -35/+180 deg. C. With top mounted dust filter. 2 blade agitator with bellows and top mounted gearbox. With hydraulic power pack for agitator, raise & lower with 200 mm stroke and side discharge operation driven by 5.5 kw 380-415 volt, 3/50, 1455 RPM motor. Comes with Extract Technology Isolation Booth with discharge valve. Unit is mounted in stainless steel frame and was built new in 2003. A.I.W.I. – LOCATION Pay $2,200.00 /month with approved credit

Specifications

Manufacturer3V Cogeim
ModelFPP 010
ConditionUsed
Stock Number8834
Size (smallest to largest)0.0
