NEW 1 HP POST MOUNT HIGH SPEED DISPERSER

NEW 1 HP HIGH SPEED DISPERSER – TEFC WITH VFD & CORD - 1/60/115V.

Model: DP1

12" Stroke, 2" & 3" DBL, No Lift Limit Switch, No Container Limit Switch

• Motor: 1 HP TEFC Electric Motor

• Control: Machine Mounted Type 4X VFD, 115V/1PH with Cord

• Speed: 500-5000 RPM

• Mount: DP1 Frame Assembly w/ Container Holder

• 12" Electric Lift with 110V Cord (for non-XP mixers only)

• Safety: Shaft Shroud Included as a Standard

• Shaft: 3/4” Diameter, Tapered and Tapped 3/8"-16, 316SS; Rotor Stator Head Assembly, Angle Slots Stator 316SS, Bronze Lower Shaft Support

• Impellers: (2) Dispersion Blades 3/8" CH, 304SS, 2", 3

Safety Switches - (ADDER - price on request)

••Fixed Position on Lift

••Container in Place

APPROX. 10 business days (SUBJECT TO CHANGE)

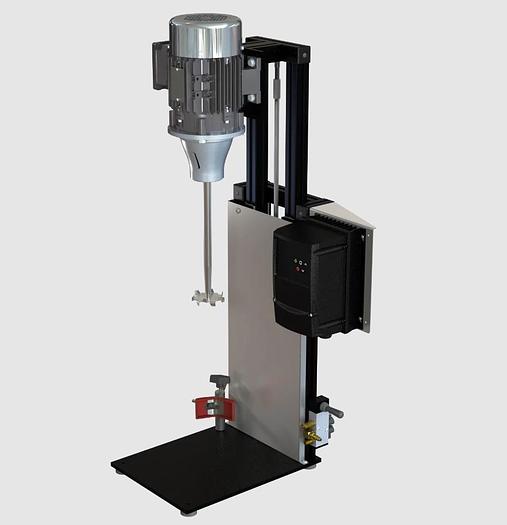

The following images would be of the non XP DP1.

The only difference would be the area on the image where the lift joystick sits.

Unit will be electric lift and there will be a toggle in a mounted gang box to raise and lower
