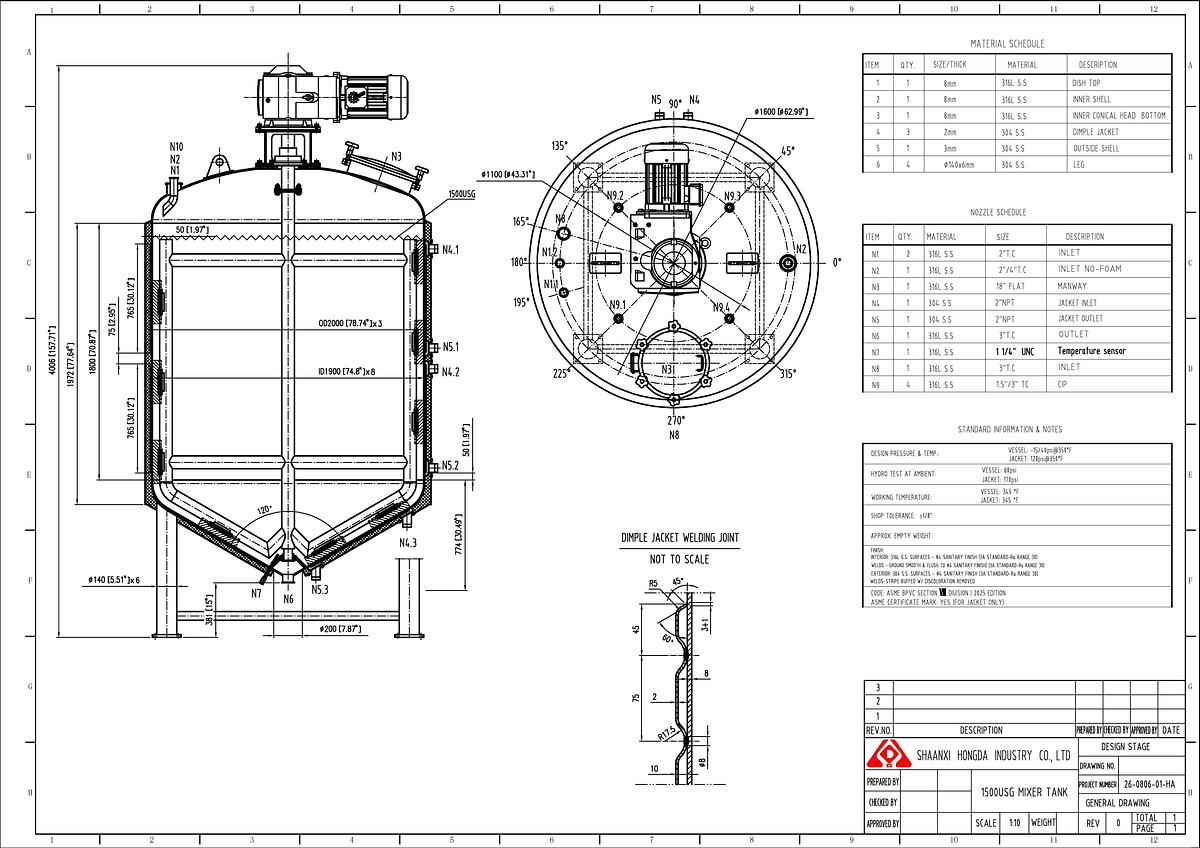

1,500 GALLON JACKETED MIX TANK - T-316L S/S CONTACTS - 40 PSI/FV/120 PSI

• Sanitary configuration
• Constructed of T-316L stainless steel for products contact areas, other parts T-304 non-contact
• Internal and external finish Ra32 finish.
• Dimple jacket is rated at 120 psi with ASME-U stamp with NB register. 2" rockwool insulation with outer sheathing.
• Tank internal rating: 40 PSI/full vacuum @ 350° deg. F
• 10 HP agitator is12 RPM, side-and-bottom scraper type
• Bottom discharge: 3-inch sanitary ball valve
• Midway 2-inch inlet
• Dual CIP spray balls
• Sanitary Tri-Clamp connections
• Closed dished top and conical bottom
• Tank ID=1900 mm, straight shell height 1800 mm, overall height is about 4000 mm
• Approx. weight: 2400 kg. (5,300 lbs)
• Controller not included but available as an option

3.5 month lead time

2 year warranty
