AUGER VALVE OPEN MOUTH BAGGER WITH OPTIONS – NEW – #9524

orCall 216-831-8485

Description

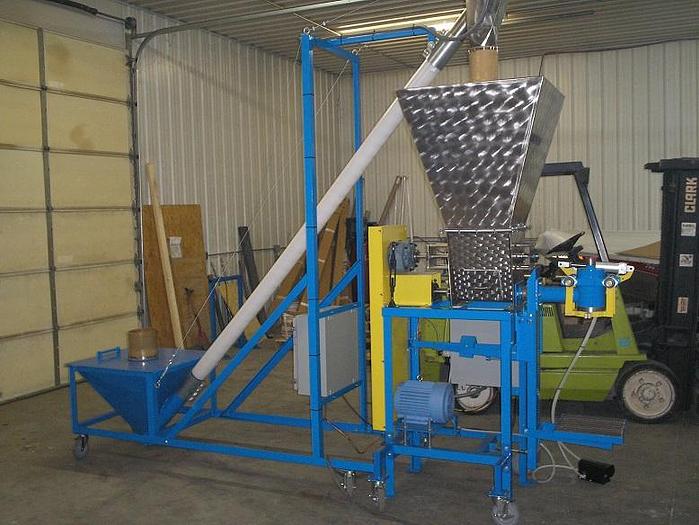

Listed below is a current quotation on the Model 206OM heavy duty gross weighing auger bagger for filling open mouth bags with dry granular or powdered products. Also listed are some options. Each bagger should package about (3-6) 50# bags / minute, depending upon the product. The filling spout size can be made to match your bag. Accuracy and production rates are based upon adequate product head above baggers, good flow characteristics, and proper bag design. The standard mechanical bagger will give you +- ½% accuracy. Electronic weighing gives +- 1/4%. AUGER OPEN MOUTH BAGGER MODEL 206OM New gross weighing auger bagger with air actuated bag clamp, mechanical scale weighing, mild steel construction. STANDARD SPECIFICATIONS: – 5 HP TEFC motor (240 or 480v, 3 phase, 60 hertz) – NEMA 12 electrical controls, with forward and reversing starter on mechanical scale bagger – Scale beam weighing (mechanical weighing). Weight range 20# -110# – Open Mouth Filling spout as per bag’s specification – Ribbon / spike agitator in primary hopper for hard-to-move products – Dust collection port OPTIONS : 304 Stainless Steel Contact Surfaces…..$tbd Electronic weighing, 2-speed bulk and dribble fill, with Rice Lake digital…….$tbd controller and ABB variable frequency drive, NEMA 12 10″ butterfly valve with actuator, mounted on bagger’s hopper for floody product…..$tbd Auto start and auto bag kicker chair, for use with a conveyor…..$tbd 10″ dia.top-hat ….$tbd F.O.B: Crofton, KY THIS QUOTE IS GOOD FOR 30 DAYS TERMS: 50% down with purchase order, to begin project 50% to release equipment

Specifications

ConditionUsed
Stock Number9524
Size (smallest to largest)0.01
