NEW - AUGER FILLER

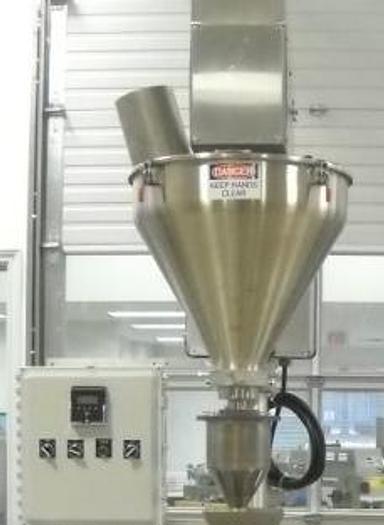

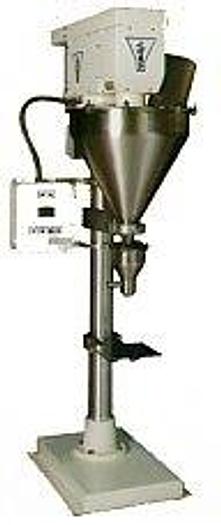

New AUGER POWDER FILLER Model 5000

Electrics of Motor: 3 Phase / 60 Hertz / 220Volts.

Approx. Overall Dimensions: 36” wide x 36” length x 84” height.

Approx. Gross Weight: 800 lbs.

Fills from 1gram to 12 lbs.

Fully Anodized Head Casting

22” Diameter Stainless Steel Hopper- 16 Gallon Capacity

22” Stainless Steel Hopper Cover w/ Duct Insert and Inspection Door

Quick Release Clamps for Hopper and Cover

Self Aligning Quick Disconnect and Hopper Coupling

Stainless Steel Top and Side Covers

Stainless Steel Frame w/Height Adjustment / Aluminum Column

Fill Drive to Include:

Heavy Duty Electric Clutch Brake w/Stainless Steel Shaft

1 1/2 H.P.1800 rpm Drive Motor w/ Pulley

Three Step Pulley For Variable Speed

Totally Enclosed Stainless Steel Belt Guard w/Easy Access

Housing w/Bearings to Guide Clutch Brake Shaft

Counter Controller

Slow Speed Agitator Switch For Continuous or w/Fill

Up / Down Fine Adjustment Keys

Hopper Empty and Jog Fill Switch

Main Power Switch w/ Safety fuse

Optical Encoder

Digital Counter

Footswitch Activated {can easily be integrated to automatic packaging machines}

Agitation:

1/2 H.P.1800 RPM Agitation Motor w/ Gear Reducer

Blade to Sweep Inside Wall of Hopper

Sprocket to Sprocket Chain Drive w/Idler

Stainless Steel Spindle w/Bushing and Seal (Seal to help prevent product from going up in head casting)

*Approx. Cost for Change Parts/Augers are and additional…$3,980 USD per set (based on specs) Available Tooling Size
