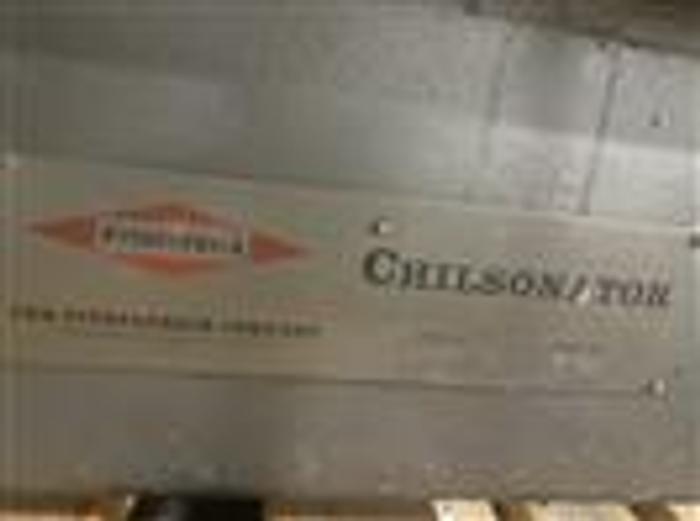

4" X 10" FITZPATRICK CHILSONATOR - MODEL 4B
or
Call 216-409-1394
Description
Used Fitzpatrick Chilsonator Roll Compaction System
- Model 4B 4X10
- S/N 584
- Equipped with circumferentially grooved rolls driven by 20 HP 3/60/208-230-460 volt motor.
- Roller compactor is equipped with both vertical and horizontal screw feed each separately driven by 7.5 HP and fractional HP motors respectively.
- Machine is mounted on a platform on tall legs and supplied with Fitzpatrick DAS06 Comminuting Mill driven by 5 HP 3/60/230-460 volt motor.
- Can be supplied with Kason 48 in. diameter Stainless Steel Vibratory Screener Model K48-2-SS. S/N M-4266, if required, at additional cost.
- Equipped with integrated control panel for entire System.
- Has vertical feeder rolls, need to rebuilt 20 main drive,
Specifications
| Manufacturer | Fitzpatrick |
| Model | 4B |
| Condition | Used |
| Serial Number | 584 |
| Stock Number | 10769 |
| Size (smallest to largest) | 4x10 |
