10 GALLON ROSS POWERMIX MIXER – S/S – VACUUM & JACKETED (#9380)

orCall 216-831-8485

Description

OPTION #1 (mixer in as-is condition, no disperser, no warranty)

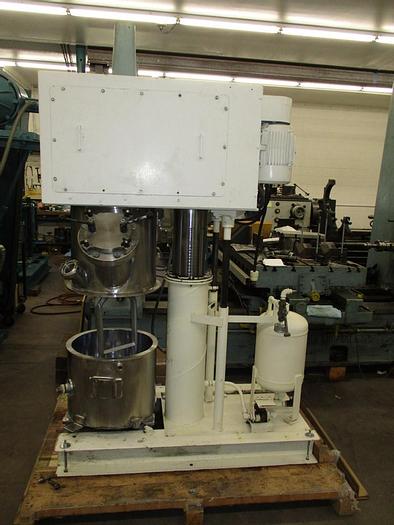

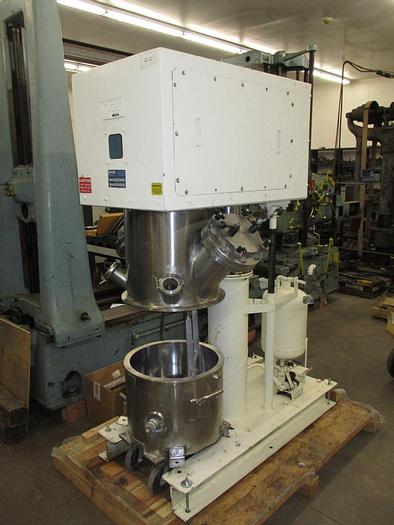

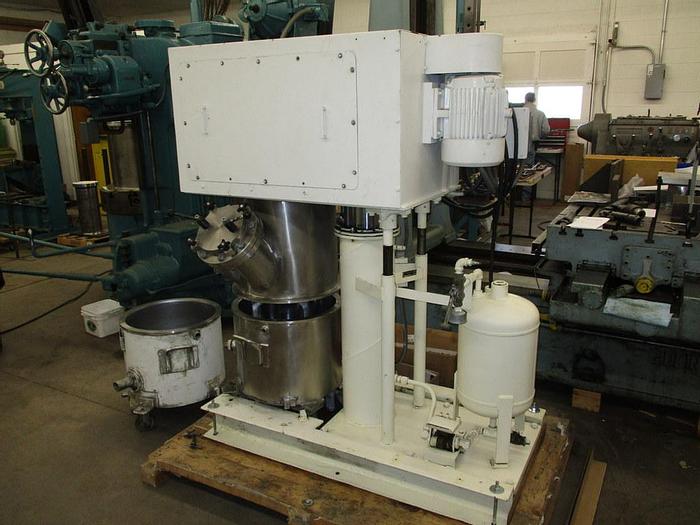

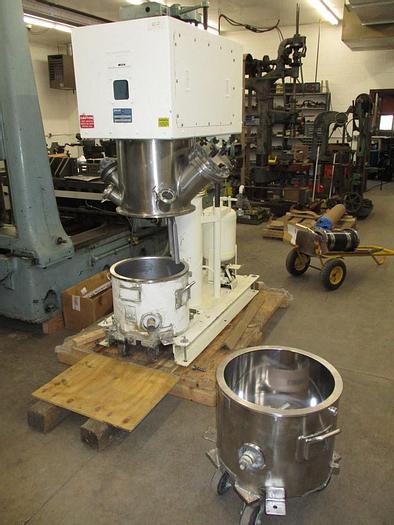

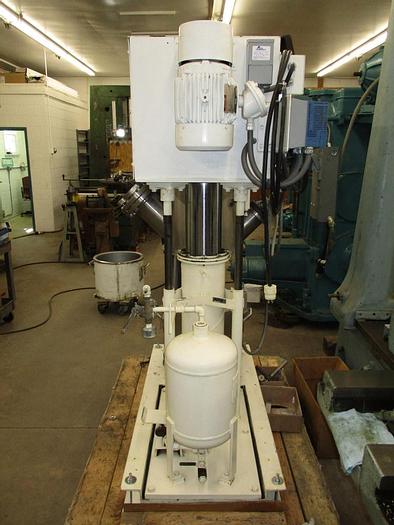

COVERING: One Ross planetary disperser mixer model PD-10, including the following features and specifications:

 The mixer is equipped with a Delroyd model HV-50 gear reducer. The gear reducer has been inspected and found to be in good mechanical condition.

 The mixer includes a 5 HP, 1,750 rpm, 230/460 volt, TEFC motor for the high speed disperser (missing shaft & blade) and a 3 HP, 1,750 rpm, 230/460 volt, XP (Class I, group D, Class II groups, F & G) motor for the planetary blade. The machine is currently wired for 460 volts, and includes two 460 volt inverters and two start/stop buttons mounted on the side of the drive bonnet.

 The planetary gearbox is carbon steel.

 The used rectangular style stirrer is type 304 stainless steel.

 Although the machine runs well and the rectangular stirrer does not hit the mix can, the stirrer shaft appears by eye to be bent. This will be checked out thoroughly, and if needed, the shaft will either be straightened or a new shaft will be made.

 The machine is set up for a high speed disperser, but the high speed disperser shaft, bearings, belt, pulleys and guard that would be mounted alongside and below the planetary gearbox are missing.


The motor, upper belt and pulleys, and vertical shaft that runs down through the center of the main shaft are present and functional.

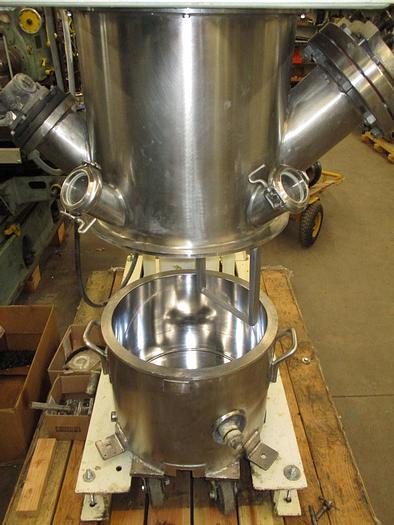

 The vacuum hood is fabricated from type 304 stainless steel. The hood includes two 3” sight ports with Cherry-Burrel connections, one 4-1/2” light port with light, one 6” flanged charge port with an easily removable cover (sealed by an O-ring), and one 1” NPT vacuum connection. New Viton O-rings will be provided to seal the hood to the drive bonnet and to the mix can.

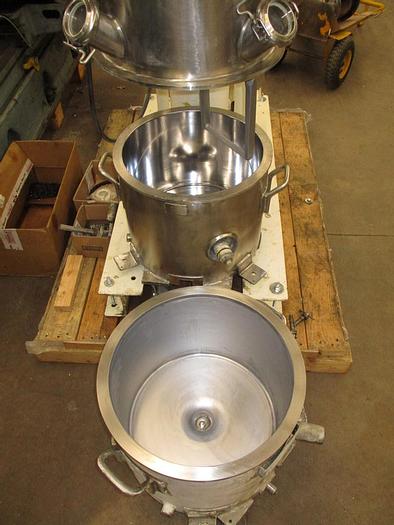

 This proposal includes one jacketed mix can with type 304 stainless steel wetted parts and a painted, carbon steel heating/cooling jacket. The mix can includes a 2” flush bottom ball valve with a Tri-Clamp connection and a sidewall mounted temperature probe (untested). Note: additional mix cans are available and will be quoted upon request.

 The mixer is raised by an air/oil hydraulic lift in good condition with new packing installed. The lift is controlled by a hand operated air valve, and a foot operated hydraulic valve.

 The machine’s base is fabricated from steel channel and is 6” high.

 The machine will not be re-painted.


PRICE F.O.B. PROMPTON, PA


 Any safety limit switches, etc. that are provided with this machine were already installed on it when we received it, and do not necessarily meet all codes and requirements. It is the end user’s responsibility to comply with any federal, state or local codes and ordinances.

WARRANTY: Machine is sold in “as-is” condition with no warranty express or implied.

Specifications

ManufacturerRoss
ModelPD-10
ConditionUsed
Stock Number9380
Size (smallest to largest)10.0
