2.3 MM BTU/HR GAUMER ELECTRIC PROCESS HOT OIL HEATING SYSTEM - MODEL GHOS-667-X
2.3 MM BTU/HR Gaumer Electric Process Hot
Oil Heating System Model GHOS-667-X: 667 KW total heating
capability. 15 watts/sq. in. Model GHOS-667-X, Gaumer Job #

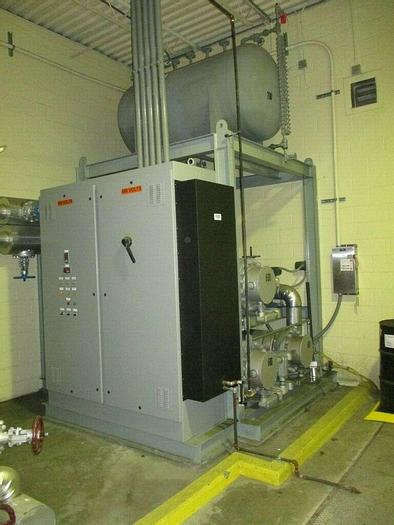

12045. Komline Sanderson PO # 41633. Skid mounted electric
hot oil system. Skid shipping dimensions are 146″ wide x 108″

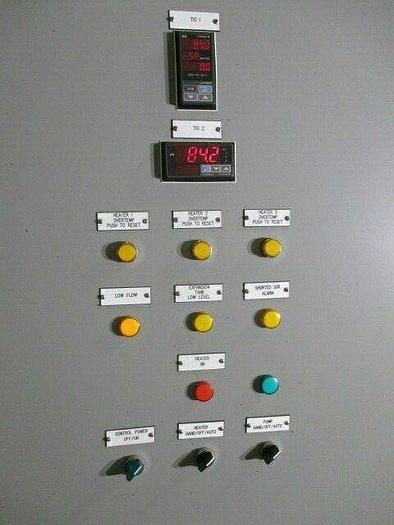

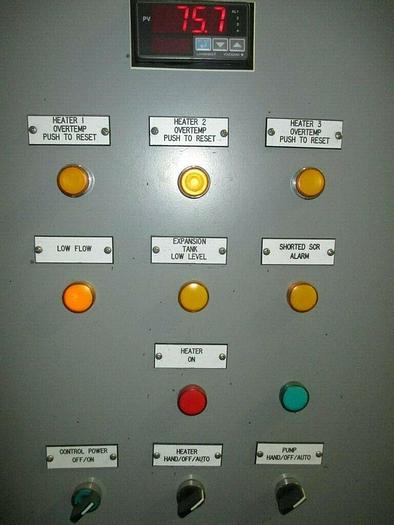

wide x 110″ high (plus lifting lugs and expansion tank). Control

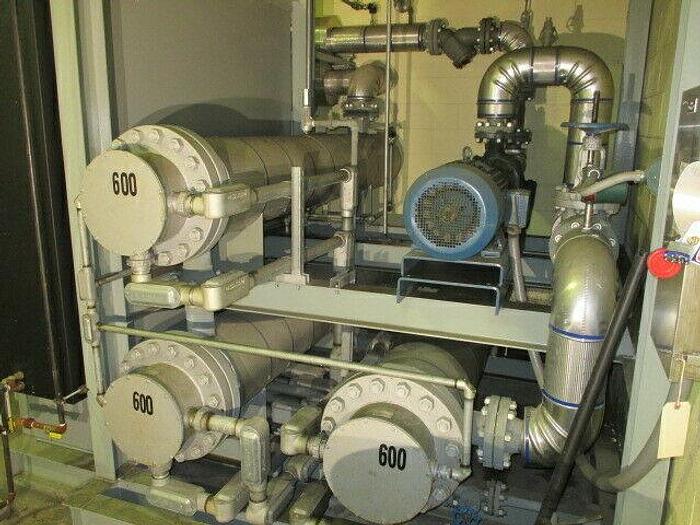

Panel # ZPA-850-18C-1M-UL. Unit has a 30 hp Vican gear pump rated at 400
gpm at 75 psig. Unit has three heat exchangers each rated for 222.2 KW
for a total of 667 kW with a design pressure rating of 300 psi at 600°F.

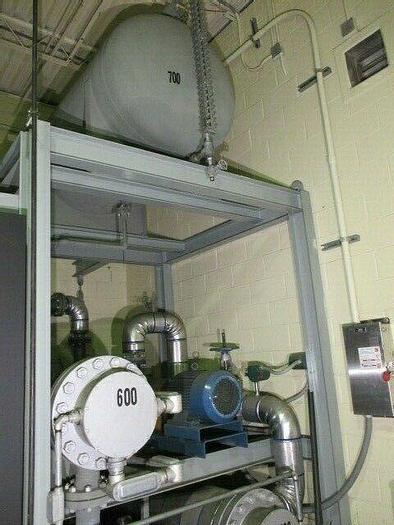

Expansion tank is 450 gallons, 42″ diameter x 60″ long rated with

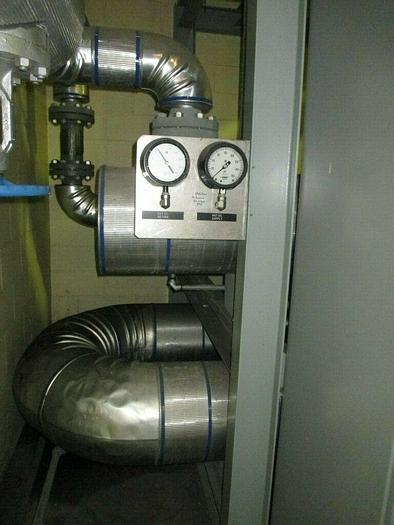

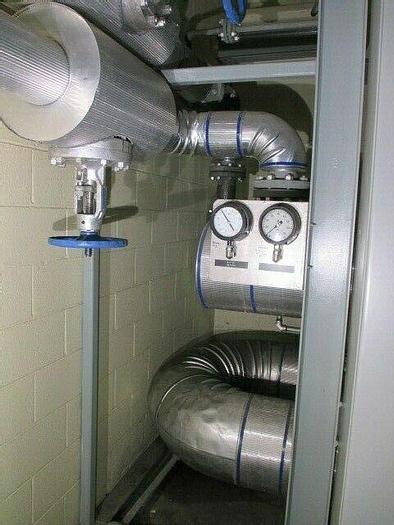

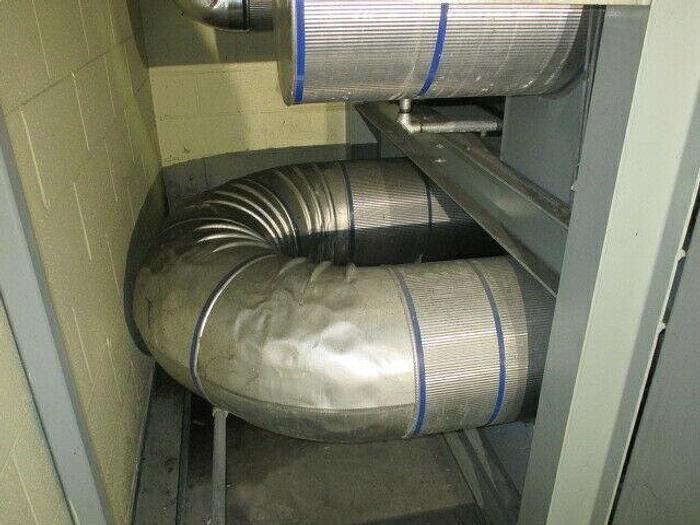

ASME stamp for 300 psi at 600°F. Piping is 4″ typical.

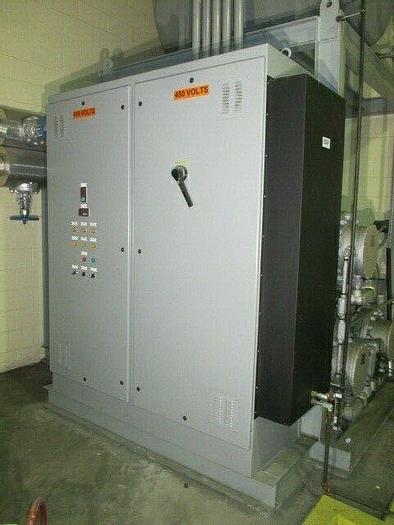

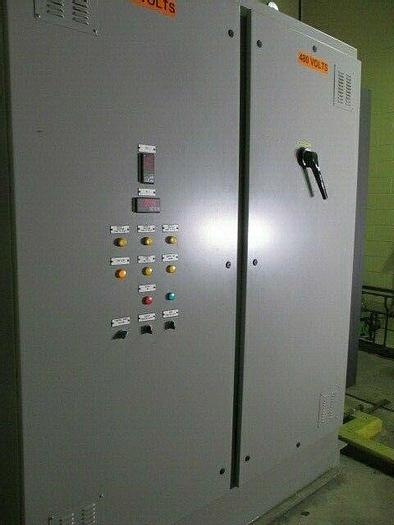

Insulation is 1.5″ calcium Silicate typical. Unit is complete skid
mounted with all electrical controls in panels mounted on the skid. Skid
weight is 13,100 pounds. Installation, operation and maintenance manual
and drawings are available.
Item is still installed indoors
|Size (smallest to largest)||2.3 MM BTU/HR|
