KOMLINE-SANDERSON KOMPRESS MODEL G-GRSL-1 - SERIES III BELT FILTER PRESS

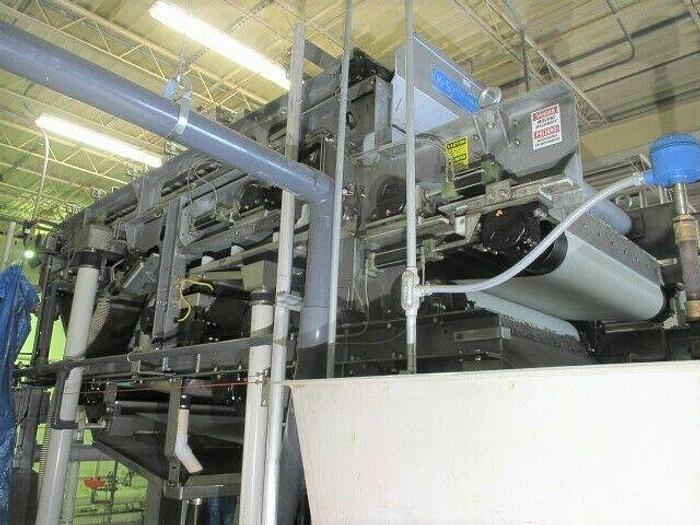

Komline Sanderson Kompress Belt Filter Press Model G-GRSL-1

Series III.. Komline Sanderson EC Job # S-3922

Active Width:  1.0 meters

Filter Belt

Width:  1.2 meters (47”)

Filtration Areas:

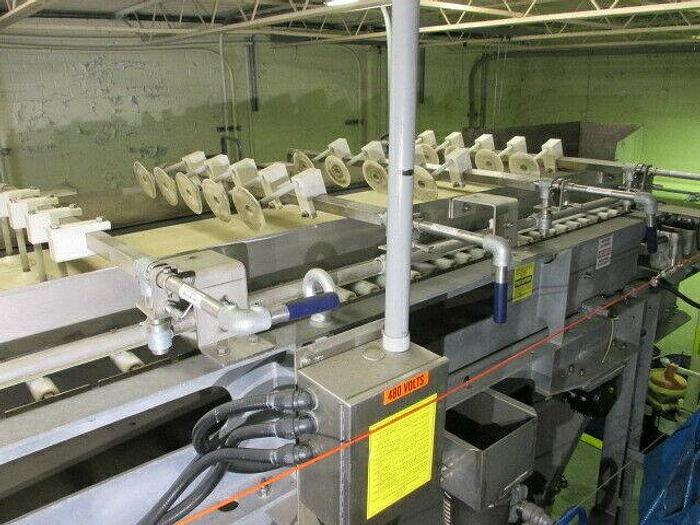

            Gravity Zone:  52 square feet

            Wedge Zone:  22 square feet

            Pressure/Shear Zone:  69 square feet

Dimensions:

            Length:  21 feet, 10 inches

            Width:  7 feet, 6 inches

            Height:  8 feet, 10 inches

Dry Weight:  16,000 pounds.

Service

Requirements:

            Washwater:  66 gpm @ 85 psi

            Electrical:  See Control Panel Specificiations

            Hydraulic:  2 gpm @ 900 psi

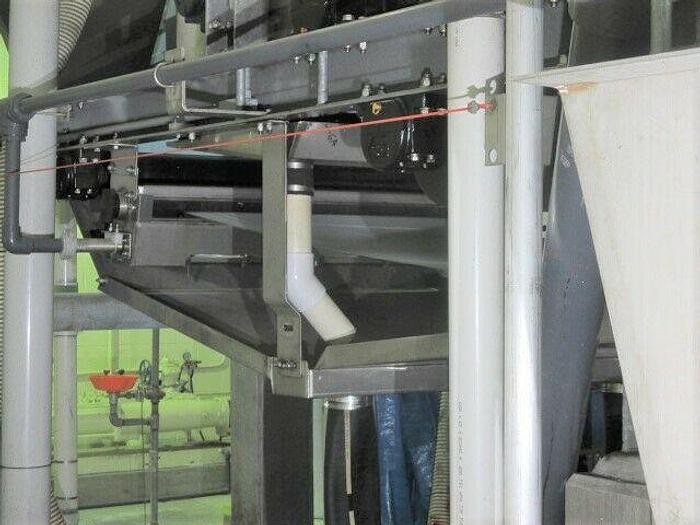

Material of

Construction, main frame:  Hot dipped

galvanized carbon steel.  Fasteners:  316 stainless steel.  Inlet Distributor, Leveling Dam, Filtrate

Collection pans:  316 stainless steel

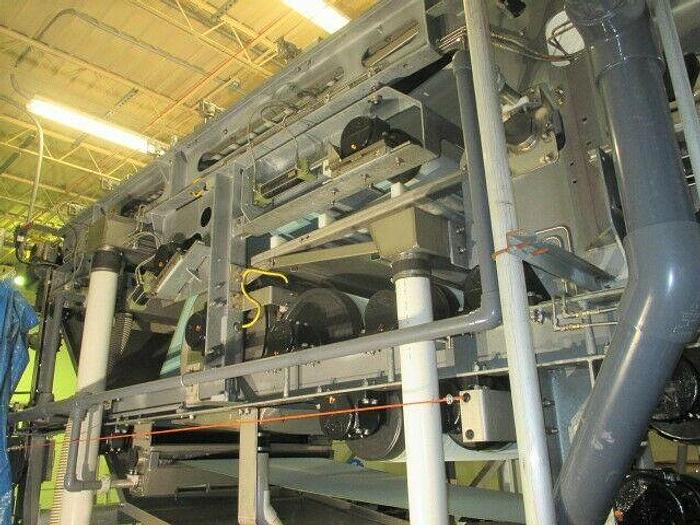

Number of Pressure

Drums:  Eight (8)

Filter Belts:  Komline Sanderson Model KS-4086, monofilament

polyester, modified satin, 391 cfm; 42.2 oz/square yard with 316 L stainless

steel clipper seam with polyurethane reinforcement.

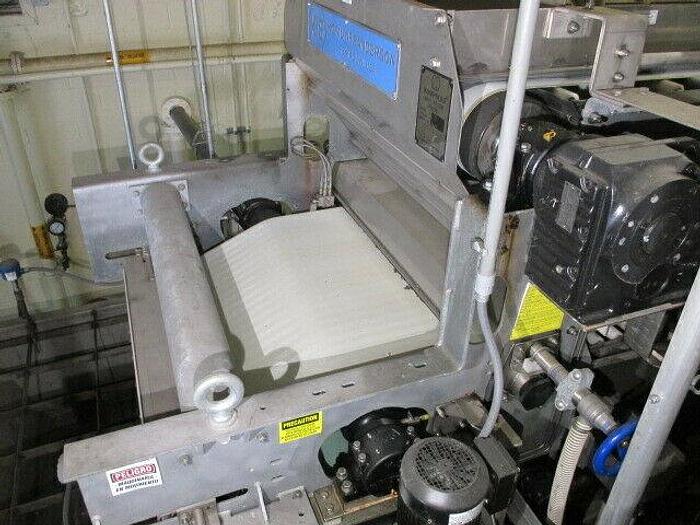

Drives:

Gravity Belt Drive Assembly:

Motor: 2 HP Eurodrive motor, 1800 rpm, 3/60/460 TEFC severe duty

Reducer:  Eurodrive, Model KA 87 AGMA Class II, 85.65:1.0 ratio; 8.4 HP input

rating;  18,000 inch-lbs output rating.

Gravity Belt Speed:  5-50 fpm.

Pressure Belt Drive Assembly:

Motor: 2 HP Eurodrive motor, 1800 rpm, 3/60/460 TEFC severe duty

Reducer:  Eurodrive, Model KA 87 R57, AGMA Class II, 236:1.0 ratio; 2.0

HP input rating;  23,900 inch-lbs output rating.

Gravity Belt Speed:  2-20 fpm.

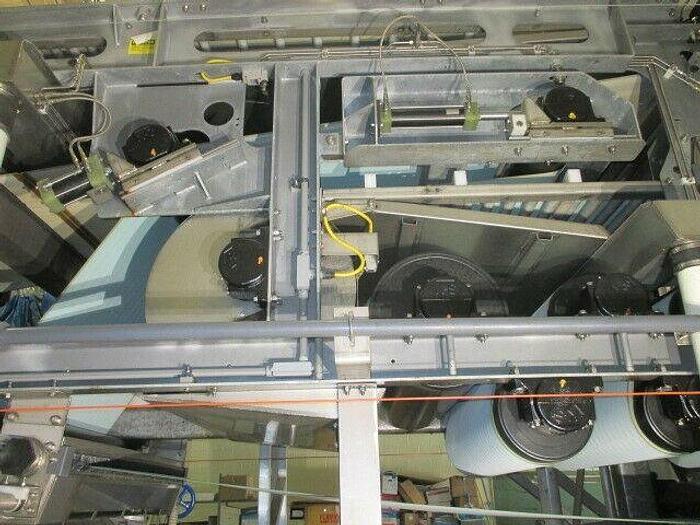

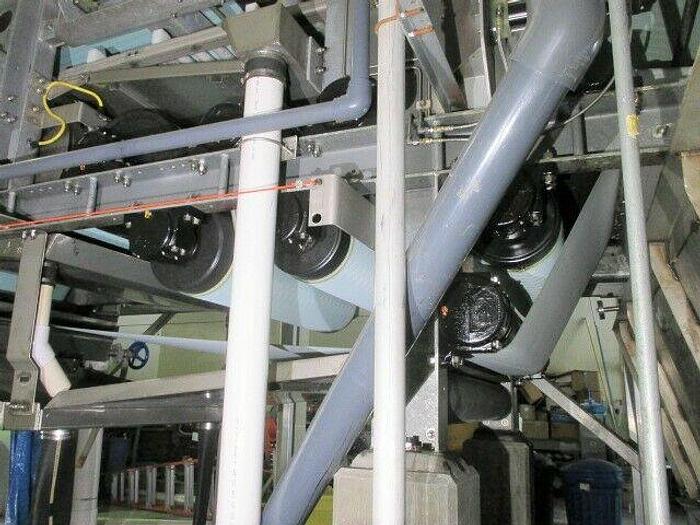

Dewatering Drums and

Rollers:  316 stainless steel perforated dewatering drum, 30 inch diameter.  See

complete 22 page Specifications for more complete details of all the drums and

rollers

Hydraulic Power Unit – (filter press mounted):  Nachi variable

volume, pressure compensated pump set at 2.5 gpm, 900 psi.  Motor is Baldor 1.5 HP, 1800 rpm, TENV 1.15

service factor, 3/60/230/460 washdown duty. Reservoir is 316 stainless steel, 5 gallon capacity, factory mounted on

press.  All system interconnecting tubing and fittings are factory furnished and installed using 3/8” O.D. 316 stainless

steel tubing.

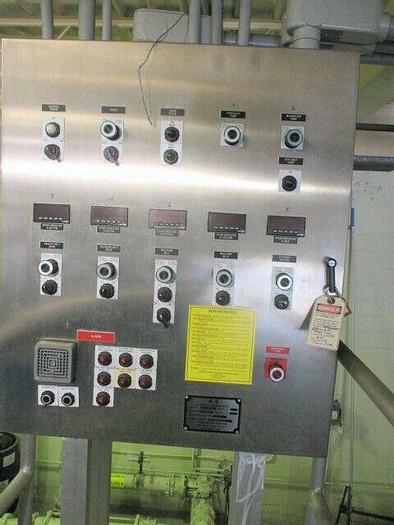

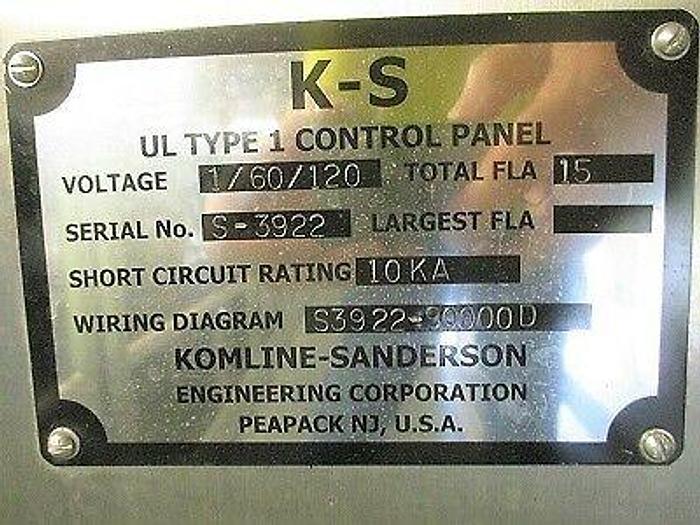

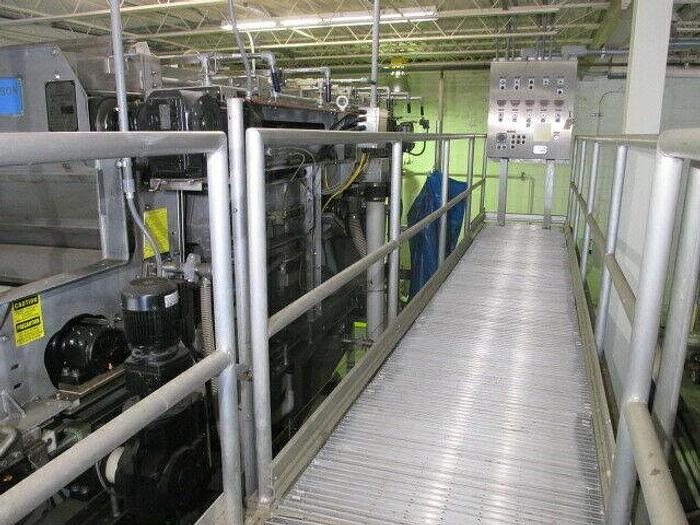

Control Panel:  NEMA 4 X stainless steel.  36” wide x 42” tall x 12” deep. Drawing Number

S3922-90001D.  Panel shows control power; cycle; wash cycle; hydraulic pump; washwater pump; gravity belt drive; pressure belt drive; was pump 1 and 2; polymer system; alarm; emergency stop; speed indicator

0-50 fpm; speed indicator 0-20 fpm; flow indicator 0-250 gpm; speed indicator 0-100%; effluent pump. Also contains Moxa EtherDevice Switch EDS-205 Industrial five port unmanaged ethernet switch.  All switches and pilot lights are of a Square D corrosion resistant design.

Drawings and Manuals: Equipment comes complete with two sets of manuals and all drawings of components, flowsheets, equipment layout.  Dismantling and loading will be additional cost.  We encourage the buyer to hire their own contractor for match marking, dismantling, and loading of the equipment to facilitate ease of installing at the new location. Other items on this project may still be available at time of sale ( at additional cost) such as filter feed pumps, filter cake discharge hopper, discharge filter cake Moyno pump, etc)
