YXLON CHEETAH EVO PLUS SCALABLE X-RAY INSPECTION SYSTEM

CHEETAH EVO PLUS SCALABLE X-RAY INSPECTION SYSTEM FOR LABORATORY APPLICATIONS

100% 16 bit digital systems with real time image processing.

• Graphic user interface featuring EZ-Screen.

• OEM micro-focus and multi-focus tubes with closed loop control feedback at the source.

• High wattage targets for reduced noise and increased penetration at the source.

• OEM generators featuring +/- 1% power fluctuation, tightest specification on the market.

• CT leadership position capable of 3D data sets inside 3 minutes.

• Equipped to upgrade to Quick Scan μCT

factory direct support team in North America.

STANDARD TECHNICAL DATA

§ Complete X-ray protection cabinet with large automated door

§ Open and demountable microfocus X-ray tube with transmission target (Y.FXE.160.50)

§ Detail detectability <1 μm (<0.4μm with option Multifocus X-ray tube)

§ 25 – 160kV, 0,01 – 1mA, 10W Target power (15W by option High Power Target)

§ True-X-ray Intensity Control (TXI) for steady long-term X-ray intensity

§ High resolution digital flat-panel detectorY.Panel 1308 High Speed with 1004 x 615 pixels at 127μm pixel size, frame rate max. 30 frames/second, field of view 127 x 78mm

§ 5-axis (X, Y, Ztube (motorized), ZDetector (motorized), TiltDetector (motorized)) manipulation system

§ +/- 70° oblique viewing by tilting the detector

§ Min. focus-object-distance (FOD): 0.25mm

§ Min. focus-detector-distance (FDD): 50mm

§ Max. geometric / total. magnification approx. 2.000x / 17.000x ( 3000x/25.500x by option Y.μDR High Resolution Module)

§ Max. sample size: 800mm x 500mm (31” x 19”)

§ Max. inspection area: 460mm x 410mm (18” x 16”)

§ Max. sample weight: 5kg (2kg in optional rotational axis)

§ 16-Bit real time image processing software Y.FGUI Basic offering functions like contrast enhancement, image sharpening, edge extraction, measurement, report functions, measurement of THT joins and many more …

§ Integrated X-ray controller PC with operating system Windows 7 and Ethernet: § RAM: 4 GB (Kit of 2 x GB)

§ Hard drive: 1 TB

§ USB: 14 x USB 2.0, 2 x USB 3.0

§ Monitor: 24 in.

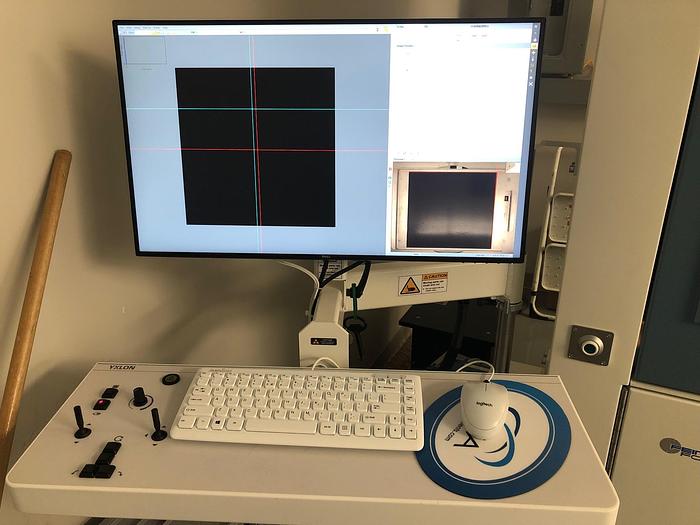

§ Ergonomic and adjustable operator console

§ Advanced Safety Concept (ASC) for more safety at the work place

§ Maintenance and spare part kit, detailed operating and service documentation

§ Size: L 1650 mm x W 1400mm x H 1850mm / Weight: approx. 2200 kg
