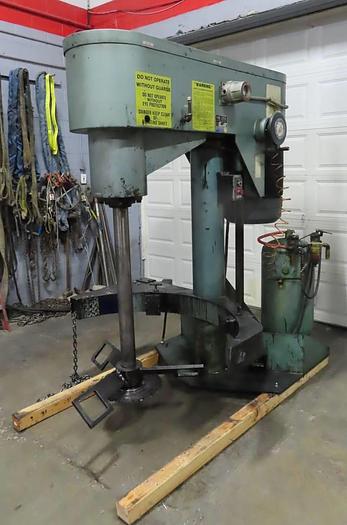

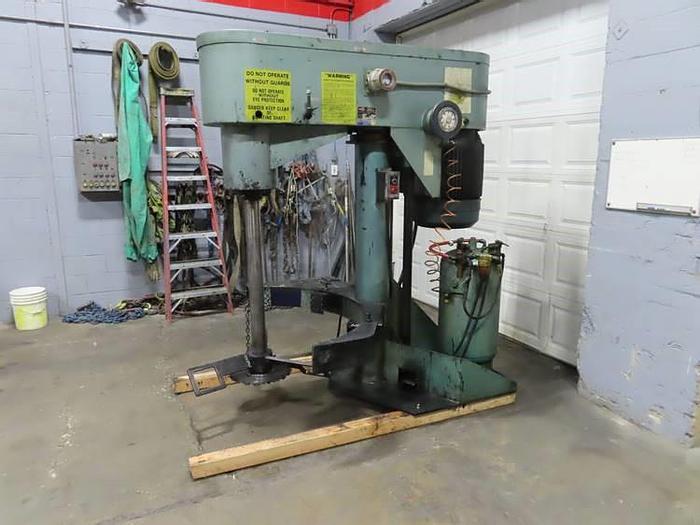

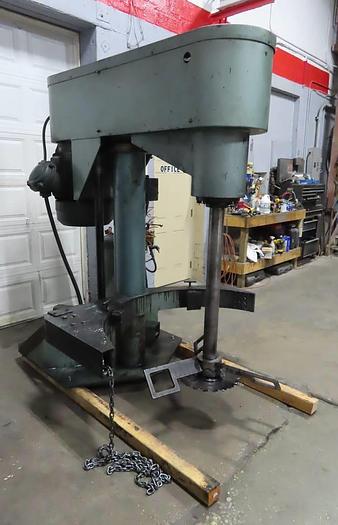

60 HP SCHOLD CO-AXIAL HIGH SPEED DISPERSER WITH SLOW SPEED SWEEP

Sold

Description

1 - used 60 hp Schold High Speed Dipserser with Co-axial shaft.

High speed blade and slow speed sweep

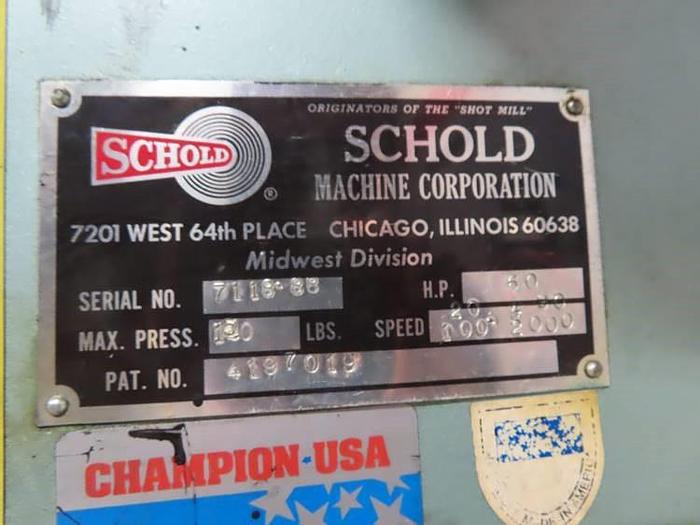

Serial number 7118-88

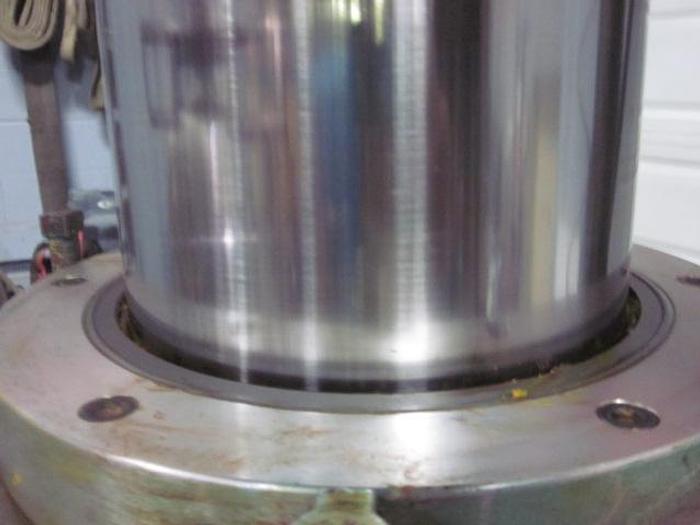

3.5" diameter shaft x 44" long shaft.

Shaft looks like it could be stainless but is magnetic,

as well as the blades.

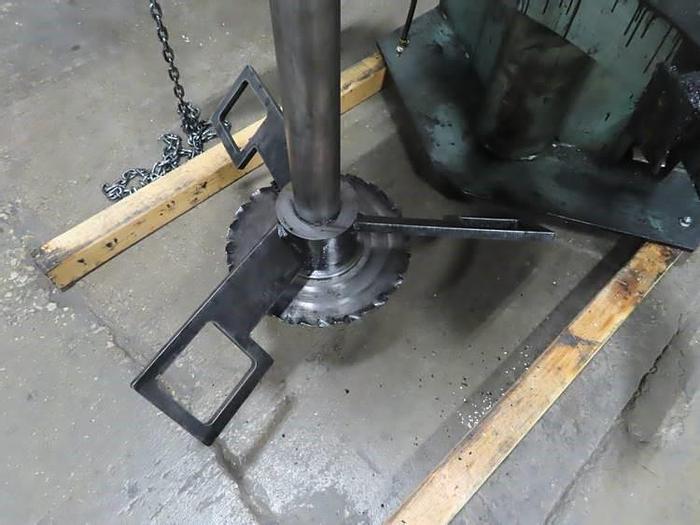

16" diamter high speed blade, 36" slow speed.

Mechanical variable speed

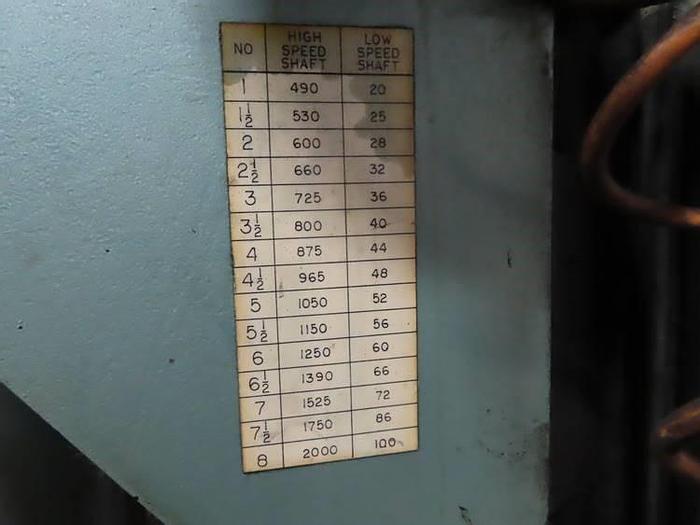

High speed 100-2000 rpm, Slow speed 20-490

Floor mount, air over oil lift.

Tank holder with chain.

Equipped with Amp meter and start stop button

Overall height in down position is 89".

Bottom of shaft to floor is 6.75"

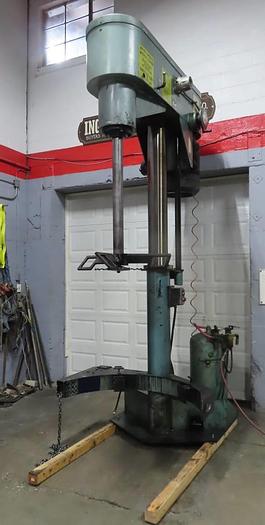

Overall in the up position is 12' 1.5"

Blade to floor in the up position is 64"

Approx. 26.5” from the tank holder to the center of shaft.

Approx. 27.5” from column to center of shaft

60 hp motor, 3 phase,  230/460 voltage. UL tagged motor.

Unit will be test run in our shop and video will be available.



Equipped with a size 3 motor starter in an enclosure.

Weight of unit:  4,400 lbs.


F.O.B. - LOCATION

Specifications

ManufacturerSchold
ConditionUsed
Stock Number10060
Size (smallest to largest)60.0
