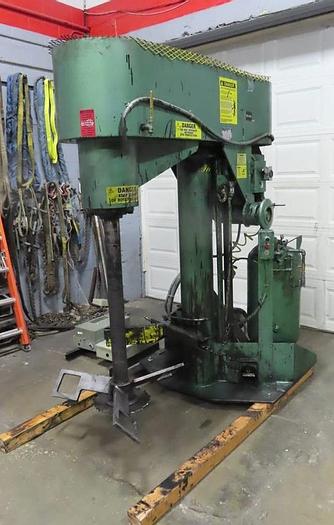

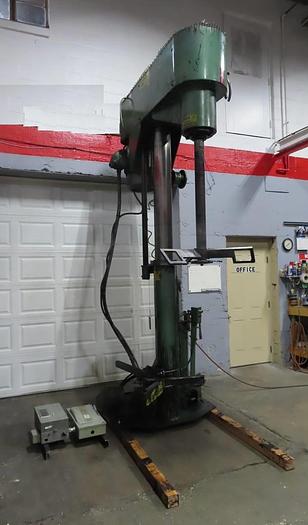

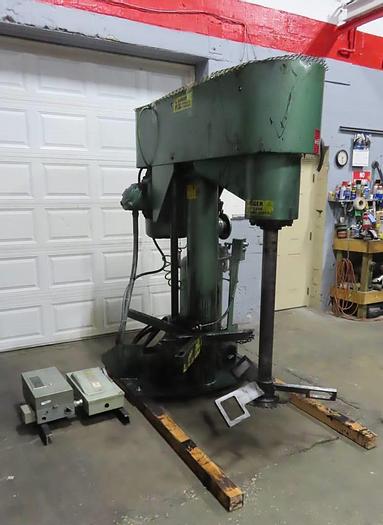

50 HP SCHOLD CO-AXIAL HIGH SPEED DISPERSER WITH SLOW SPEED SWEEP

orCall 216-831-8485

Description

1 - used 50 hp Schold Co-axial Disperser

High Speed blade and a slow speed sweep blade.

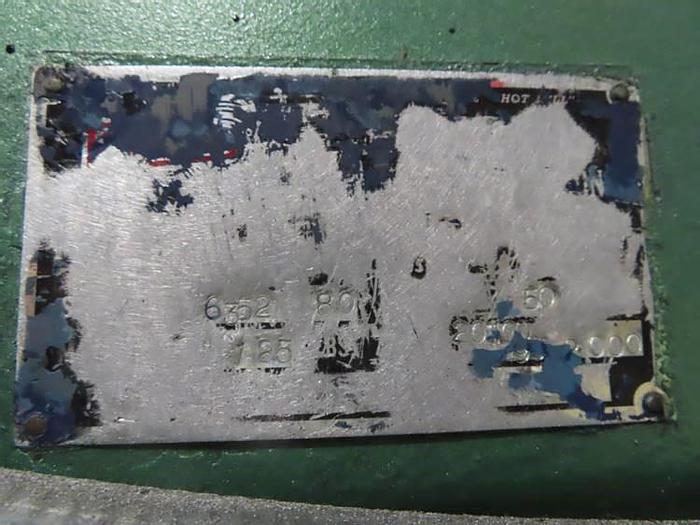

Serial number 6352-80

3.5" diamter shaft x 44" long shaft.

Shaft looks like it could be stainless but is magnetic.

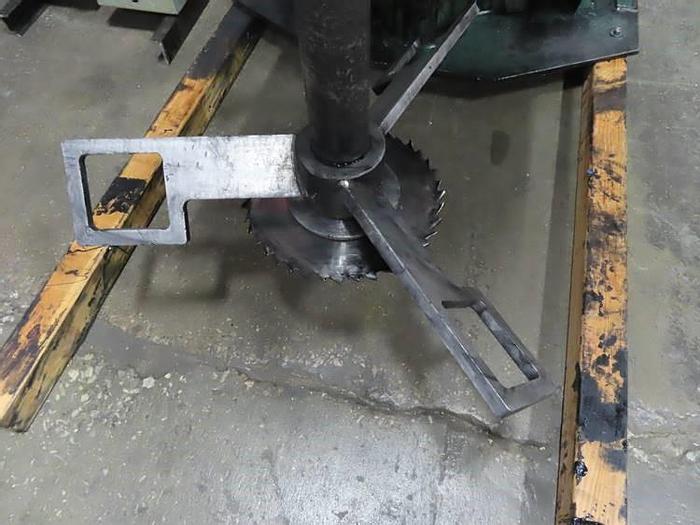

14" diameter high speed blade, 36" slow speed sweep.

Mechanical variable speed.

High speed 100-2000 rpm, Slow speed 20-490 rpm.

Floor mount, air over oil lift.

Tank holder with chain.

Overall height in down position:  88"

Bottom of shaft to floor:  7"

50 hp motor, 3 phase, 230/460 voltage.  UL tagged motor.

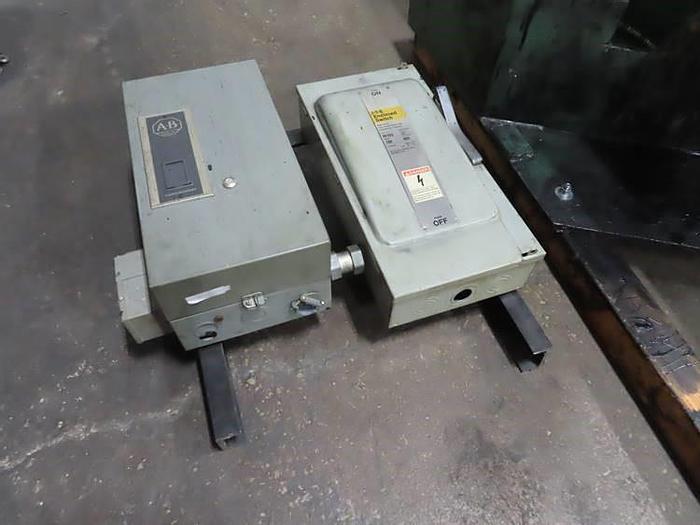

Equipped with a disconnect and a Size 3 motor starter.

Unit weighs:  4,100 lbs.

F.O.B. - LOCATION






Specifications

ManufacturerSchold
ConditionUsed
Serial Number6352-80
Stock Number10061
Size (smallest to largest)50.0
