1,500 GALLON WALKER TANK - S/S - 50/FV/75 PSI

orCall 216-831-8485

Description

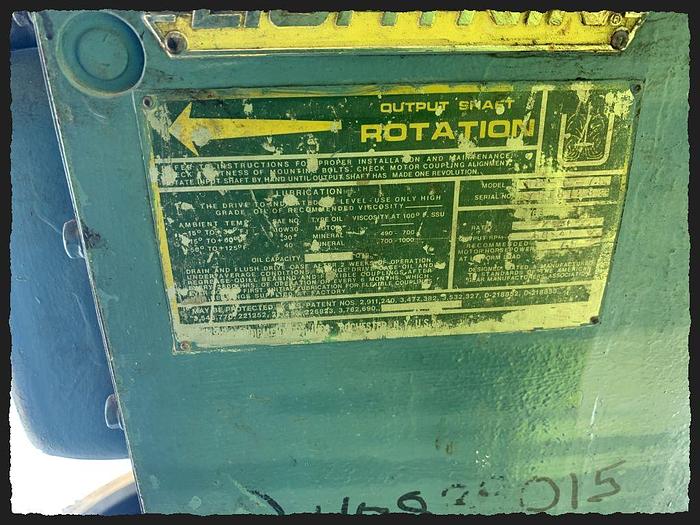

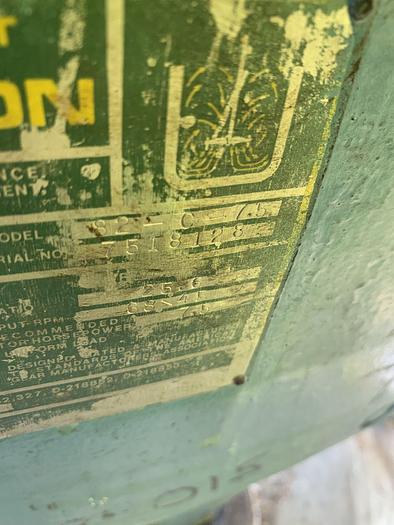

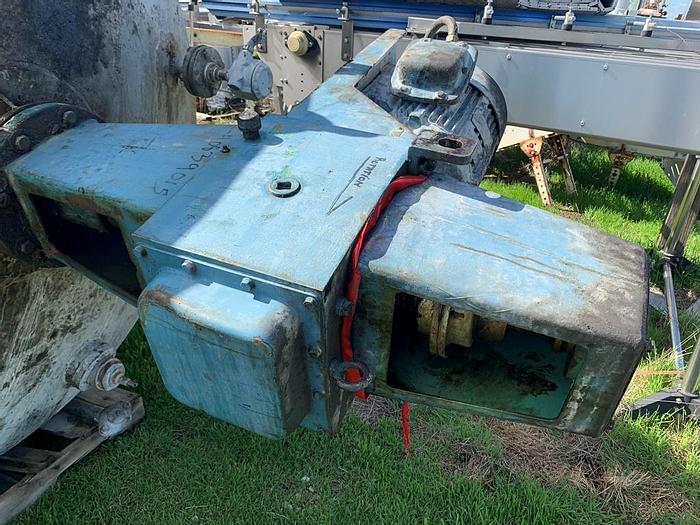

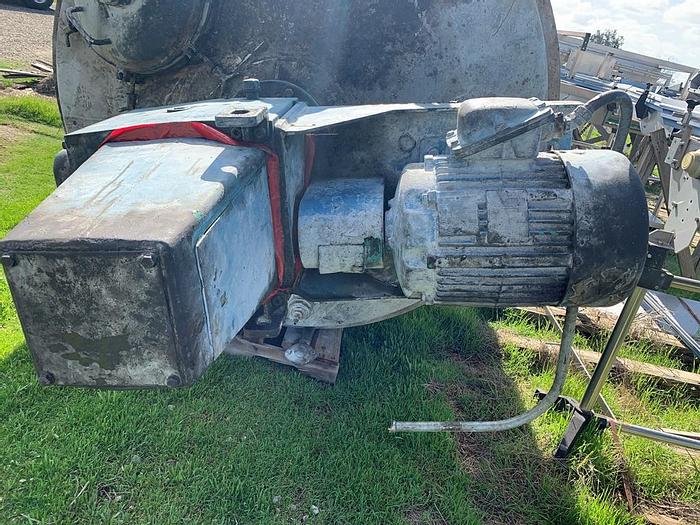

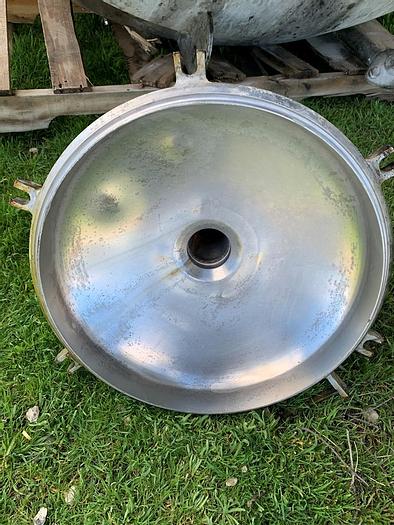

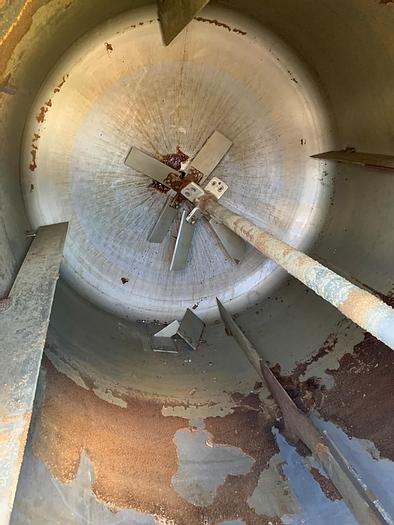

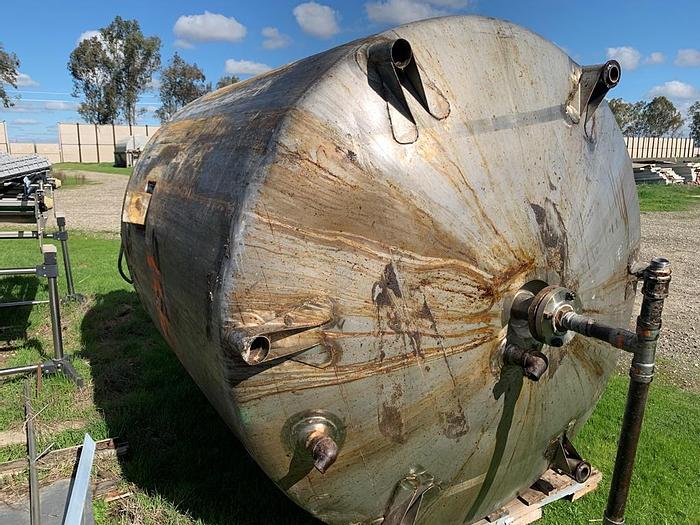

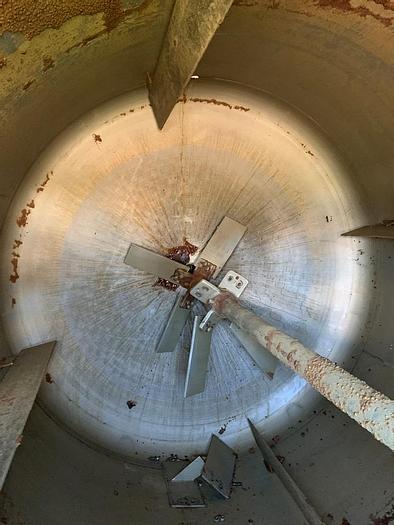

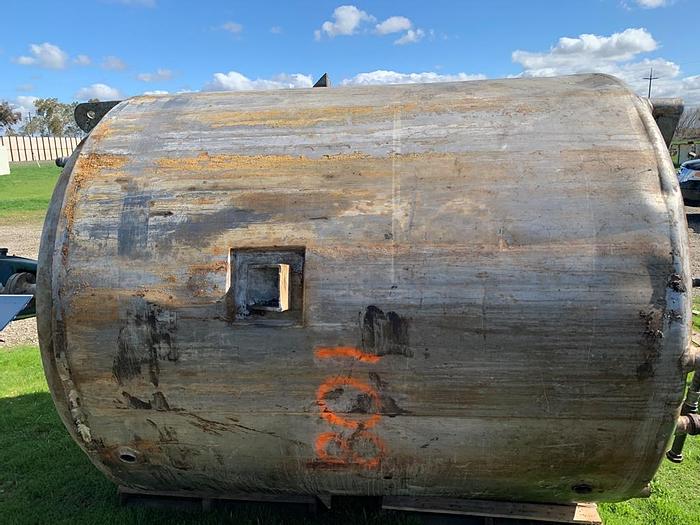

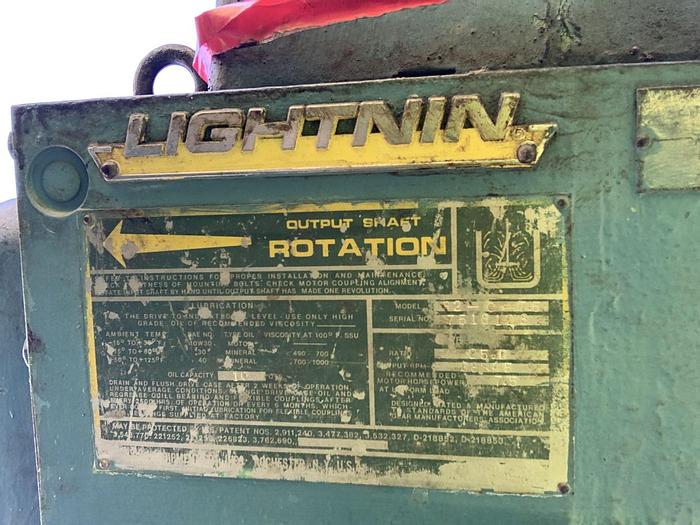

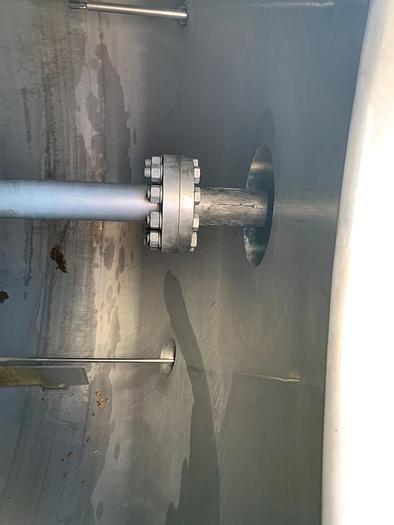

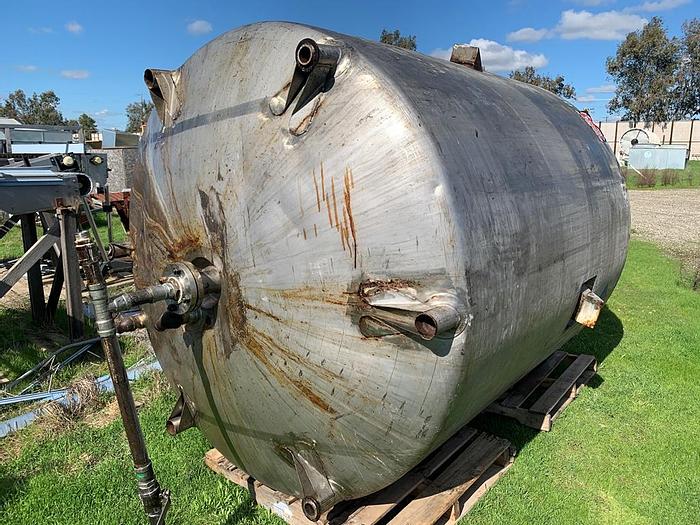

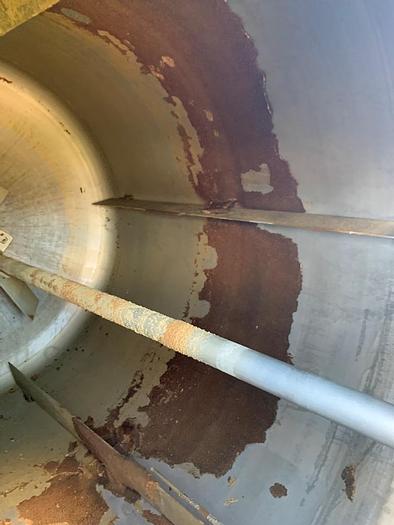

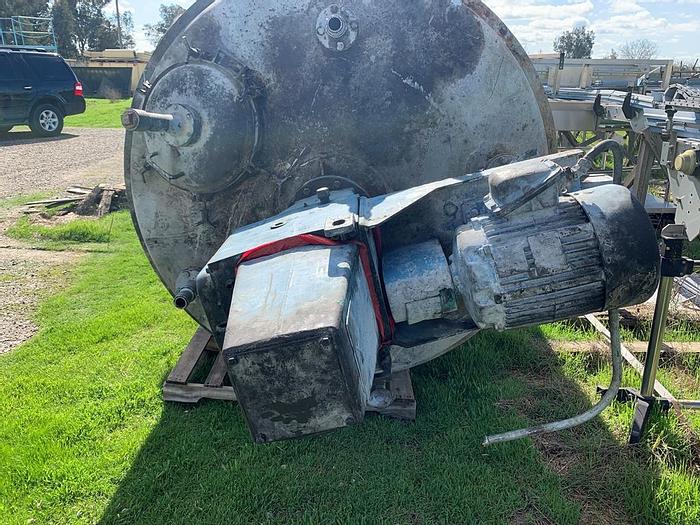

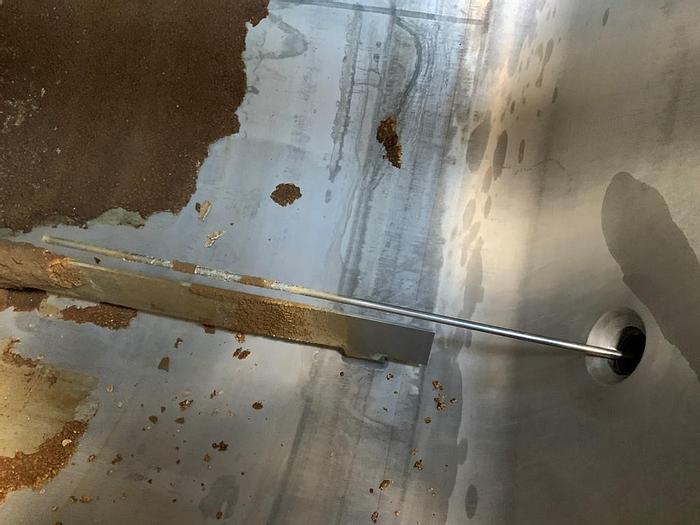

1 - used 1,500 gallon Walker stainless steel jacketed tank. T-316 stainless steel. Measures 6 ft. dia. x 7 ft. straight side with dish top and bottom. 3 in. dia. center bottom outlet. Complete with Lightnin Model 82-C-7.5 center top agitation mounted to 8” flange, driven by 7-1/2 HP motor thru 25.6:1 ratio gearbox, 68/45 output RPM. Top head includes 18” diameter manway with clamped manway door, 8” center top opening, 3” and (3) 2” openings. Bottom head includes 3” center bottom outlet and (2) 2” openings. Vessel was previously lug mounted and includes (6) threaded ports for

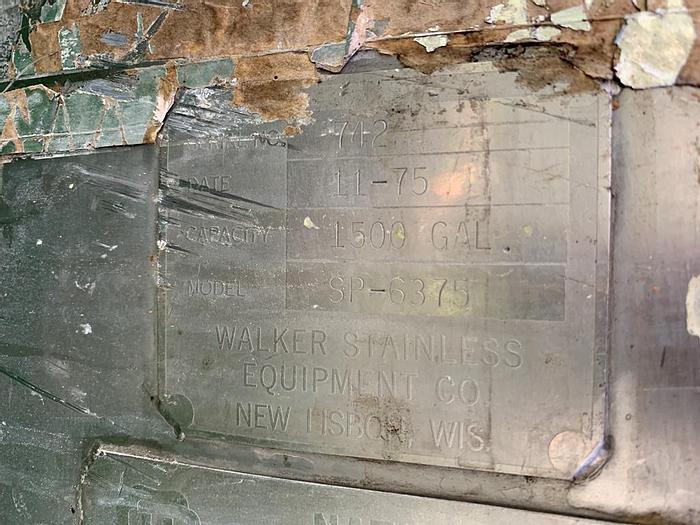

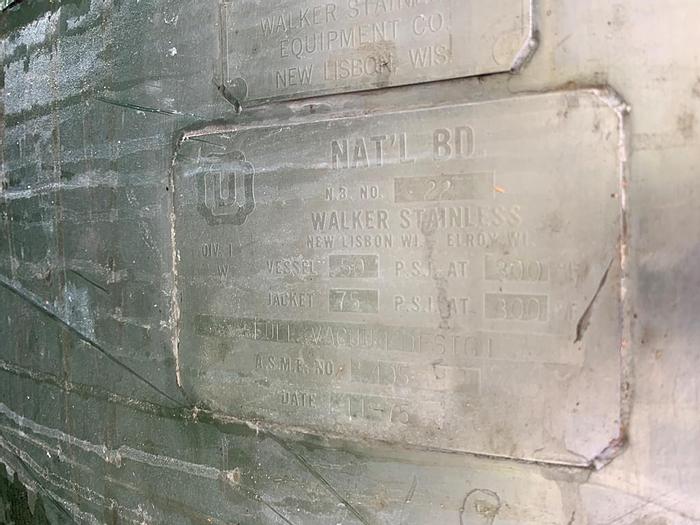

screw-in legs. Manufactured by Walker Stainless, vessel rated for Full Vacuum to 50 PSI internal at 300 degrees Fahrenheit, jacketed for 75 PSI at 300 degrees Fahrenheit, ASME code constructed. NB#22, Serial number 742. Previously used at biofuel facility.


F.O.B. - LOCATION










Specifications

ManufacturerWalker
ConditionUsed
Stock Number10081
Size (smallest to largest)1500.0
