12" x 20' SINGLE DENVER SINGLE SCREW HOLOFLITE DRYER - C/S - WATER OR OIL

orCall 216-409-1394

Description

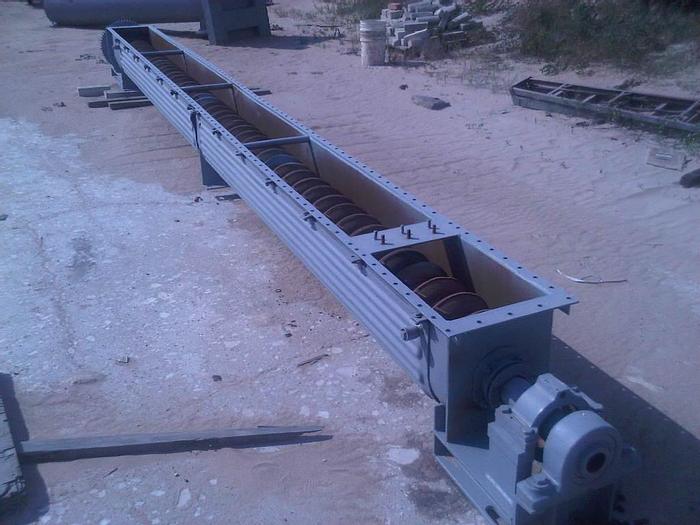

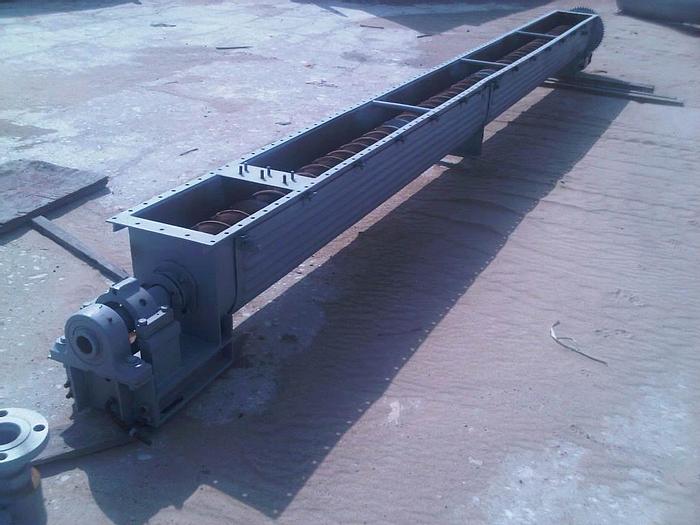

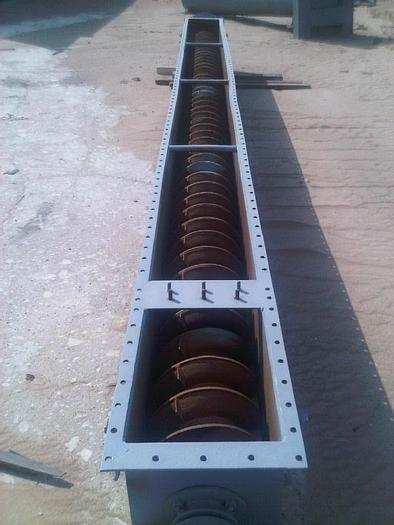

12" x 20' DENVER-JOY Single Screw Holoflite Dryer - Carbon Steel - For Water or Oil

MFD.BY: Denver-Joy/Western Precipitation

DATE MFD: 1970 approx.

TYPE: Holoflite Dryer/ processor.

MODEL: Mdl. 69467-L, Type S1220-5

NUMBER SCREW: 1 DIAMETER-SCREW(S): 12''

LENGTH-SCREW: 20'

MAT'L CONSTRN-SCREW): Carbon Steel

MAT'L CONSTRN-TROUGH: Carbon Steel

MAT'L CONSTRN-JACKET: Carbon Steel

JACKET: Plate coil attached to trough.

PRESSURE-SCREW(S): 100 psig @ 500 Deg F

PRESSURE-TROUGH: 2in Hg.Vac. @ 291 Deg F. No top cover.

PRESSURE-JACKET: 100 psig @ 500 Deg F

FLUID MEDIUM: Liquid heat or cool

DRIVEN BY: 2hp approx. No drive.

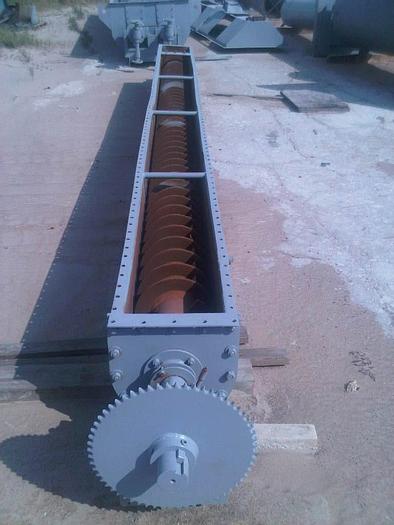

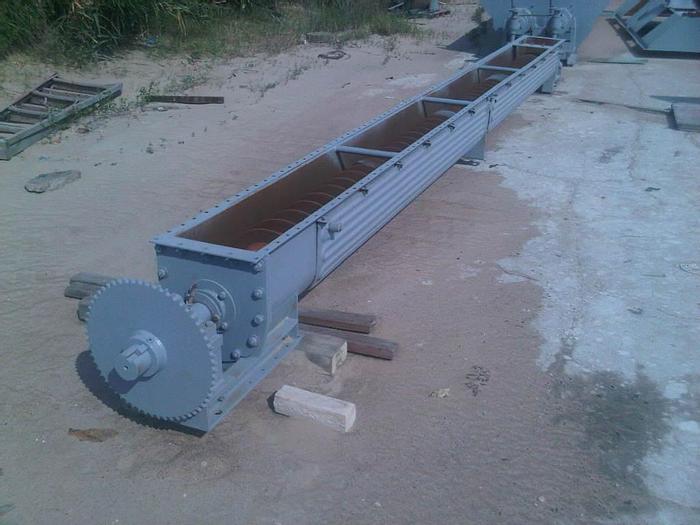

DRIVEN VIA: 16" drive sprocket on 3½" drive shaft.

RPM-SCREW(S): Variable 0-30 rpm typical. 1rpm = 10CFH approx.

PRIOR SVC: Cooling probably, water residue on stem pipe. Est 100-1000PPH wet feed.

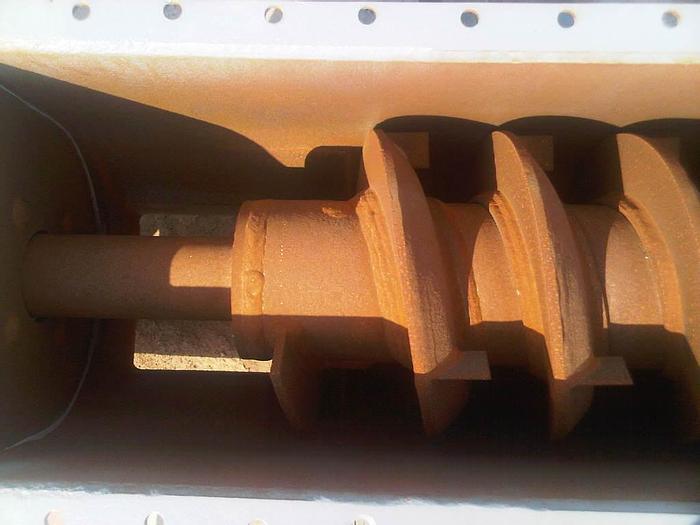

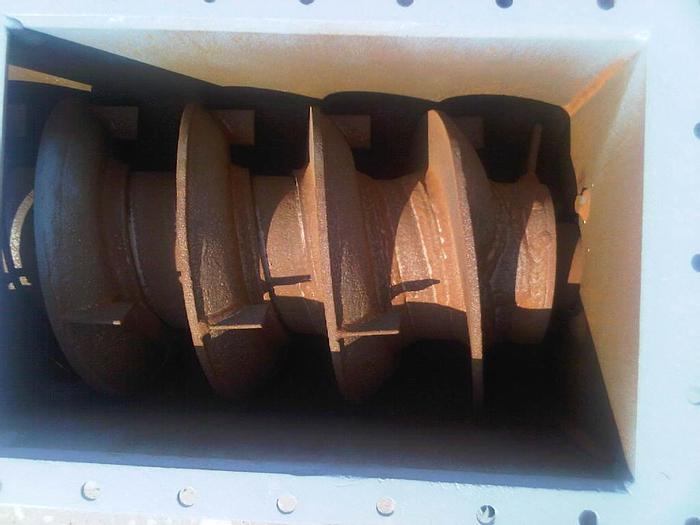

COMMENTS: 5" pitch flites. No cover. Panel jacket attached to trough of conveyor.Cooler. Capacity varies dependent on RPM, product type, moisture content/evaporation rate/temp. Heat Load approx 360,000Btu/Hr. Screw ~60SF area. Jkt ~30SF.

SHIPPING SIZE-W X H X L: 2'W X 2'H X 24'L

APPROX. WEIGHT-LBS: 6000#

FOB - LOCATION

Specifications

ManufacturerDenver
Model69467-L, Type S1220-5
ConditionUsed
Stock Number10087
Size (smallest to largest)12" X 20'
