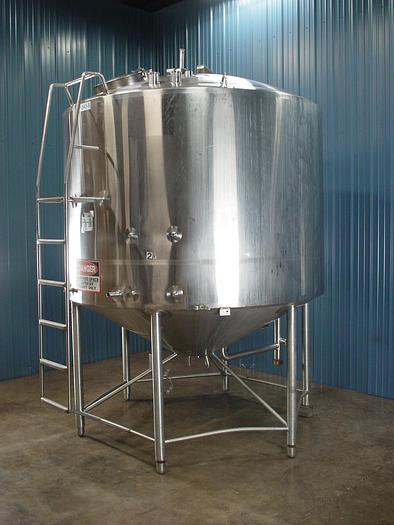

1500 GALLON WALKER DOME TOP CONE BOTTOM PROCESSOR - S/S - JACKETED

Description

1,500 gallon Walker Dome Top Cone Bottom Jacketed Pressure Wall Processor

  • 3/1.5 HP 3/60/230V, Two speed wide and side sweep agitation with scraper blades.
  • Full sidewall and bottom head 75 psi ASME jacket. Three zones.
  • With internal zone control manifold.
  • Spray ball.
  • 2 1/2" clamp outlet.
  • Unit is being offered reconditioned at the price quoted, approx. 8-10 week lead time
  • 90" dia. (add 13" for ladder) x 137" overall height
  • As-Is offers will be considered
  • F.O.B. - LOCATION



Reconditioning of processing tank includes stripping and prime painting of painted surfaces, pressure testing of heat transfer surface, flooded water testing of atmospheric vessels, complete teardown and repair of agitator drive systems, elastomer/seal replacement, cosmetic polishing as necessary of stainless steel surfaces, rebuilding of outlet valves, and loosening of all adjustable legs. Loading on a flatbed carrier is included in the purchase price.

Specifications

ManufacturerWALKER
ModelPZ-CB
ConditionUsed
Serial Number1704
Stock Number10098
Size (smallest to largest)1500.0
