1500 GALLON VERTICAL STAINLESS STEEL JACKETED MIX TANK

orCall 216-831-8485

Description

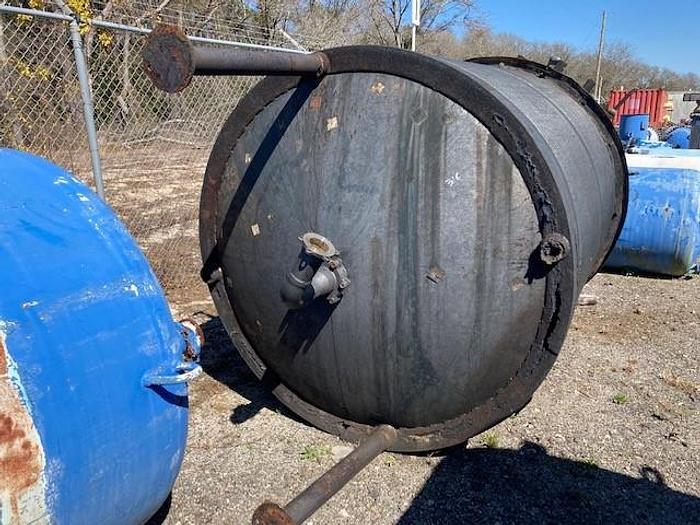

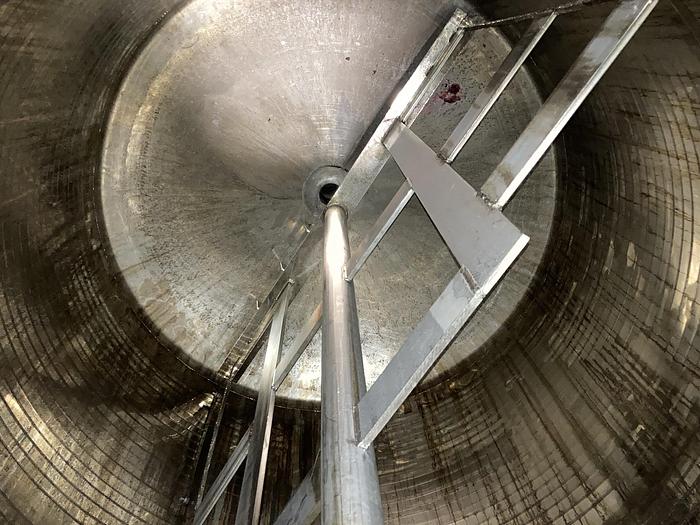

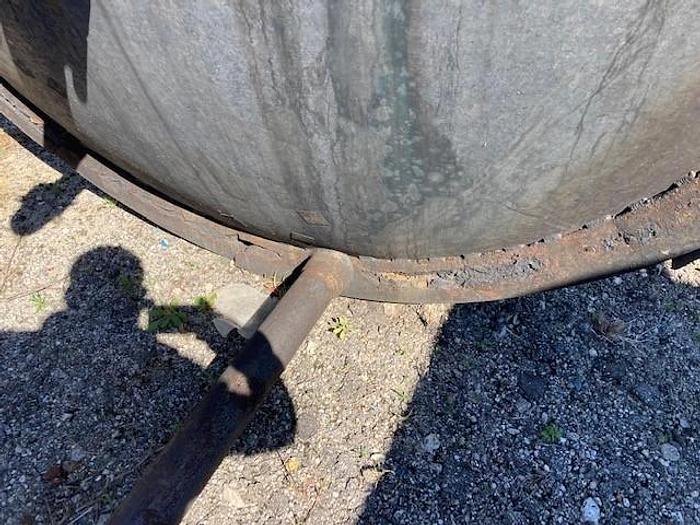

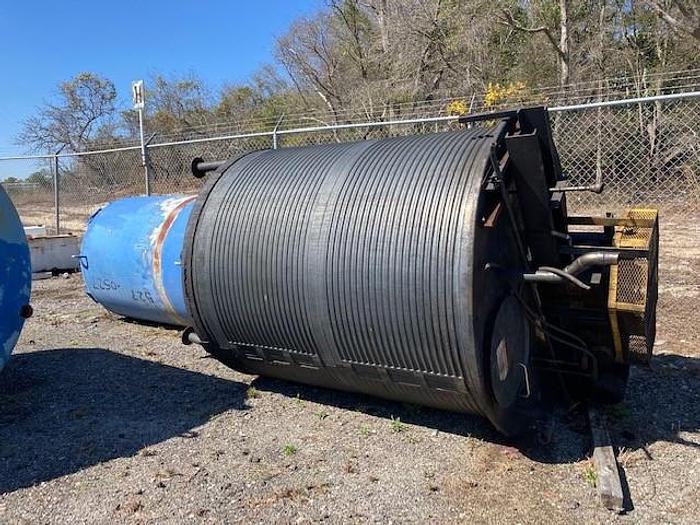

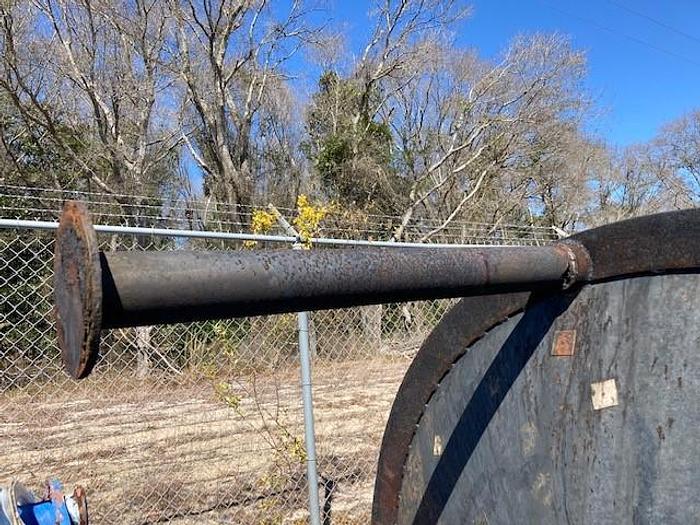

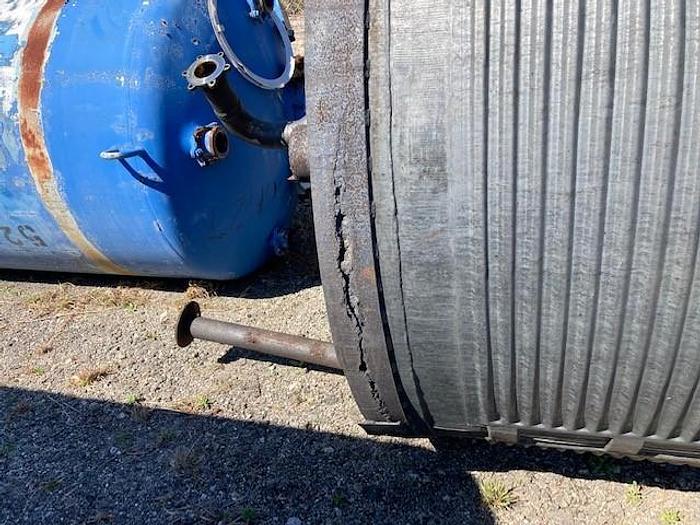

1 - Used approximately 1,500 gallon vertical T-316 stainless steel jacketed mix tank.  6' diameter X 7' high straight side.  Flat top, dished bottom.  Top fittings: 24" manway, (1) 2" and (1) 6".  4" center bottom drain.  Equipped with anchor style agitator that runs up the side of tank from top to bottom.  Has side wall panel-coil jacket.   Originally mounted on (4) carbon steel legs which have rotted due to the prior use (cobalt acetate). Tank is in good condition, legs need to be replaced. With legs, overall height is 12'11". There is 27" clearance from bottom flange face to bottom pad of leg.  FOB - LOCATION


Specifications

ConditionUsed
Stock Number10154
Size (smallest to largest)1500.00
