1,000 GALLON LEE KETTLE - S/S - 40 PSI JACKET (WITH NEW AGITATION OPTIONS)

orCall 216-409-1394

Description

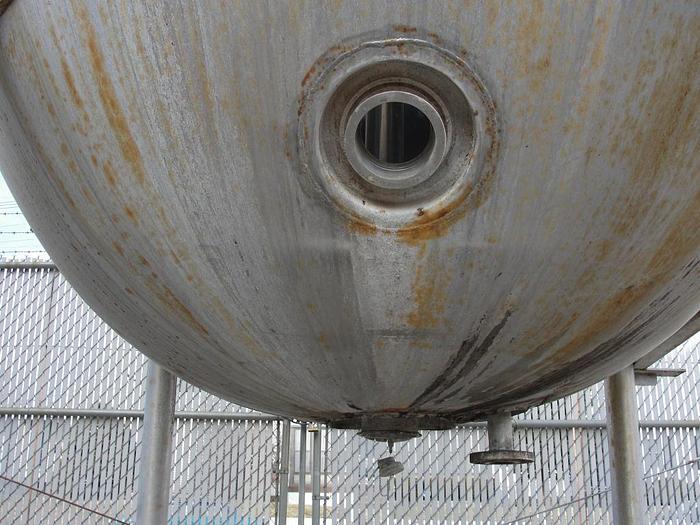

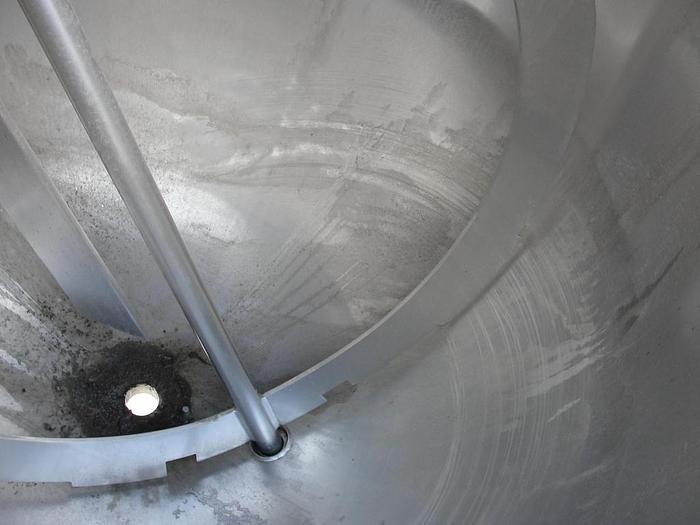

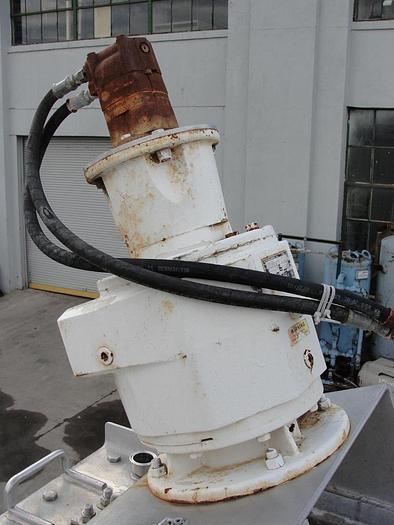

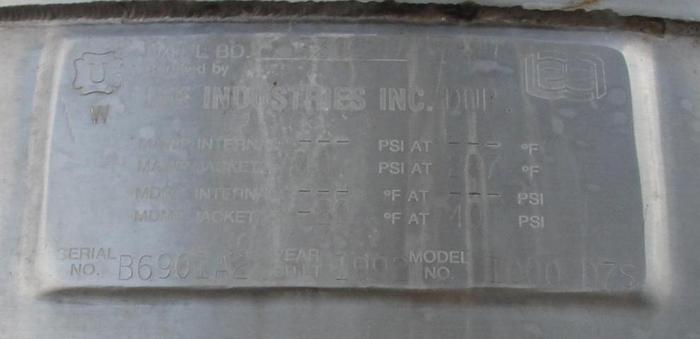

1 - used 1,000 gallon Lee Stainless Steel Kettle. National Board code stamped. Top of kettle is single walled and the bottom is jacketed. Jacket rated for 40 psi @ 287 deg. F. Entire unit has a stainless steel outer covering. Kettle has a hemispherical bottom with anchor style sweep agitator and baffles for increased agitation. As it is now, the kettle is driven by a hydraulic motor. If buying reconditioned with agitation, we would remove the existing agitator and add a brand new agitation system, options are below. Kettle is 72" dia. with approx. 48" straight side and a 31" dish depth. Overall height with current agitator is approx. 136". Top has a 1/3 hinged cover. Jacket has 2" threaded fittings. With a 4" sanitary fitting in wall of hemispherical bottom. Unit being offered as-is or reconditioned with a 1 year warranty.

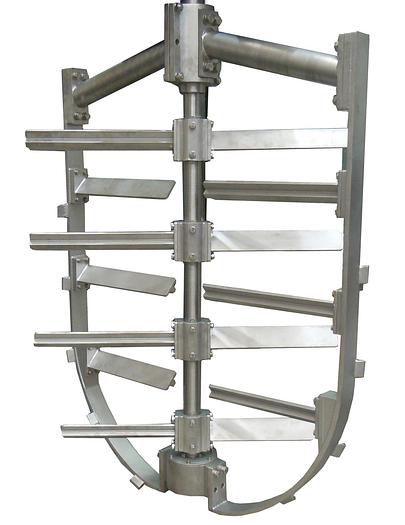

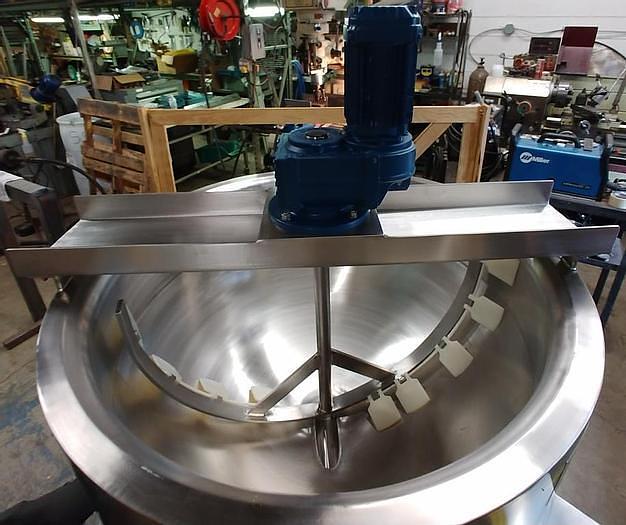

Options: (Sample photos shown below) NEW Single Motion Wide Sweep Scraper Agitation System. Anchor type with scrapers……ADD T.B.D


NEW Double Motion Wide Sweep Scraper Agitation System. This is a true counter-rotating design with the scrapers turning one direction and the flight bars turning the opposite direction. Each shaft is controlled by a separate drive and VFD (VFD $TBD for each drive)………..Price ADD T.B.D.

NEW Twin Action Wide Sweep Scraper Agitation System. This system consists of a single motion wide sweep scraper agitator and a secondary off set agitator. Each agitator is driven by an independent gear drive with VFD (VFD price t.b.d. for each drive) for complete speed control and direction. All mounted to a one piece formed stainless steel bridge……price t.b.d.

NEW Bridge Mount High Speed Mixer for kettle. 20 HP full speed mixer. All stainless steel including motor. Customer’s choice of prop type, hydrofoil or shear cutter…….price t.b.d.

NEW Brand Name Silverson High Speed Mixer for kettle with rotor/stator head……price t.b.d.

The kettle is used and is offered reconditioned. All agitation components are built new and come with a warranty. Our reconditioning service includes: 1. Pressure testing of jacket and repairing any leaks. 2. All mechanical systems are checked and any worn parts replaced. 3. Any worn seals are replaced. 4. Legs that are mild steel will either be re-painted or replaced with stainless steel. 5. All stainless steel is cleaned and brushed to a sanitary finish. 6. Crating and skidding for all smaller kettles. 7. Loading. 8. Arranging transportation. Modifications and agitation are available for any kettle. Reconditioned Kettles are guaranteed for one year from the date of purchase.

Specifications

ManufacturerLee Industries
ConditionRefurbished
Stock Number10446
Size (smallest to largest)1000.0 gallon
