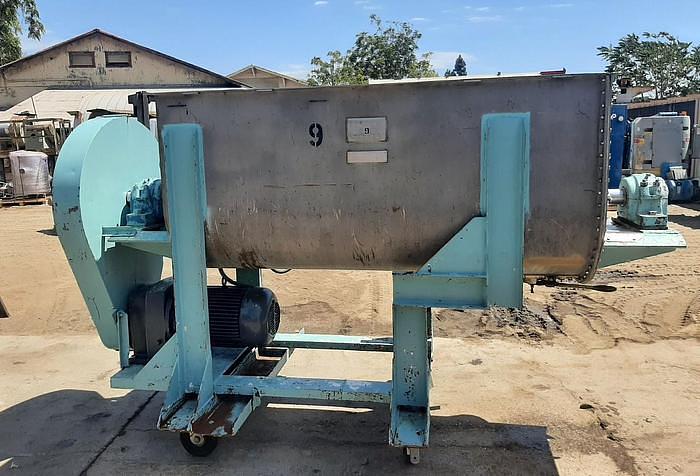

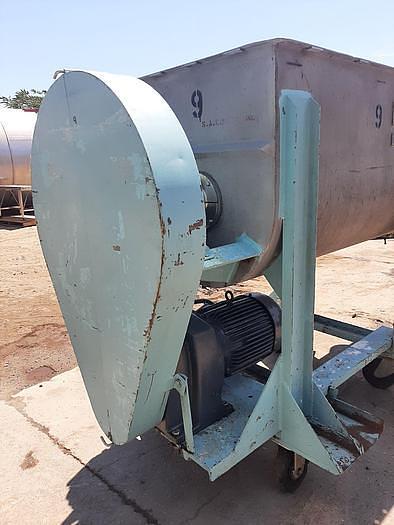

35 CU. FT. J.H. DAY RIBBON BLENDER - S/S - 20 HP

orCall 216-409-1394

Description

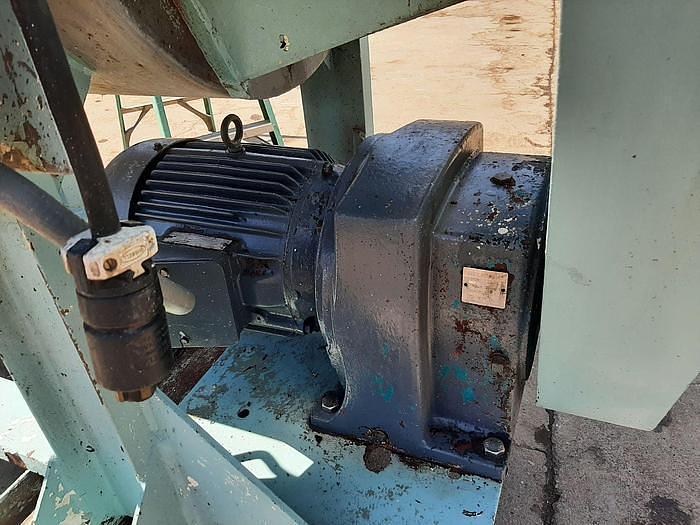

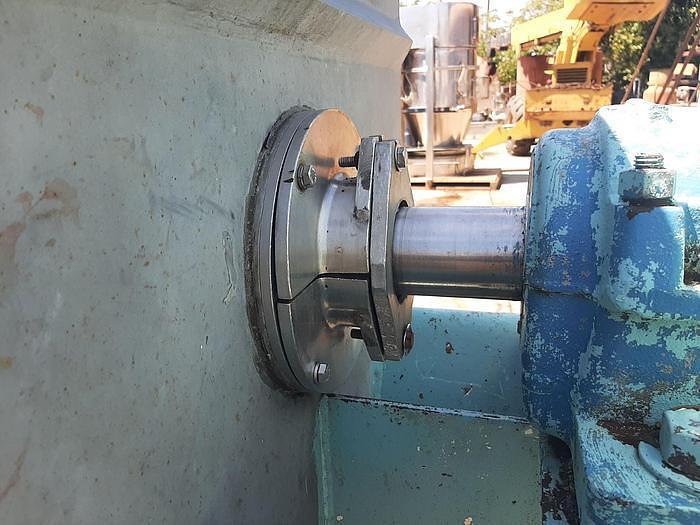

1 - used 35 cu. ft. J.H. Day Double Ribbon Blender. Model 35 cu/ft. T-304 stainless steel construction. Trough measures approx. 30" Wide x 78" Long x 32" Deep. 4" dia. end bottom outlet. Ribbon assembly includes 3-1/2" diameter center shaft, 2" wide x 1/8" thick inner ribbon, 1-1/2" wide x 3/8" thick outer ribbon, welded to 1" diameter posts. Includes outboard roller bearings, packing glands and top hinged cover. Driven by 20 HP 230/460 V, 1770 RPM, 3/60 Hz motor with gear reducer ratio: 6.50 to 1,280 output RPM to chain & sprocket assembly. Mounted on carbon steel frame with 4 legs with casters. F.O.B. - LOCATION




Specifications

ManufacturerJ.H. Day
Model35
ConditionUsed
Stock Number10468
Size (smallest to largest)35.0
