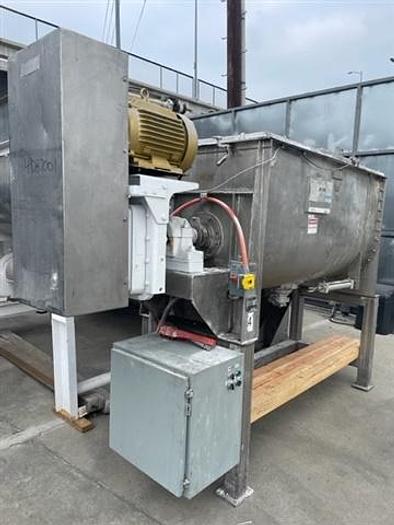

40 CU. FT. J.H. DAY DOUBLE RIBBON BLENDER - S/S - WITH SPRAY SYSTEM

orCall 216-409-1394

Description

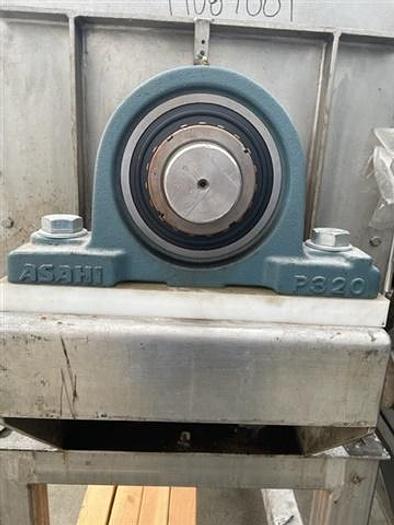

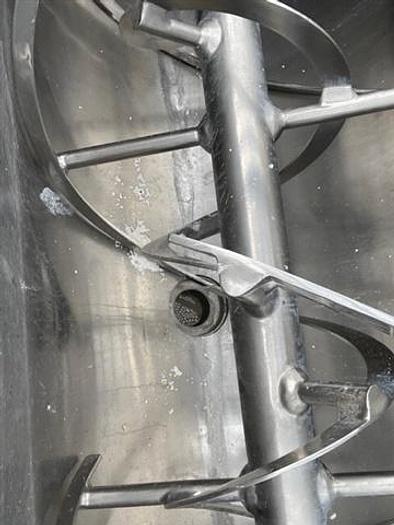

1 - used approx. 40 cu. ft. J.H. Day Double Ribbon Blender. T-304 stainless steel construction. Trough measures approx. 30" wide x 78" long x 32" deep. With 4" dia. end bottom outlet. Ribbon assembly includes 3 1/2" dia. center shaft, 2" wide x 1/8" thick inner ribbon. 1 1/2" wide x 3/8" thick outer ribbon. Welded to 1" dia. posts. With outboard roller bearings, packing glands and top hinged cover. Driven by a 20 HP 3/60/230/460V, 1770 RPM motor with gear reducer ratio: 6.5 to 1,280 output RPM to chain & sprocket assembly. F.O.B. - LOCATION

Specifications

ManufacturerJ.H. Day
ConditionUsed
Stock Number10558
Size (smallest to largest)40
