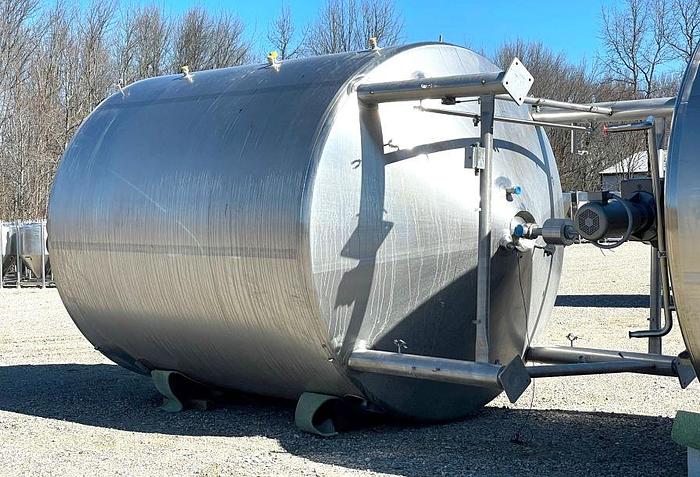

7,500 GALLON FELDMEIER CONE BOTTOM PROCESSOR TANK - SANITARY S/S - JACKETED

orCall 216-831-8485

Description

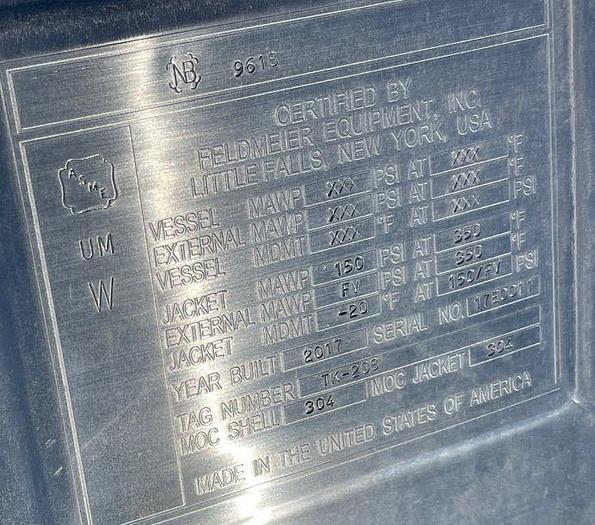

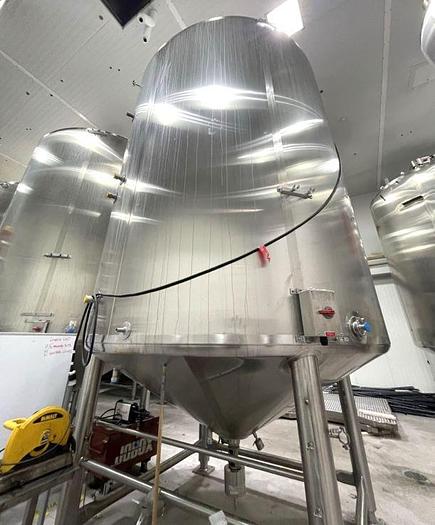

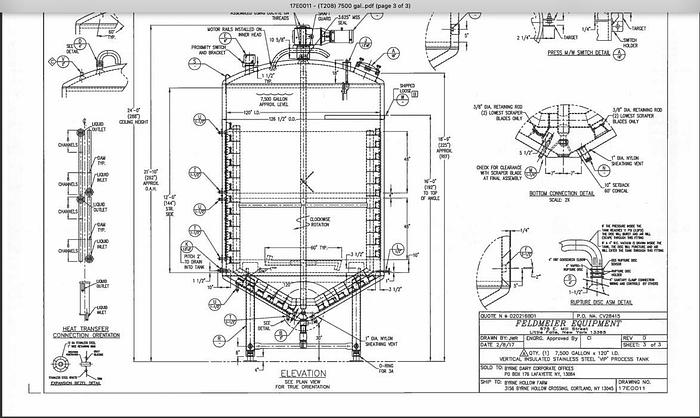

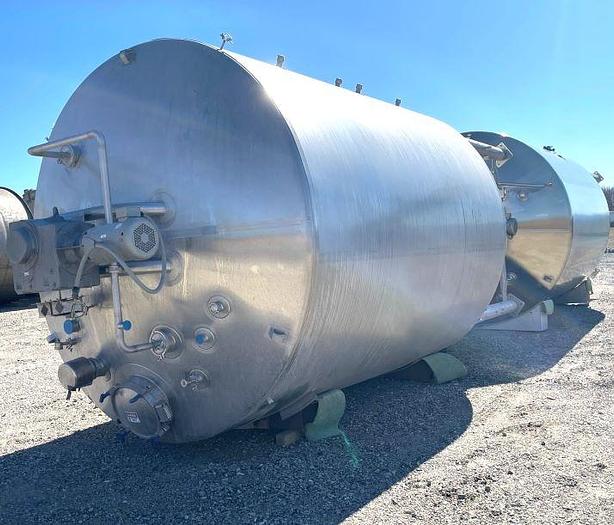

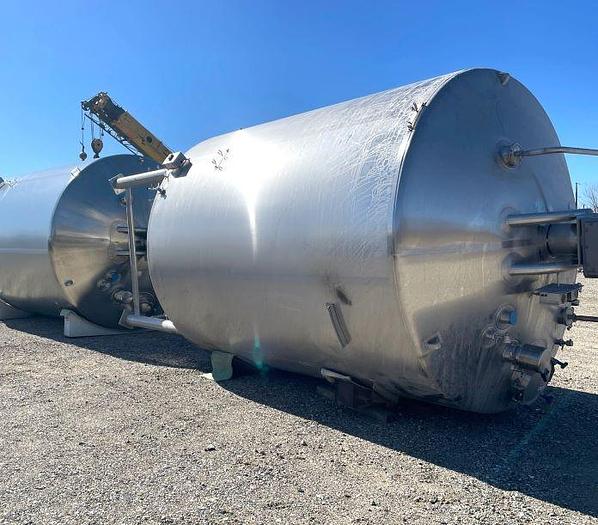

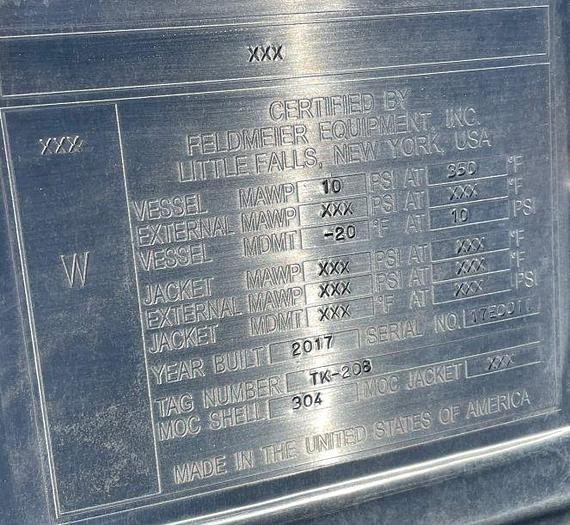

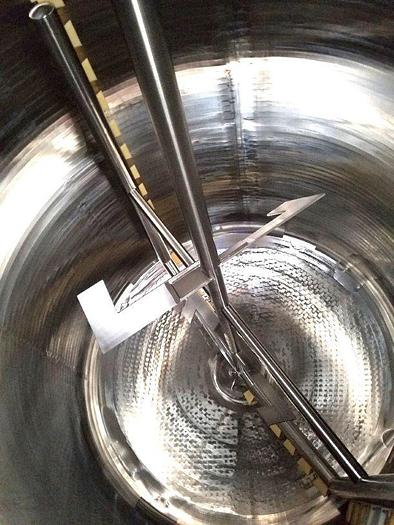

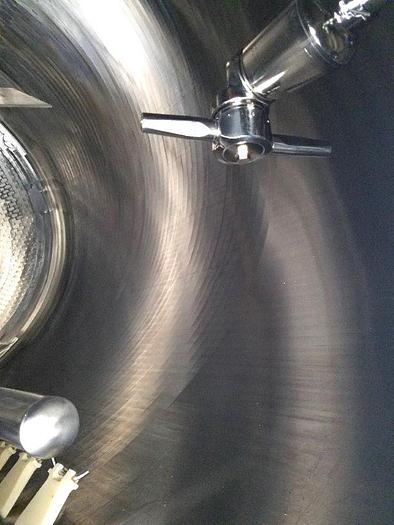

1 - used 7,500 gallon Feldmeier Sanitary Jacketed Processor Tank/Kettle with Sweep Mixer and scraper blades. Dish top and cone bottom. Internal rated 10 psi. (3) zone jacket rated 150/FV psi @ 350 deg. F. T-304 stainless steel construction. Approx. 10' dia. x 12' T/T. 126.5" OD x 21'10" OAH. 10 HP Anchor Sweep Agitator with scraper blades to gear box. Approx. 11 RPM output speed. Approx. 18" top manway. Approx. 3" center bottom outlet. Top mounted CIP system. Last used in a food manufacturing facility. Drawing available. F.O.B. - LOCATION

Specifications

ManufacturerFeldmeier
ConditionUsed
Stock Number10714
Size (smallest to largest)7,500.0
