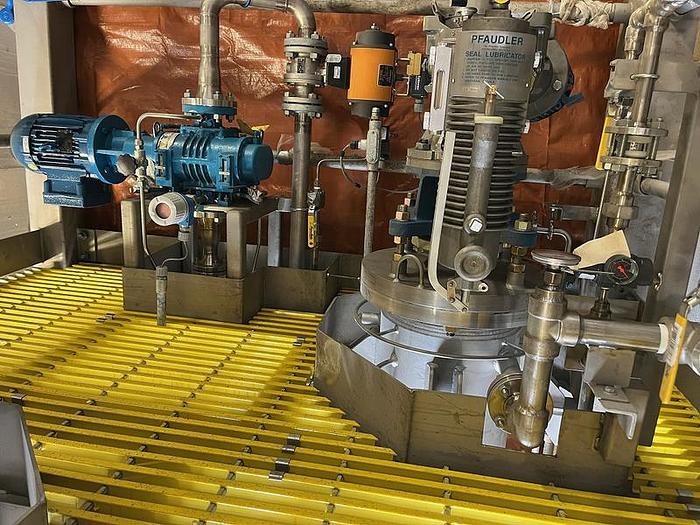

UNUSED 13 SQ. FT. PFAUDLER WIPED FILM EVAPORATOR WITH VACUUM SYSTEM - NEVER INSTALLED

UNUSED - PFAUDLER 13.4 SQ. FT. SURFACE AREA WIPED FILM EVAPORATOR SYSTEM

• Built 2018 and NEVER INSTALLED

Equipment Included:

• 3.1.1. EV-1: Wiped Film Evaporator Model 13.4-12L-BVO 13.4.sq. ft. (1.2 m2) of heated surface designed for external condenser
• Louvered style entrainment separator with centrifugal, carbon graphite wiper blades,
• Standard vacuum design
• 316 SS construction on process side and carbon steel construction on the utility side
• Complete with drive and double mechanical lubricated seal.
• Designed and built to ASME Code - Internal rated 14.9 psig/FV at -20° F to 450° F.
• 3.1.2. CN-11, External Condenser all 316 SS construction, BEM TEMA design, ASME Code Rated, CRN Registration.

SKID SYSTEM UNUSED - WITH VACUUM SKID

THE SKID IS 8' X 8' X 12'6" HIGH
