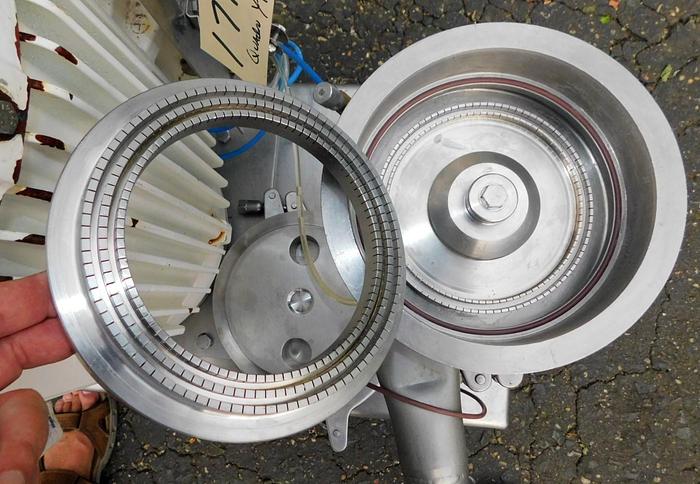

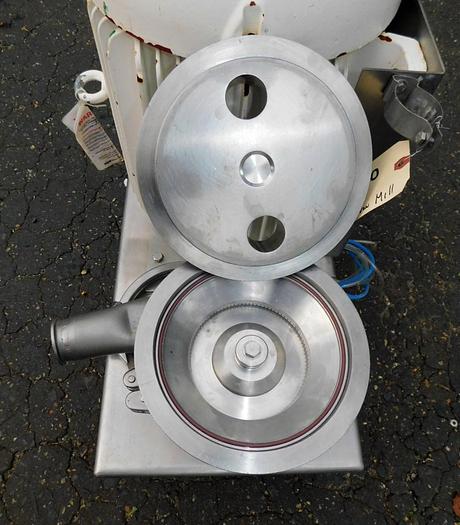

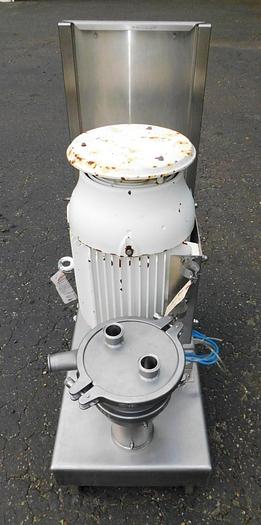

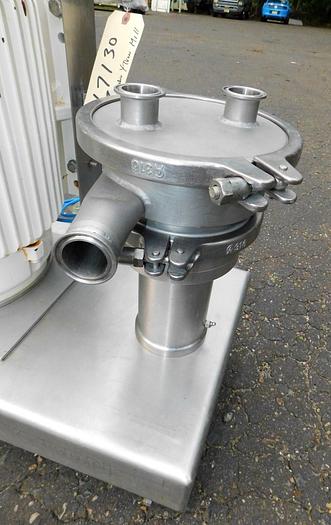

QUADRO YTRON INLINE VERTICAL SHEAR MILL - MODEL HV-1

orCall 216-409-1394

Description

  • Model HV-1
  • S/S Pharmaceutical Grade Contact Surfaces
  • Manufacturers Design for High Shear Wet Milling
  • Submicron Homogenizing and Micronization of Suspensions and Slurries
  • Rated for Productions of 5-25 Gallon / Minute
  • Maximum Rotor Rotational Speed of 70 m/s
  • 1.5" Dual Inlets and One Outlet with Tri Clamp Connections Set at 4 7/8" Centers
  • Mill is Belt Driven by Vertically Mounted 25 HP
  • Inverter Severe Duty Rated Motor by WEG at 3545 RPM,
  • 3/60/230/460V
  • 57.6 / 28.8 AMPS
  • Mill is Rated for Speeds 2195-9180 RPM
  • Flushed Mechanical Shaft Seal
  • Mounted on 32" X 17" S/S Factory Base with Casters
  • Covered Bottom Encloses Belt Drive
  • Formerly Used in Fresh Juice Processing
  • Furnished with New Main Seal
  • Reconditioned and Wet Tested with Video
Show All

Specifications

ManufacturerQUADRO INC./YTRON QUADRO LTD.
ModelHV-1
Year2021
ConditionUsed
Serial NumberHV1-0051R
Stock Number10857
