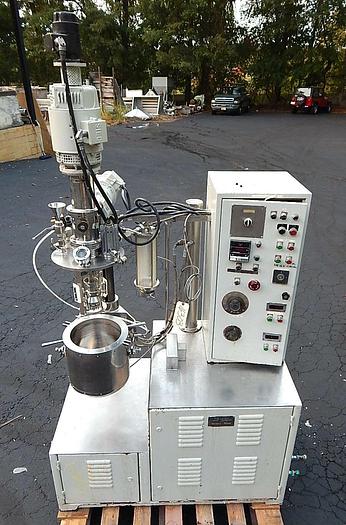

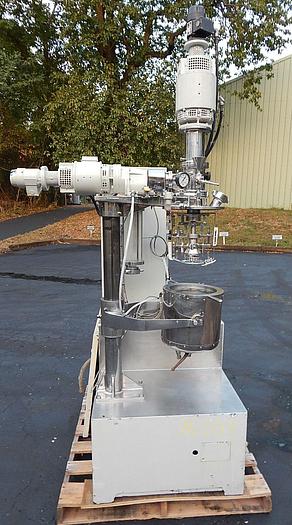

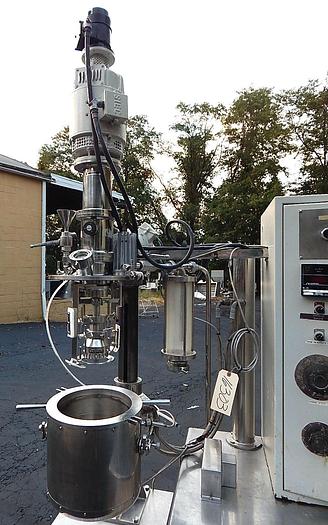

2-7 LITER PRESSCO TURBO EMULSIFIER TRIPLE MOTION AGITATOR

2 TO 7 LITER PRESSCO TE-3 TURBO EMULSIFIER TRIPLE MOTION AGITATOR

• Full Jacketed and Insulated Mixing Vessel

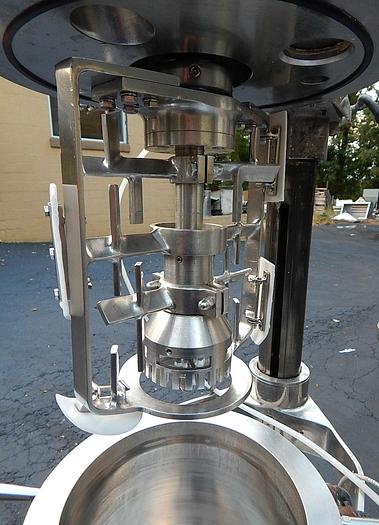

• Triple Motion Agitation

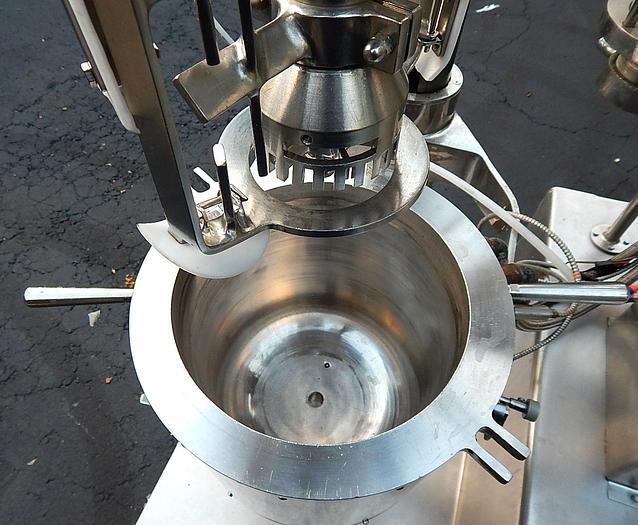

• Agitated Hinged Teflon Scrapers
• Counter Rotating Blades
• 3 - 63 RPM High Speed
• 70 mm Diameter Homogenizer 0-2000 RPM
• 12 Liter Total Volume
• Working Capacity from 2 to 7 Liters
• Variable Speed(s) Agitation

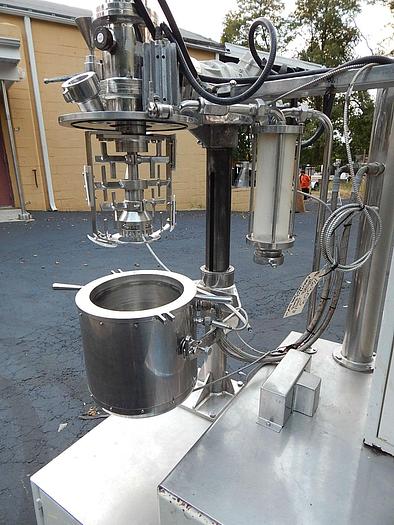

• Vessel is Mounted on Powered Lift
• 250 mm Dia. x 270 mm Straight Side
• Flat Gasketed Cover Permits Internal Vacuum Service
• Vessel rated for Torr
• Sight Glass Internal Light with vacuum outlet including acrylic receiver chamber (vacuum provided by user)

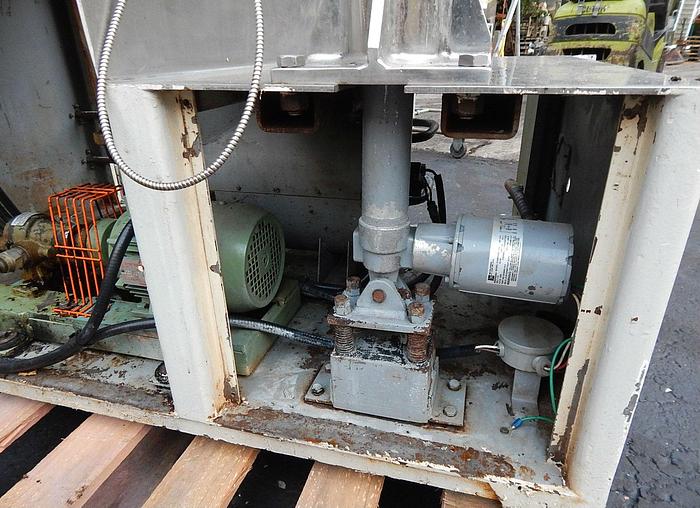

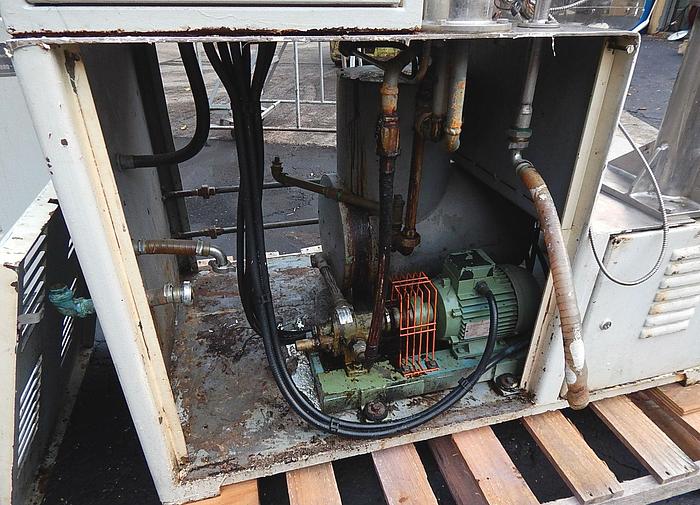

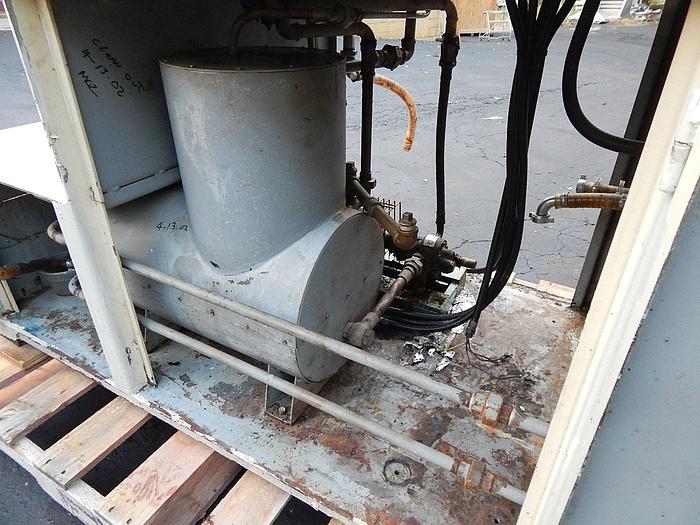

• on board 3 kw electric fluid heating system and recirculating pump piped through vessel jacket and rated for maximum temperature of 130 c,
• mfg rates unit for maximum cps of one million and maximum product density of 2 kg/dm 3

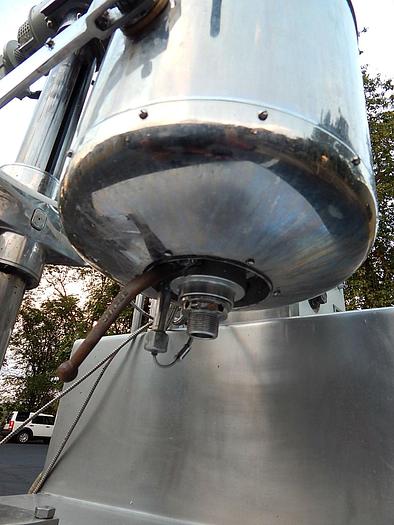

• internal temperature probe and center bottom outlet with ball valve
• inlet and outlet lines for vessel cooling from owners source

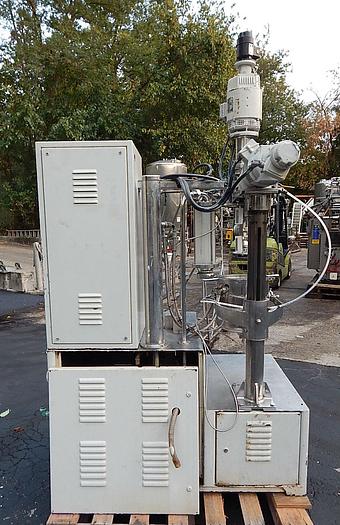

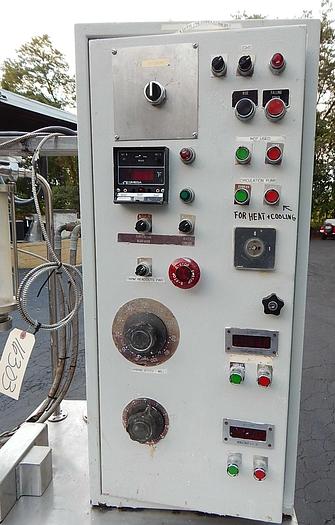

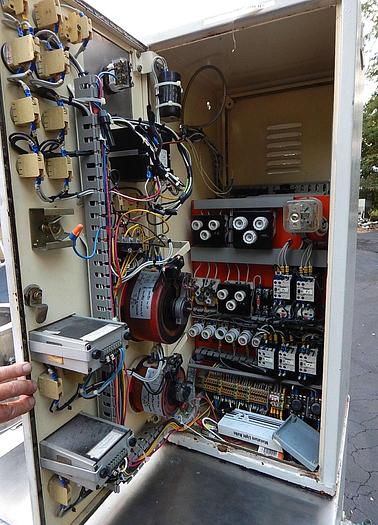

• mounted on factory cabinet base with control panel and four opposing service doors

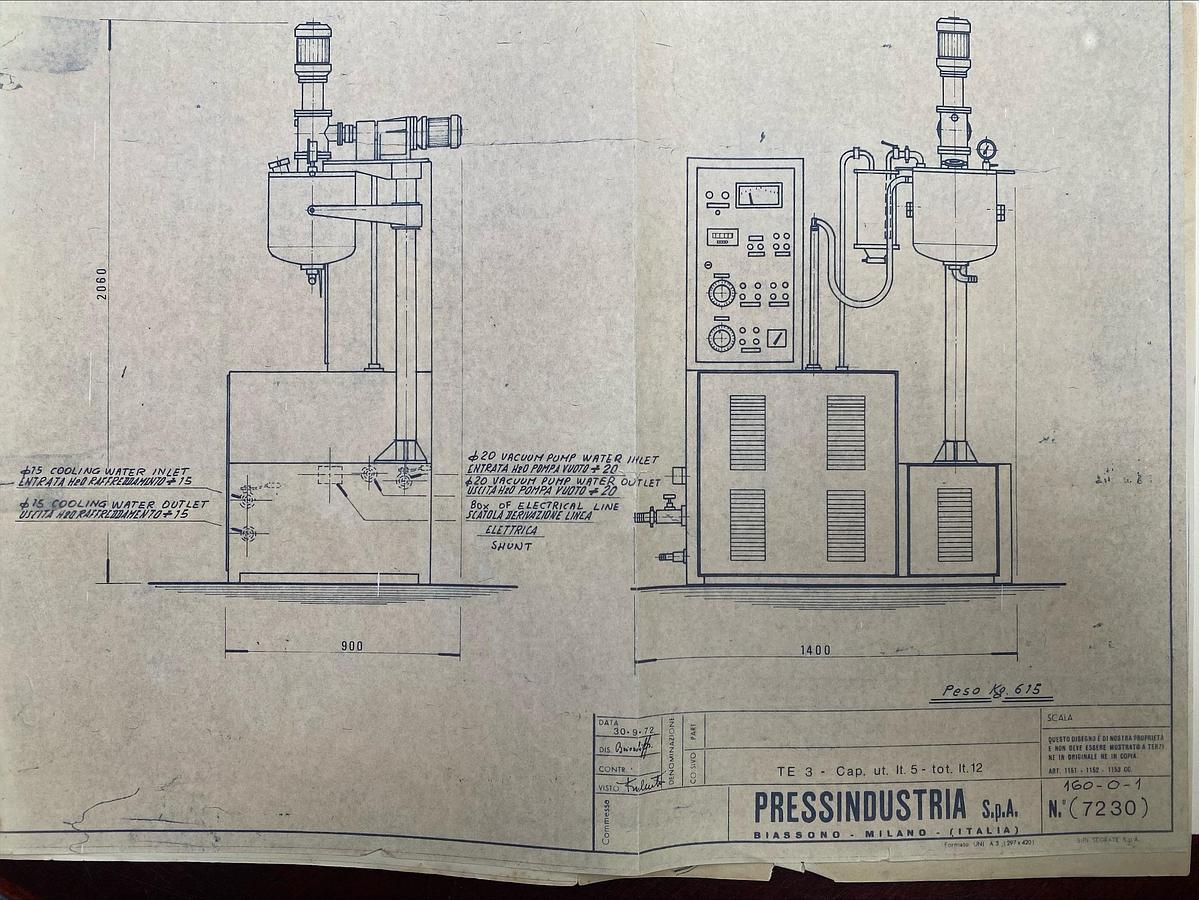

• Factory dimensions 1400 mm x 900 mm x 2060 mm high @ 615 kg.
• Formerly used in branded cosmetics lab
