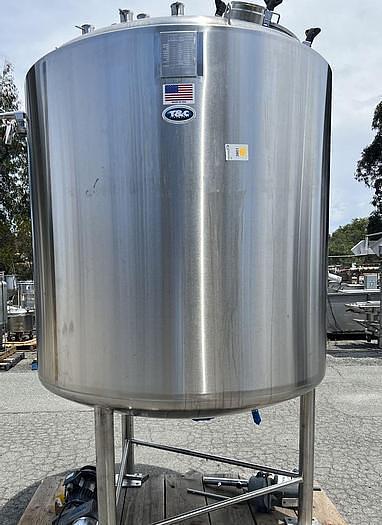

740 GALLON (2,800 LITER) T & C AGITATED REACTOR - T316L S/S - JACKETED

1 - USED 740 GALLON (2,800 LITER) T & C AGITATED REACTOR 316L S/S JACKETED

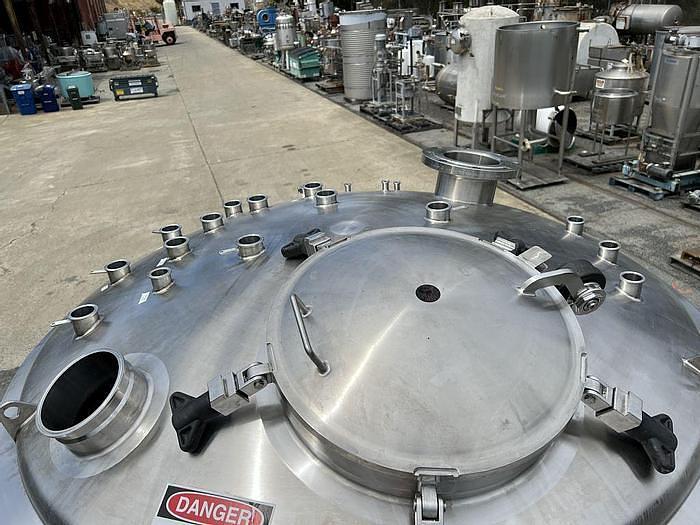

• Measures 5' Ft. Dia X 5' Ft. Straight Side with Dish Top & Bottom
• Vessel is Jacketed and Rated for 100 PSI at 250 Degrees Fahrenheit to Minus 20 Degrees Fahrenheit
• Internally Rated for 10 PSI at 250 Degrees Fahrenheit to Minus 20 Degrees Fahrenheit
• Head & Shell Thicknesses are 7 Gauge

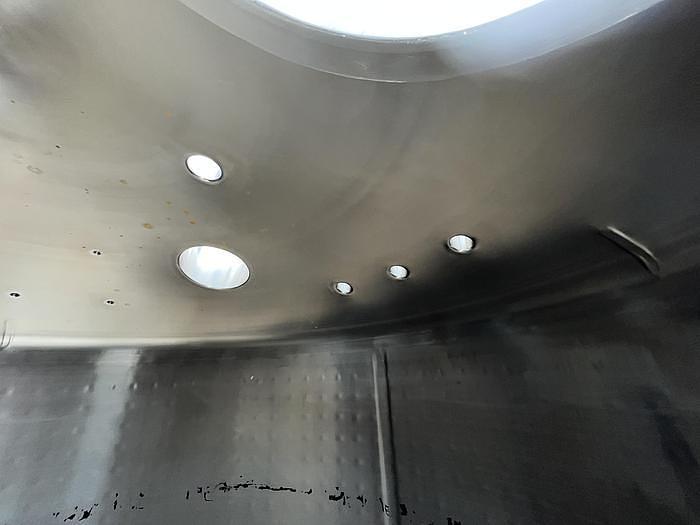

• Jacket is Constructed of 304 S/S
• 14 Gauge Thickness

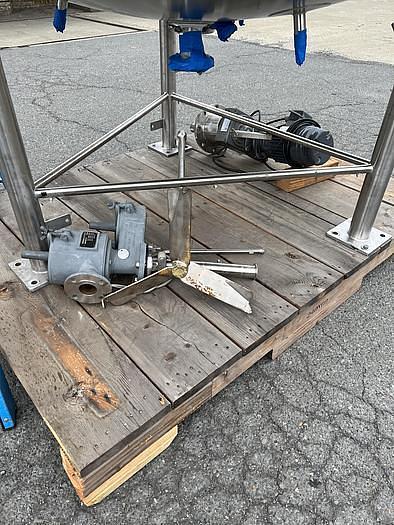

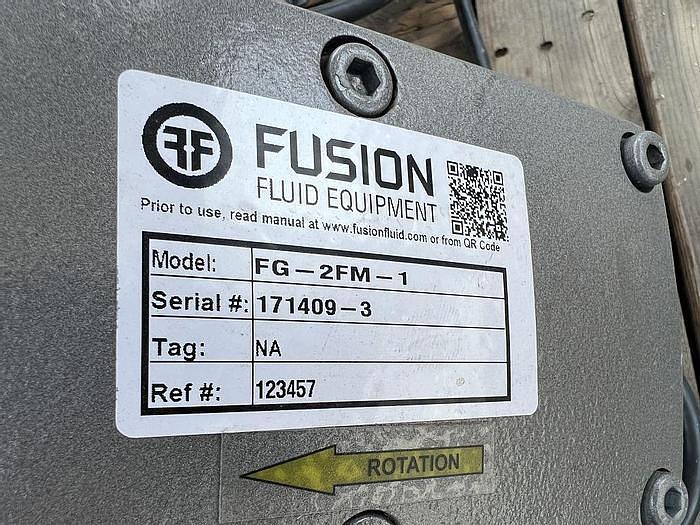

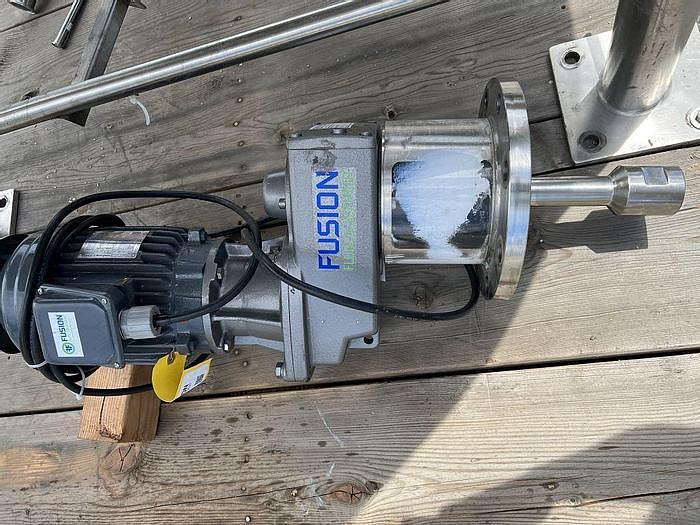

• Reactor Includes Top Entering Agitation with Fusion Fluid Equipment Gearmotor

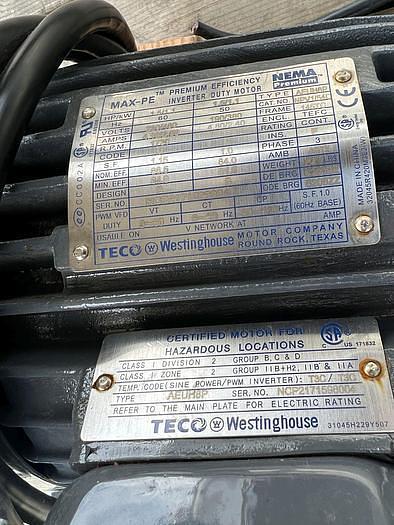

• Driven by 1.5 HP, 230/460 Volt, 50/60 Hz, 1730 RPM Motor Thru Gear Reducer

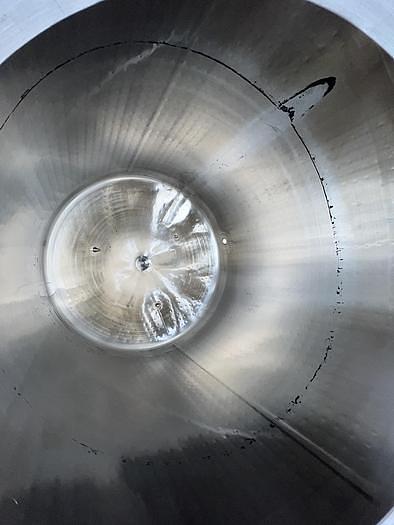

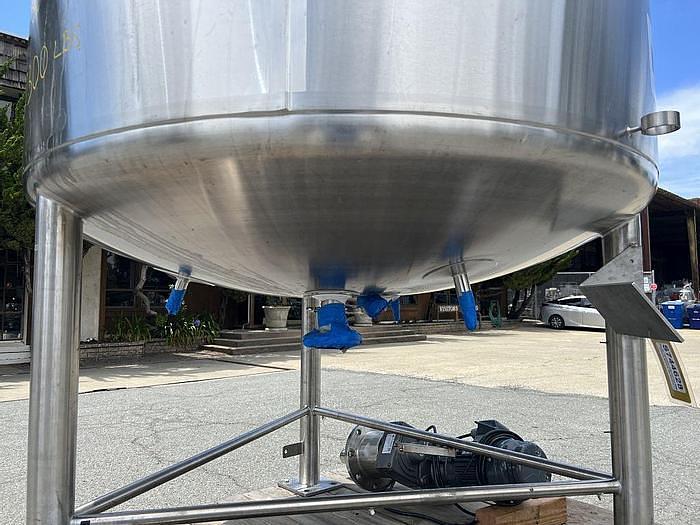

• Vessel Includes 4" In. Center Bottom Outlet with Asepco Valve to 1.5" In. Discharge

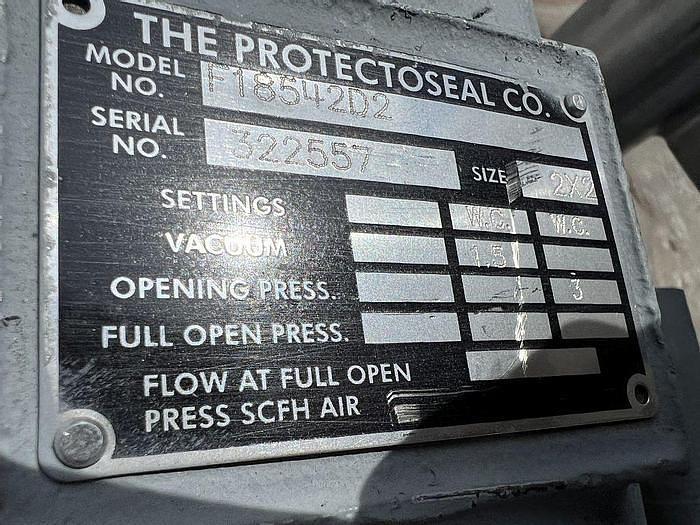

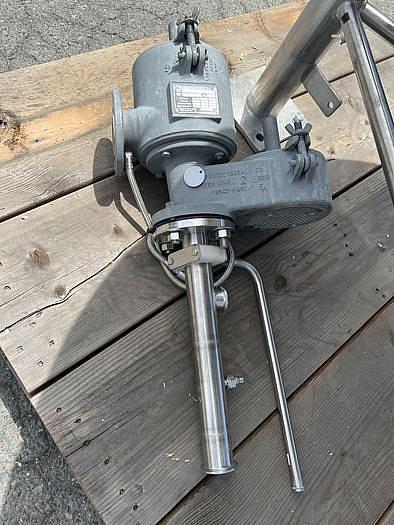

• Offered with ProtectoSeal F18542D2 pressure & vacuum relief vent

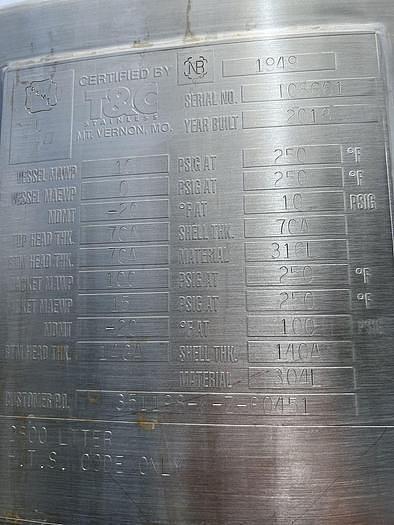

• National Board number 1949
• ASME Code Constructed
• Previously Used as Curing Tank in Polymers-Based Application
