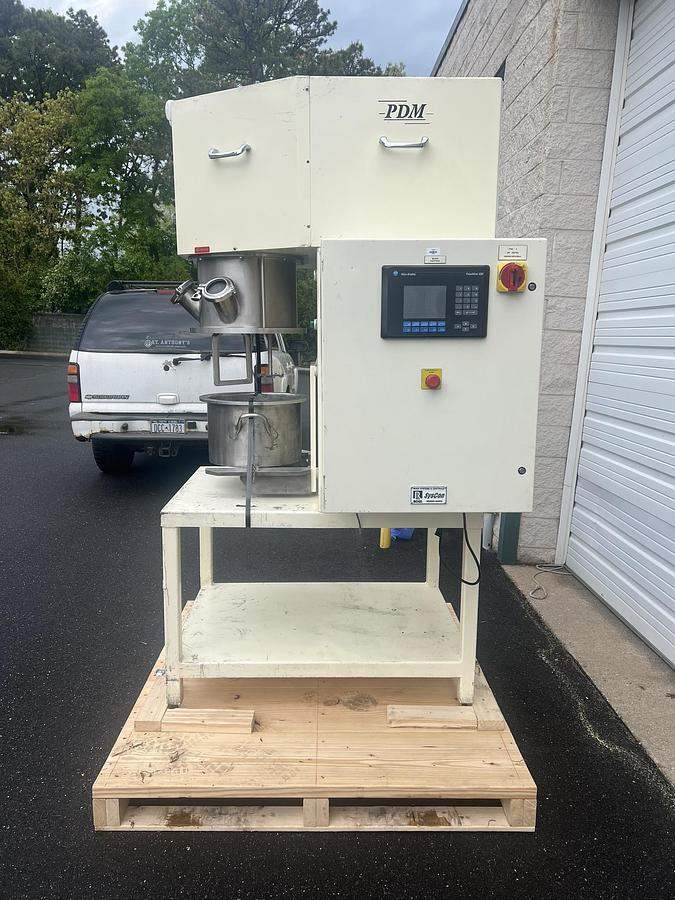

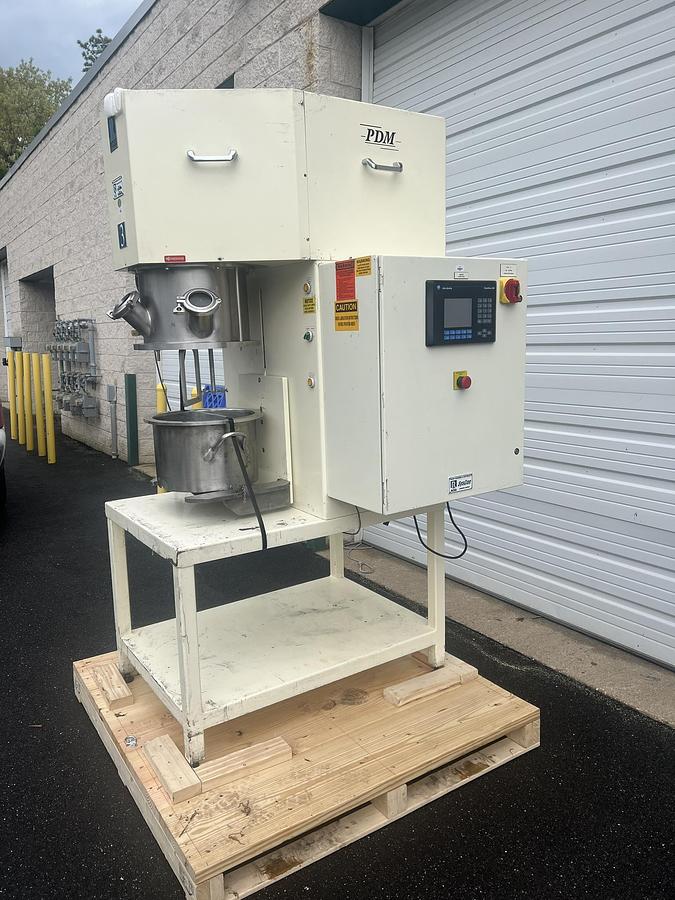

4 GALLON ROSS POWERMIX PLANETARY DISPERSER - S/S - VACUUM

4 Gallon Ross Planetary Disperser Mixer

• Model PDM-4
• With Planetary Blade & High Speed Disperser Blade
• 14" dia. x 8" deep Single Wall Stainless Steel Mixing Bowl
• Allen Bradley Micrologix 1200 PLC Controller with Panel View 600 display, VFDs
• Shelco Filter & Vacuum Pump, 460V
• Last Used for Ink Manufacturing
• (1) Used Single Wall Mix Can Included
• Jacketed Mix Can Available For An Additional Cost
• Electrically set up for 3/60/460/480V

ADD-ON OPTION:

SPARE REMOVABLE JACKETED VACUUM MIXING VESSEL:

Stainless steel type 304 removable vacuum mixing vessel with flat bottom to include

the following:

• 1” flush tank ball valve with 1” NPT threaded outlet.
• Stainless steel type 304 jacket on the sides & bottom rated 100 psig (7 BarG) at 175F (80oC).
• Interior of vessel polished to an 80 grit finish.
• Exterior of vessel polished to an 80 grit finish.
• Flush-mounted RTD Temperature Probe in vessel sidewall.
• Two (2) stainless steel handles attached to the sides of the mixing vessel.

PRICE:..............………….….. available on request
