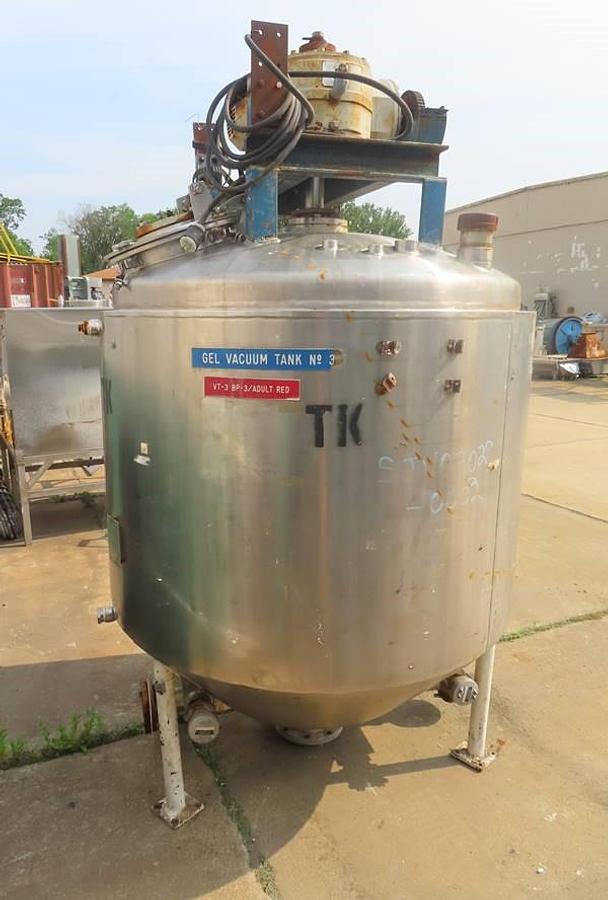

400 GALLON MIX TANK - S/S - JACKETED

400 gallon Stainless Steel Jacketed Agitated Tank

• Closed dome top
• 52" inside diameter x 39" straight wall
• Cone bottom with center outlet.
• Short legs.
• 3 hp Center agitator with gear reducer.
• Top hinged manway -14.5" dia.eter with O-ring
• Manway cover equipped with a 5" sight glass

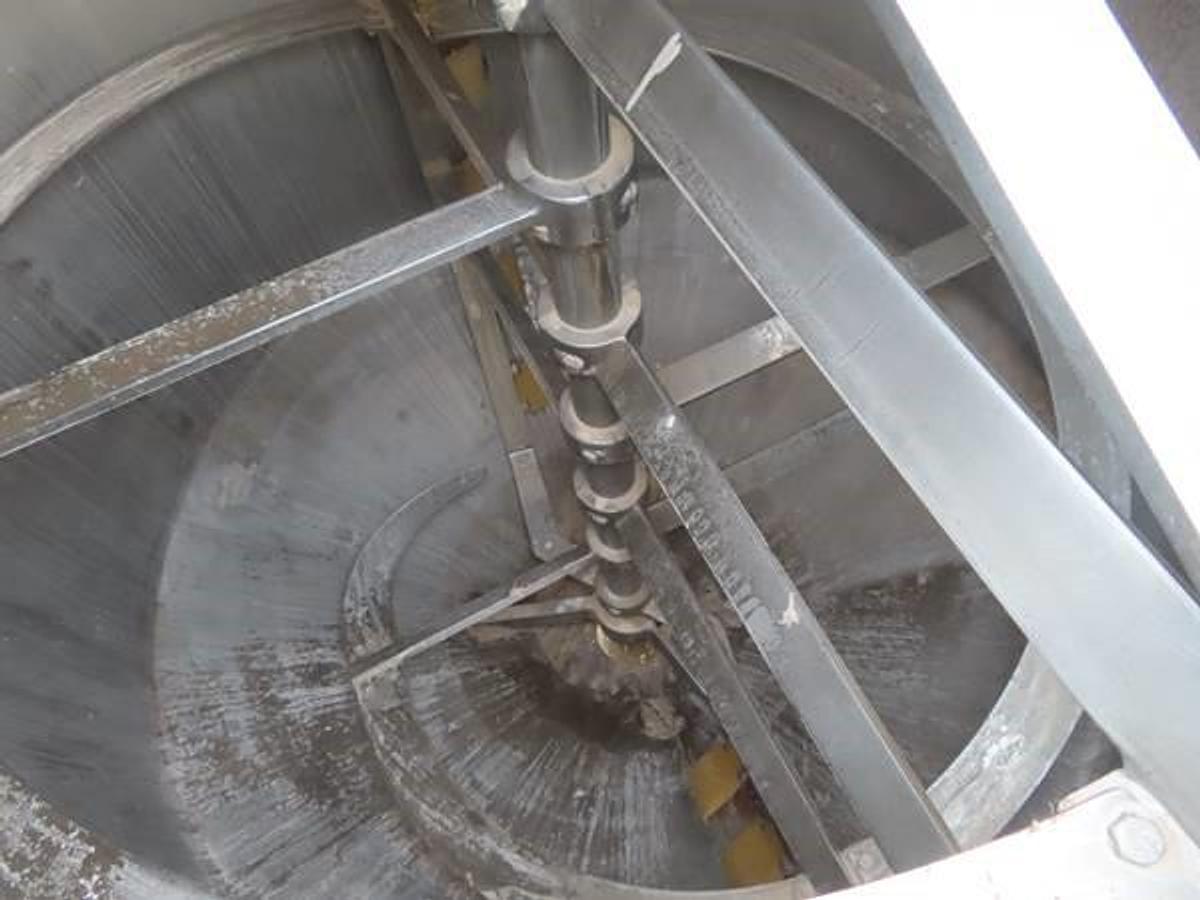

• Ribbon type agitation with side wall scrapers

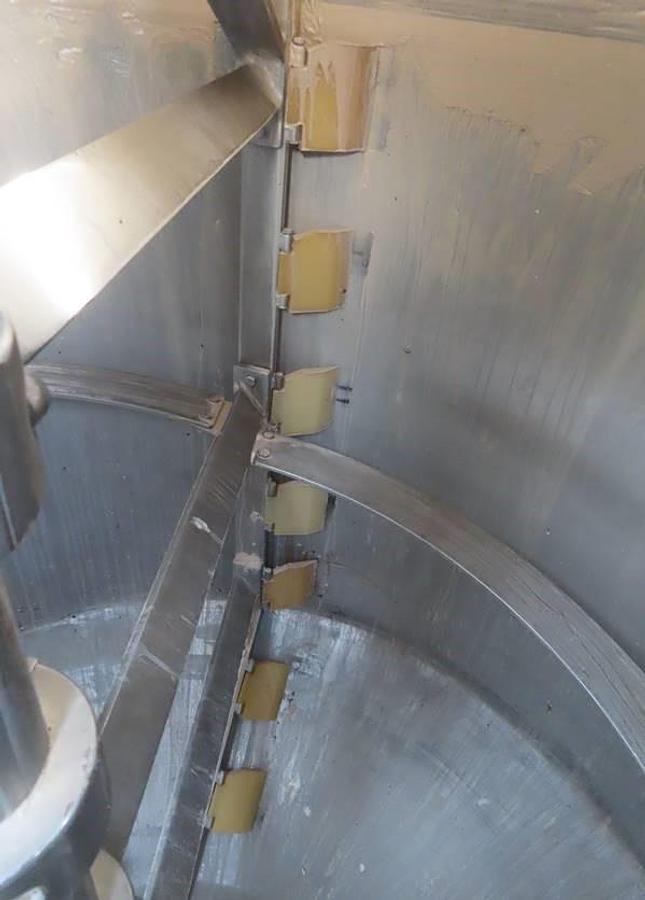

• Side wall scrapers on side walls and cone bottom
• 2 sets of wipers opposite of each other.
• Includes 3 hp motor and Delyrod Gear Reducer.
• Final output rpm is approx. 4.16 rpm.
• Equipped with an all stainless steel jacket

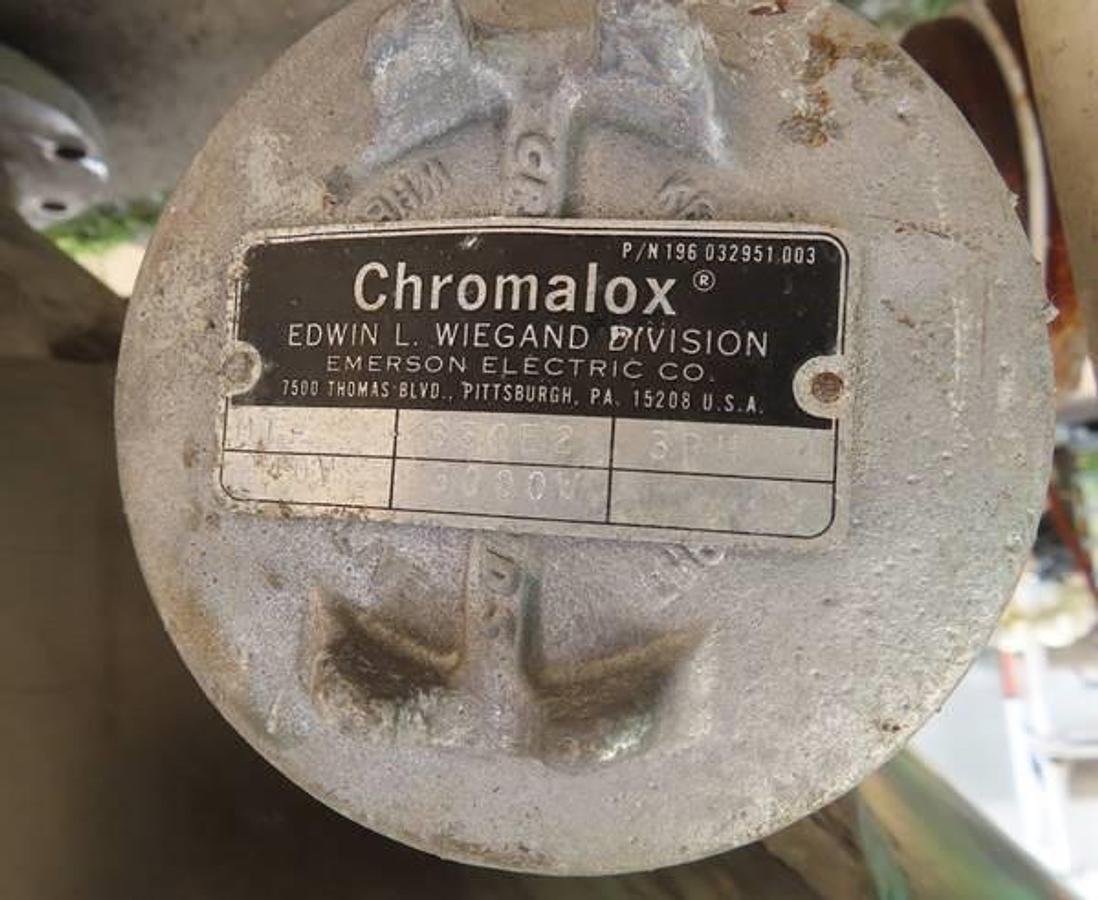

• Equipped with two Chromalox Immersion Heaters at bottom of jacket
• Chromalox Model MT-33OE2, 240 volt, 3000 watt each, 3 phase
• There is no tank tag, but sign says Vacuum Gel Tank
