ROSS DPM-1 GALLON DOUBLE PLANETARY MIXER
or
Call 216-409-1394
Description

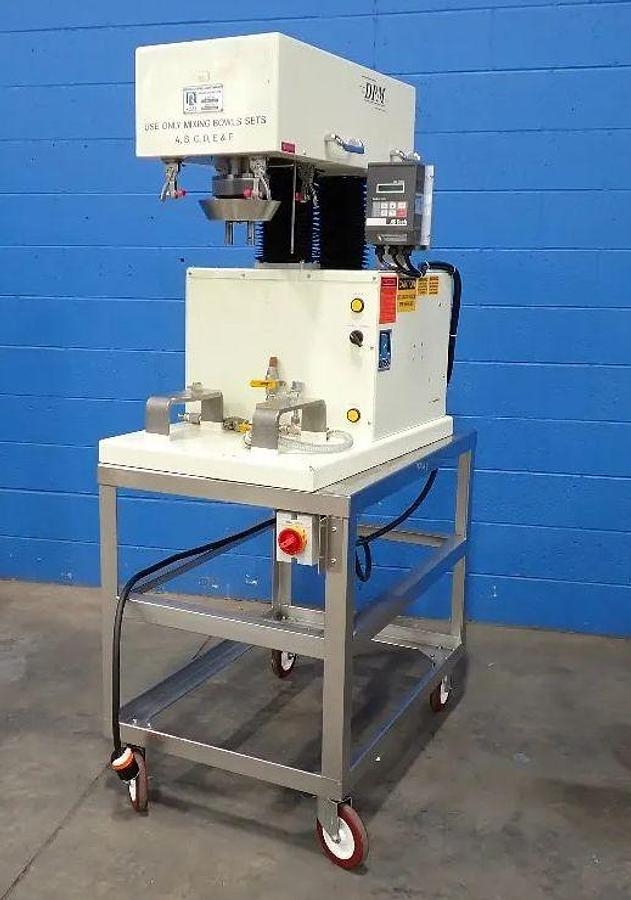

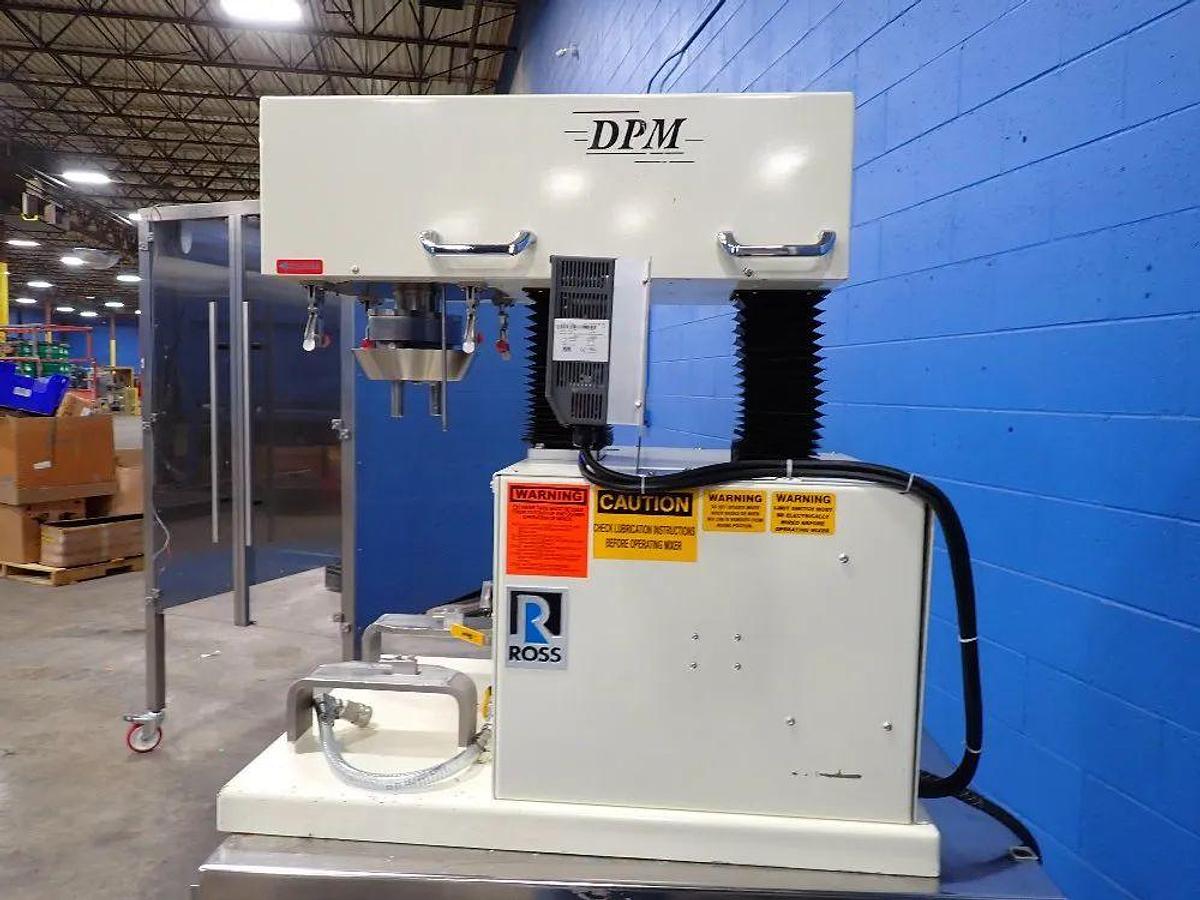

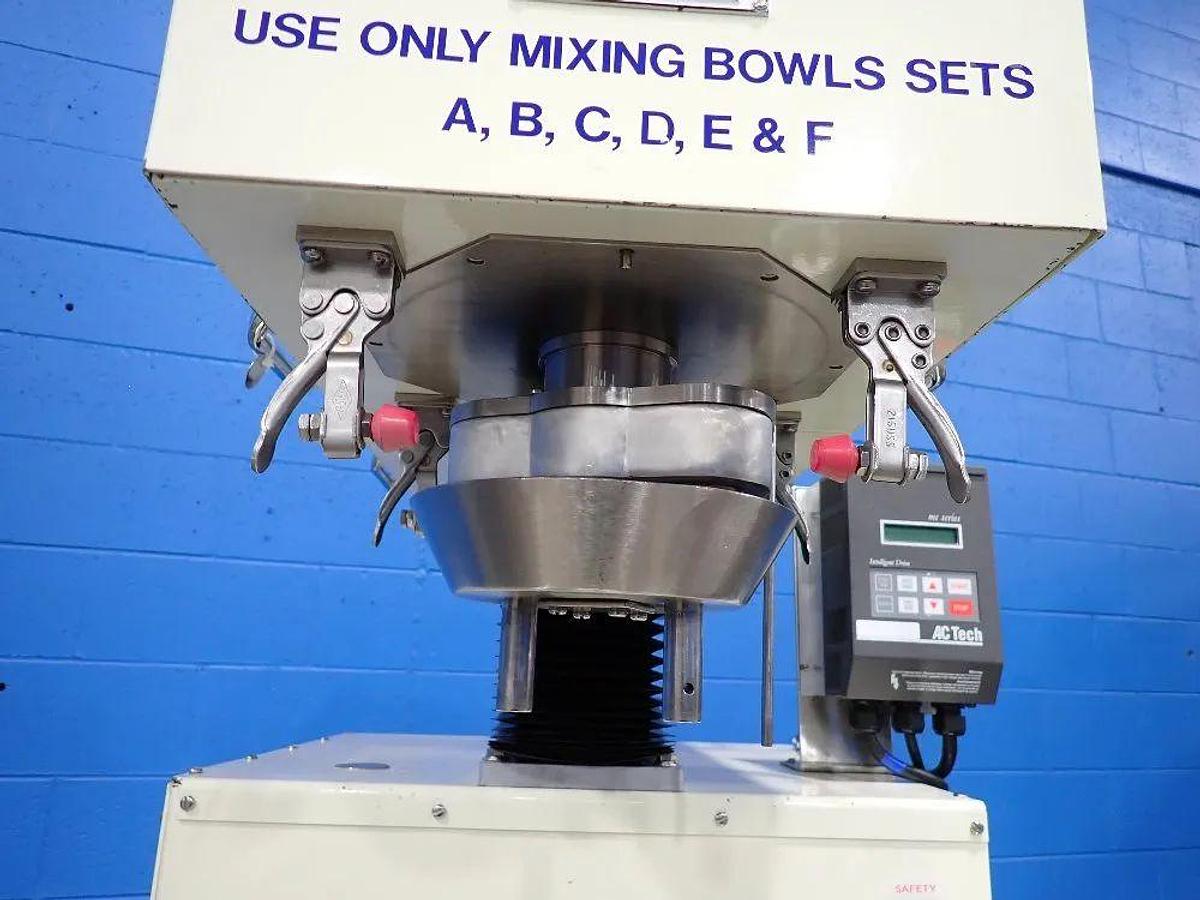

Ross DPM-1 Gallon Double Planetary Mixer
- Stainless steel product contact surfaces.
- Rectangular stirrer blades driven at 5 – 100 rpm (Orbital) and 9 – 180 rpm (Stirrer Speed) by a 1.5 HP, 230 volts, three phase motor.

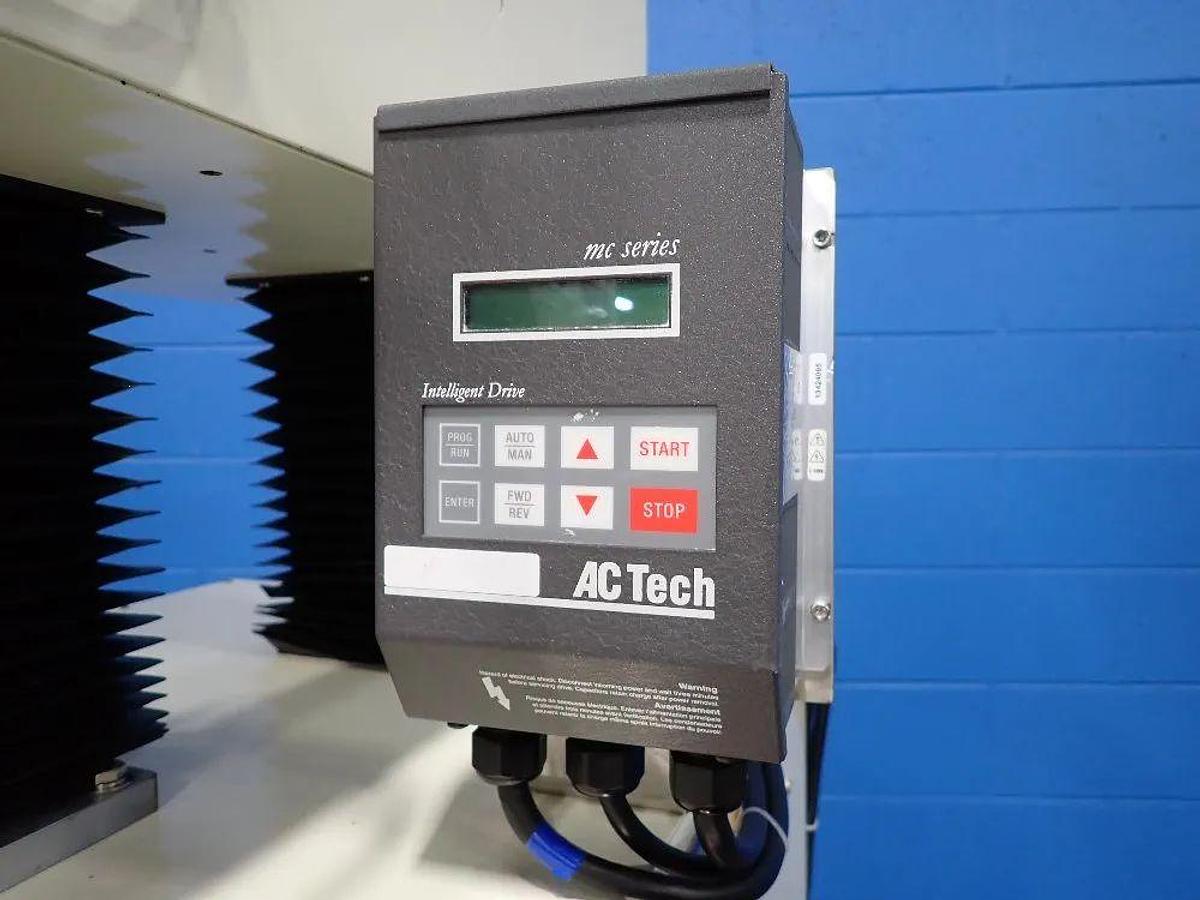

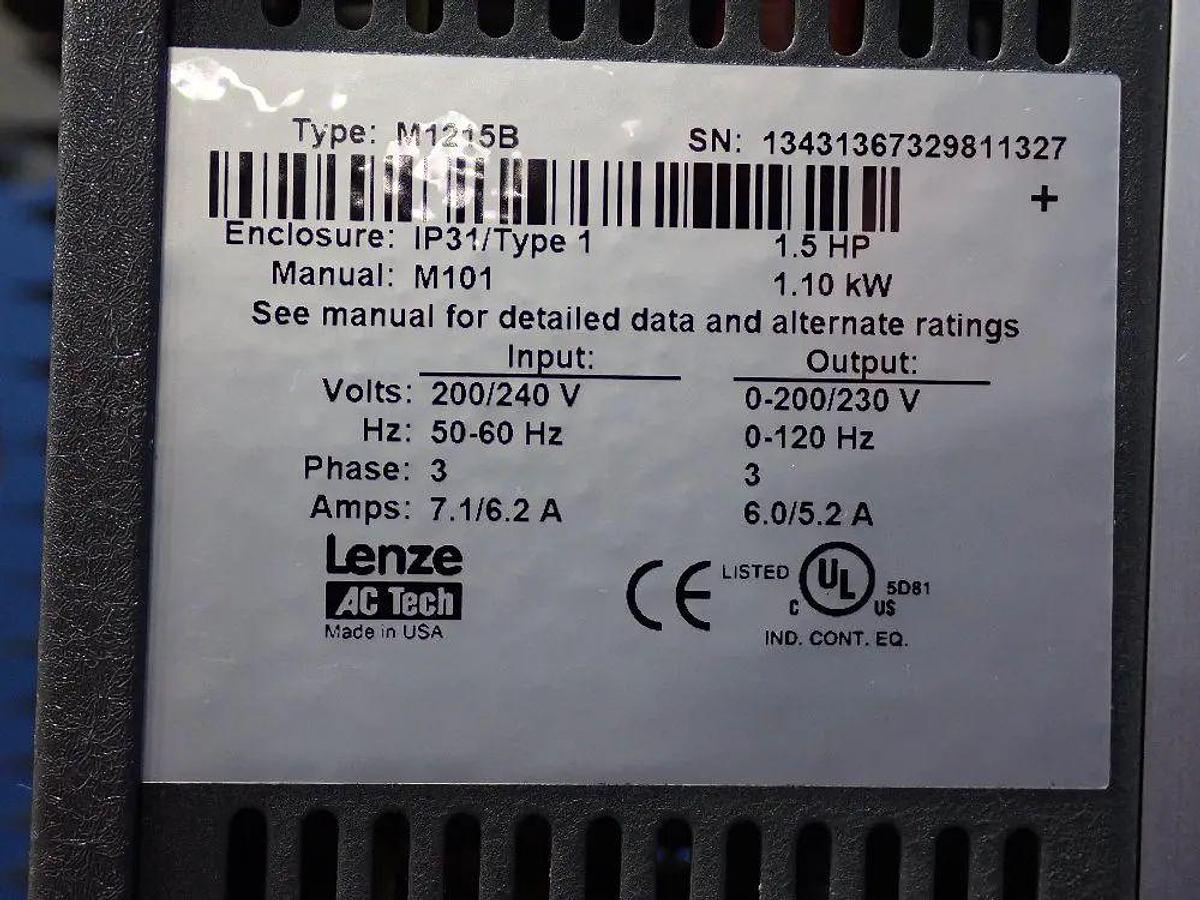

- Variable speed control through an AC Tech (Lenze) 1.5 HP variable Frequency Drive (VFD).
- Full vacuum change can design.
- Air/oil hydraulic lift lowers and raises the agitators to and from the mixing position.
- Stainless steel, portable mixer bench.
- Stainless steel gearbox housing with revolving dust shield.
- Lip seals on stirrer shafts.
- Safety limit switch to prevent operation of the mixer when the mix vessel or agitators are not in the mixing position.
Specifications
| Manufacturer | Ross |
| Model | DPM-1 |
| Condition | Used |
| Serial Number | 105858 |
| Stock Number | 11510 |
| Size (smallest to largest) | 1.0 |
