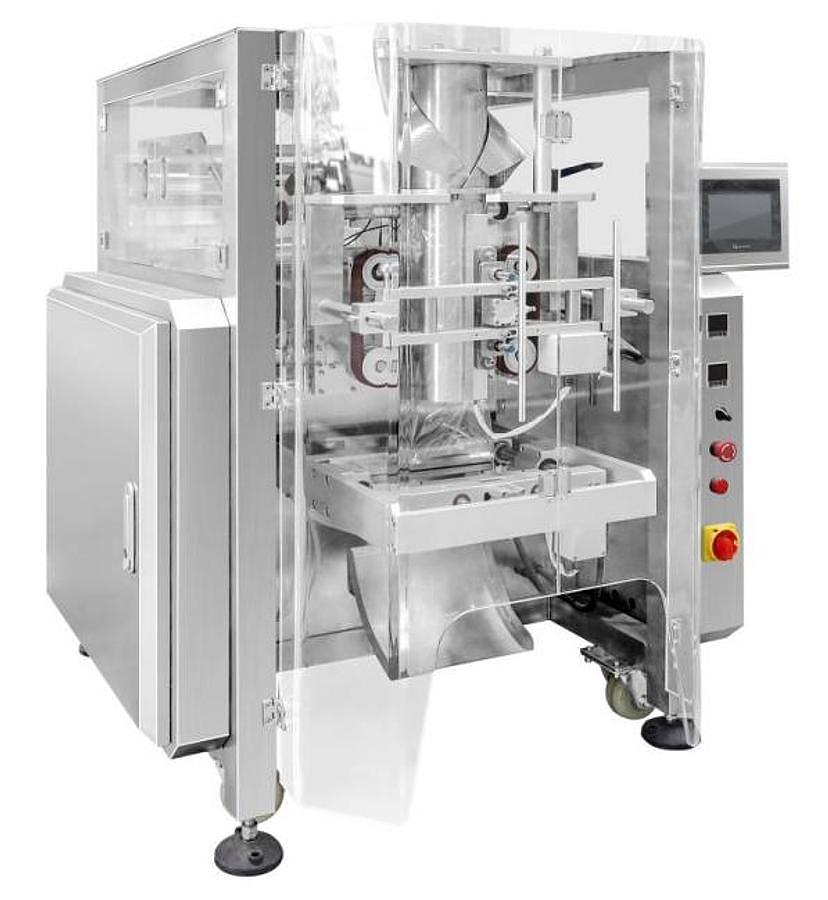

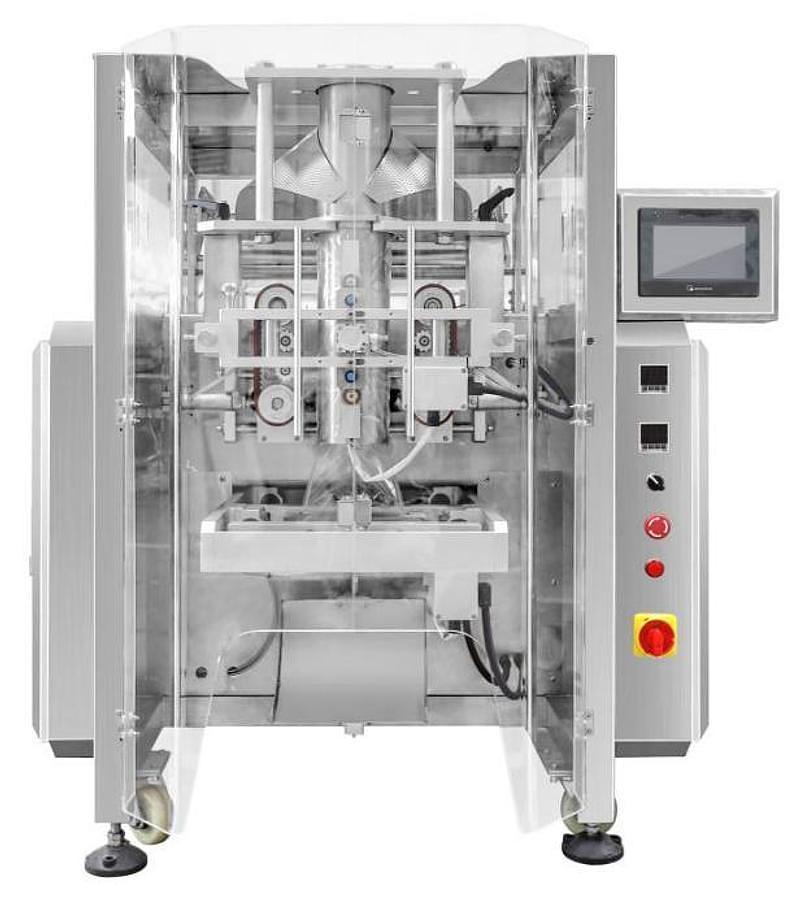

VERTICAL FORM FILL SEAL PACKING MACHINE (VFFS) ZV-480

Vertical Form Fill Seal Packing Machine (VFFS)

Sealing Type: Back Seal (Fin Seal)

Bag Length: 2"-12.6" (50-320 mm)

Bag Width: 2.4"-9.1" (60-230 mm)

Film Width: 18.9"

Film Material: OPP/CPP, OPP/PE, PET/LLDPE

Film Thickness: 1.6-4.0 mils

Packaging Speed: 25-100 bags/min

Filling Volume: 3.4-50.7 fl oz

Hanging Hole Type: Round hole, butterfly-shaped hole

Power Supply: 200-240 Vac, 1 PH, 60 Hz, 2.2 kw (Customizable)

Air Pressure: 94 psi (0.65 MPa)

Compressed Air: 10.6 CFM (300 L/min)

Dimensions (L x W x H): 60.5" x 52.0" x 58.8"

Machine Weight: 992 lbs.

Product Introduction

•The upgraded ZV-480 boasts a refined structure with a sleek, modern design. Engineered for easy installation, it seamlessly integrates into existing production lines with minimal disruption. Its robust compatibility and reliable performance make it a top choice for forward-looking manufacturers.

Key Features

• High Packaging Efficiency: Smooth, jam-free operation enhances productivity.

• Intelligent Control System: Fully computer-controlled PLC with user-friendly HMI and intuitive touchscreen interface.

• Precision Servo Film Transport: Accurate positioning ensures exceptional performance and neatly finished packages.

• Comprehensive Alarm & Protection System: Automatically detects and resolves issues to minimize material waste and downtime.

• Full Automation: When connected with dosing equipment, the machine can automatically complete the entire process—measuring, feeding, filling, bag forming, and date printing.

• Flexible Bag Styles: Customizable for pillow bags, gusseted stand-up bags, and hanging hole bags.

• Auto Film Alignment (Web Tracking): Intelligent correction system reduces film waste and saves time.

• External Film Loading: Easy-access film installation for faster roll changes and simpler maintenance

3 Month Lead Time

2 Year Warranty
