1,400 GALLON VERTICAL MIX TANK - S/S

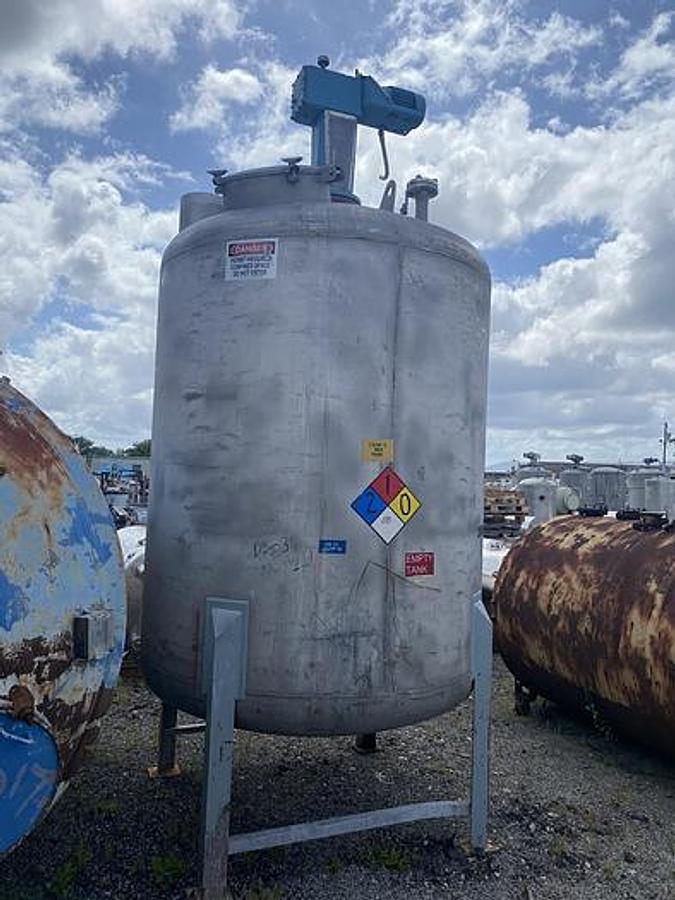

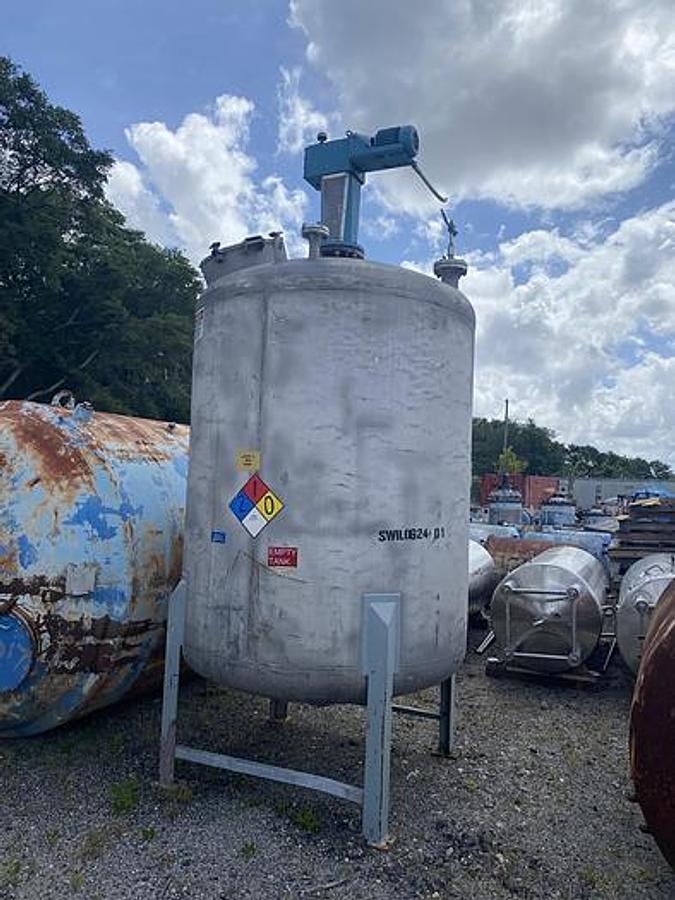

1,400 GALLON WARD TANK AND HEAT EXCHANGER CORP. VERTICAL MIX TANK

• 72" diameter X 81" high straight side.
• Dished top and bottom.
• Top fittings: 20" manway, (3)2", (1) 4", and (1) 10" opening. Has 2" side top inlet
• 2" center bottom drain.

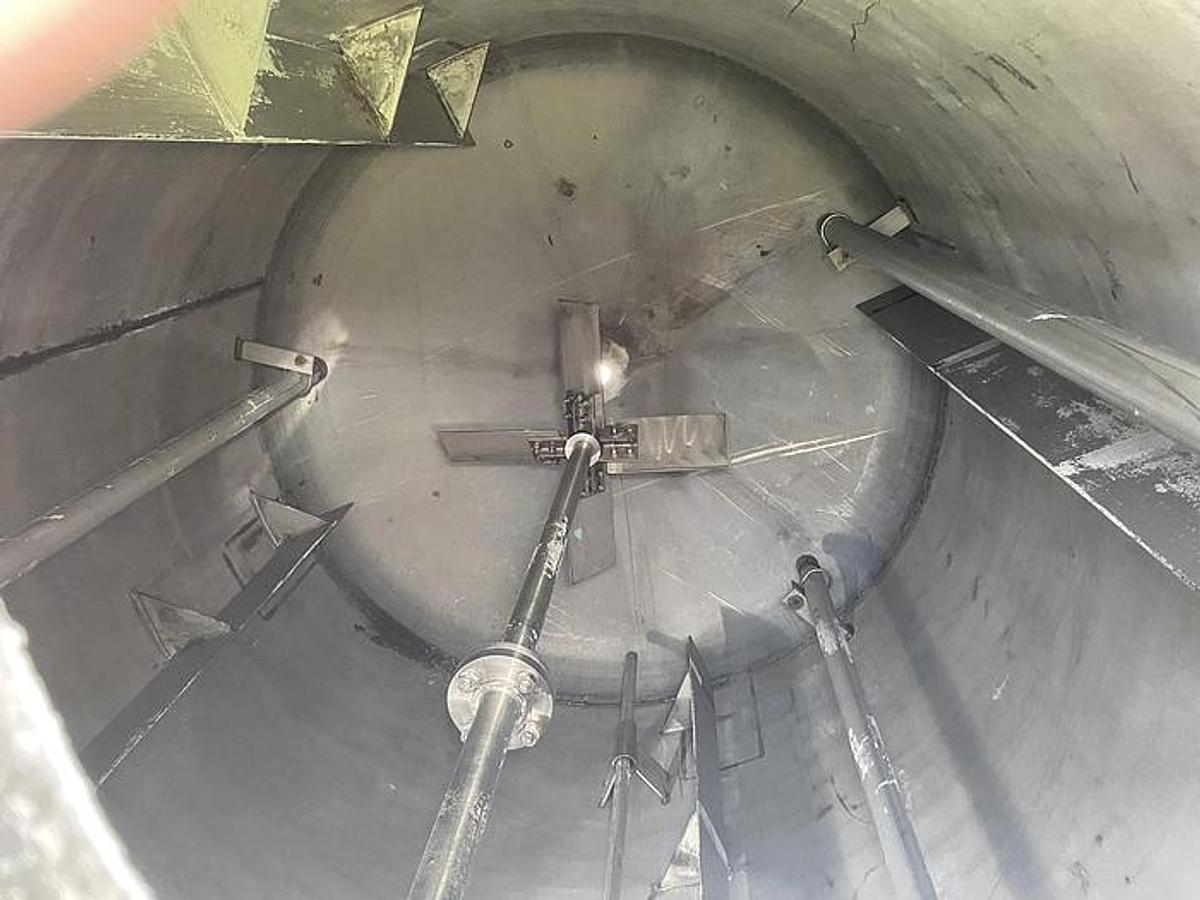

• Has (4) internal baffles.
• Equipped with 4-blade agitator driven by Chemineer Model 1-HTA-2 drive S/N 1-95728-1 rated 1800 RPM input, 84 RPM output.
• Powered by 2HP 3/60/230-460 volt motor.
• Mounted on (4) legs giving 16" clearance.
•
