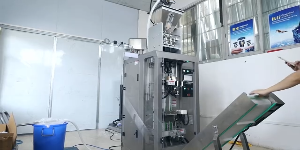

DUAL LANE STICK PACK MACHINE FOR GRANULAR PRODUCT (NEW)

NEW DUAL-LANE STICK PACK MACHINE FOR GRANULAR PRODUCTS

Measuring Method: Swing Cup

Bag Forming Speed: 20-80 cuts/minute

Maximum Film Roll Width: 11.8 in. (300 mm)

Bag Width: 0.59-1.97 in (15-50 mm)

Bag Length: 1.58-7.09 in. (40-180 mm)

Sealing Type: Back Seal

Cutting Type: Round Corner / Straight / Serrated

Power Supply: 200-240Vac, 50/60Hz, 11 kw

Air Consumption: 87-116 psi

Film Thickness: 2.4-3.9 mil

Film Material: OPP/CPP, OPP/PE, BOPP/VMPET/PE, etc.

Machine Overview

• Fully automatic: measures, forms bags, seals, codes, and cuts.

• PLC control with multilingual touchscreen – intuitive, stable, and easy to operate.

• Adjustable parameters during operation,with production speed & batch display, fault self-diagnosis, and storage for 100 product sets. Ethernet port for EMS integration.

• Servo-driven heat sealing and bag pulling – bag length adjustable via touchscreen, accurate and hassle-free.

• Sick photoelectric tracking ensures precise logo alignment on printed films.

• Swing cup filling system – fast, precise (±0.5%) filling.

• All parts in contact with materials are made of high-quality 304 stainless steel, ensuring contamination-free operation and easy cleaning.

Applicable Industries

• Ideal for granular materials in food, pharma, and chemicals – sugar, coffee, herbs, spices, millet, and more.

• Protects against oxidation, mold, spoilage, and moisture, keeping products fresh and extending shelf life.

Working Process:

• Operators load the film onto the unwinding shaft.

• Manual or automatic vacuum feeding supplies the material (linear sensor detects material level: feeding stops when full, resumes when low).

• Screw-type filling and dosing.

• Longitudinal sealing (with easy-tear or round-corner options) and transverse sealing (easy-tear).

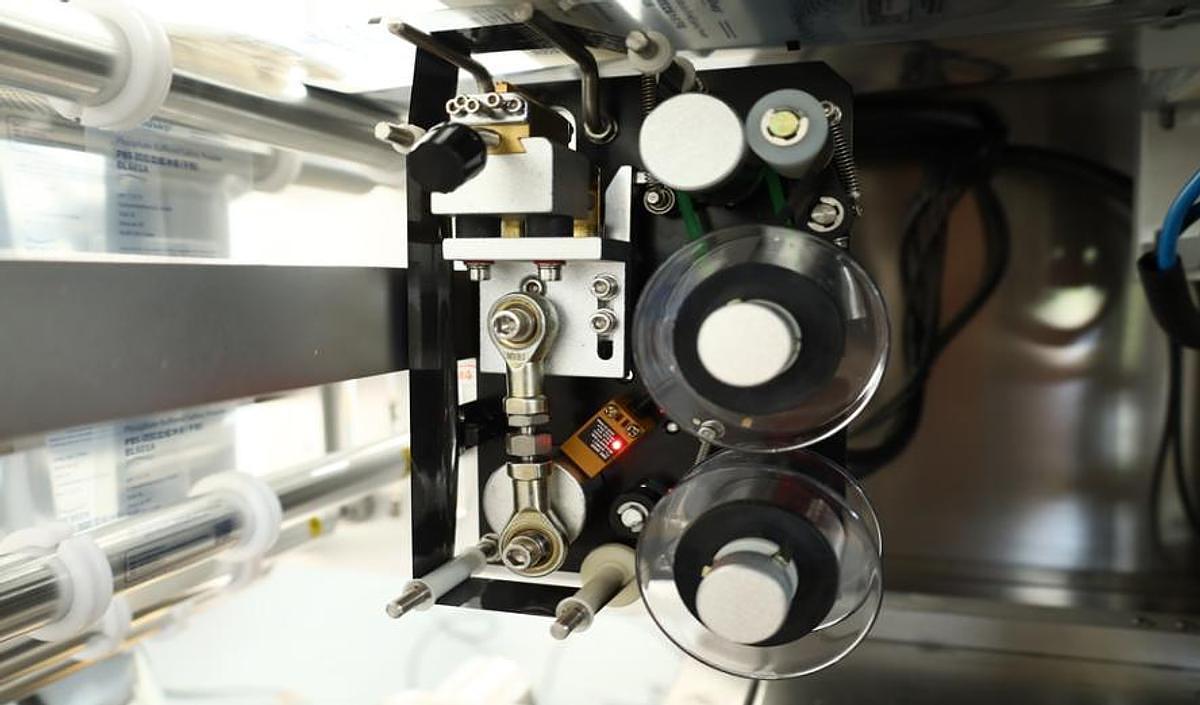

• The machine automatically completes feeding, measuring, discharging, date printing, bag forming, sealing, and cutting

3 Month Lead Time

2 Year Warranty

FOB - Ontario, CA
