65 CU. FT. PAUL O. ABBE DOUBLE RIBBON BLENDER - 304 SS - 30 HP

or
Call 216-409-1394

Description

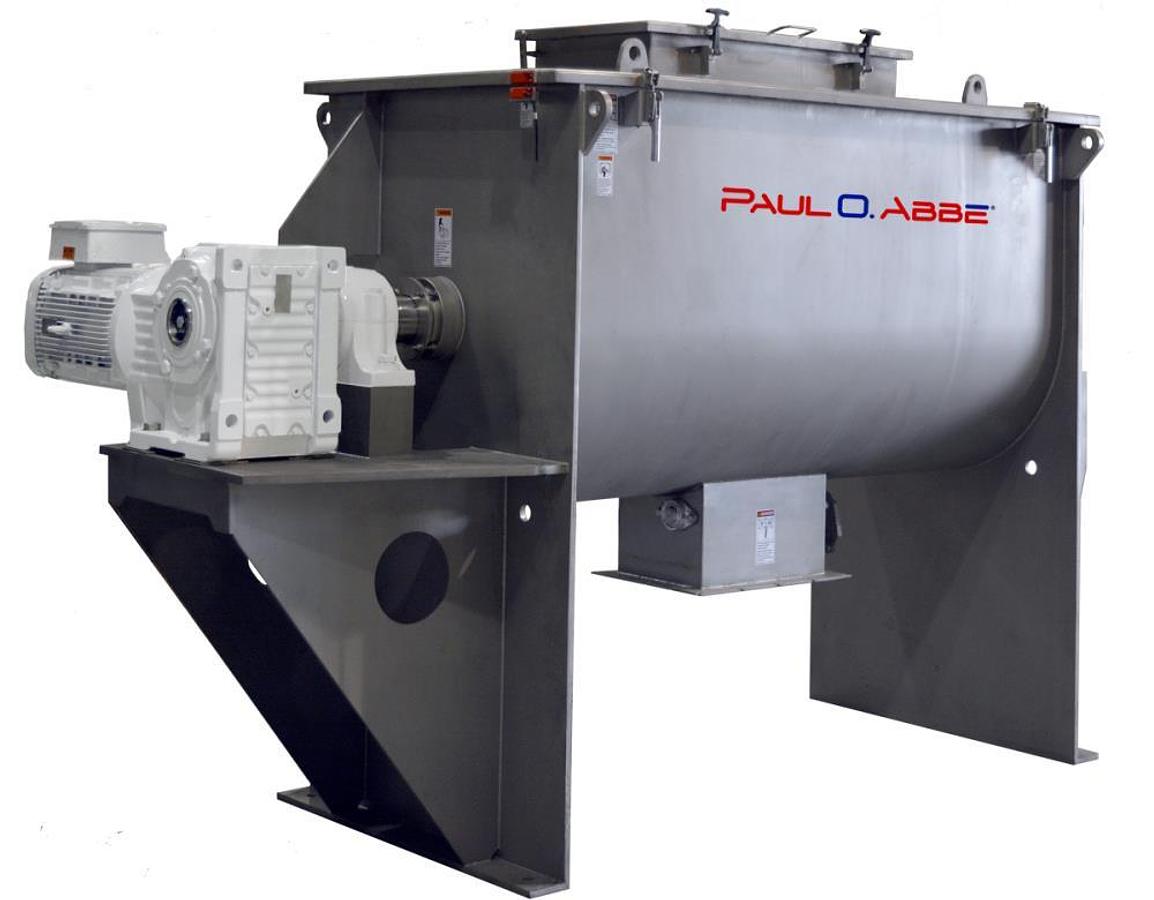

NEW & IN STOCK- Paul O. Abbe Model RB-65 Ribbon Blender.

  • 65 Cubic Foot working capacity, 72 Cubic Foot total volume.
  • Type 304 stainless steel polished.
  • Food grade.
  • All stainless steel construction.
  • Trough dimensions: Approximately 39.4" wide x 78.8" long x 44.1" deep.

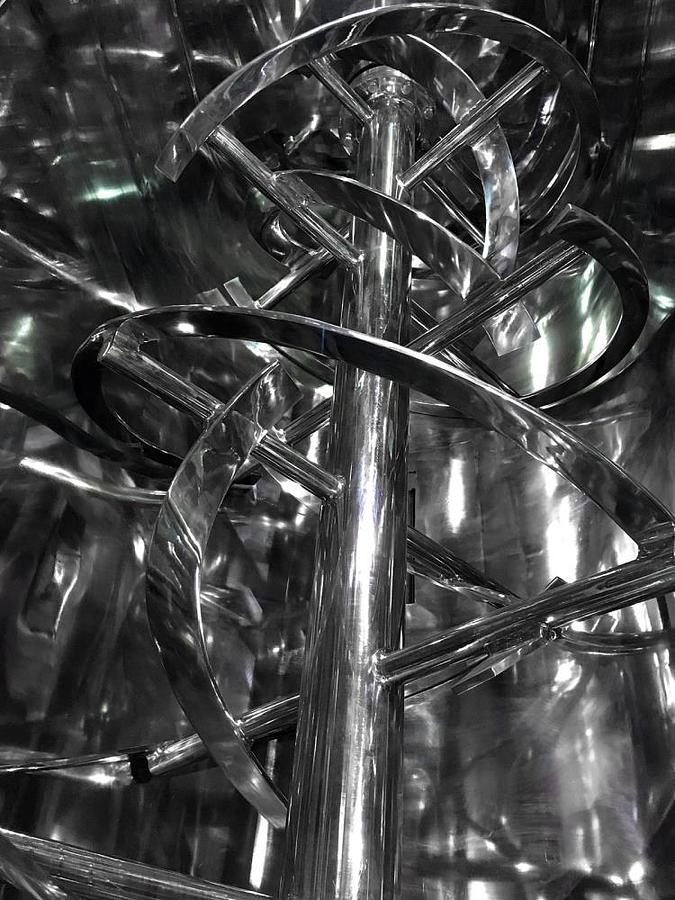

  • Internal double spiral ribbon.
  • Packing glands and pillow block bearings.
  • 30 hp SEW Euro drive hollow bore design. 230/460 volt, 1775 rpm, 3/60 with approximately output 36 rpm.

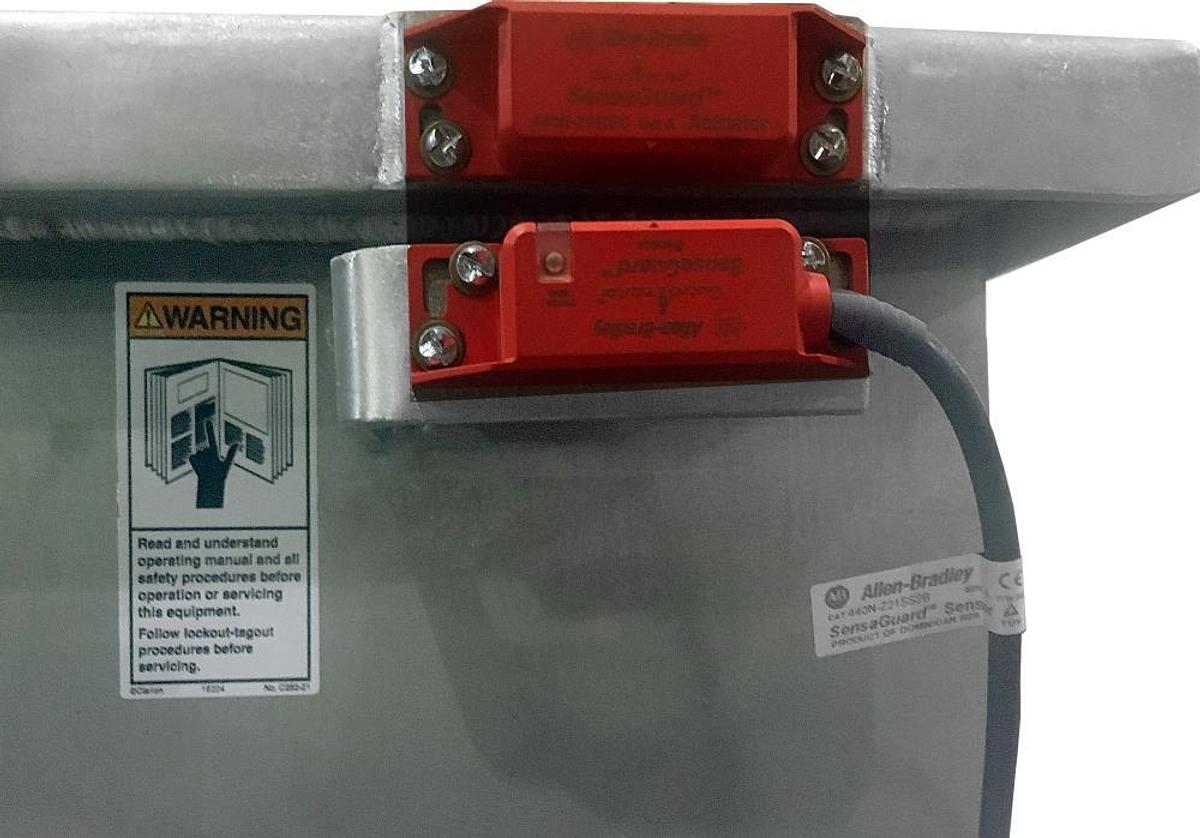

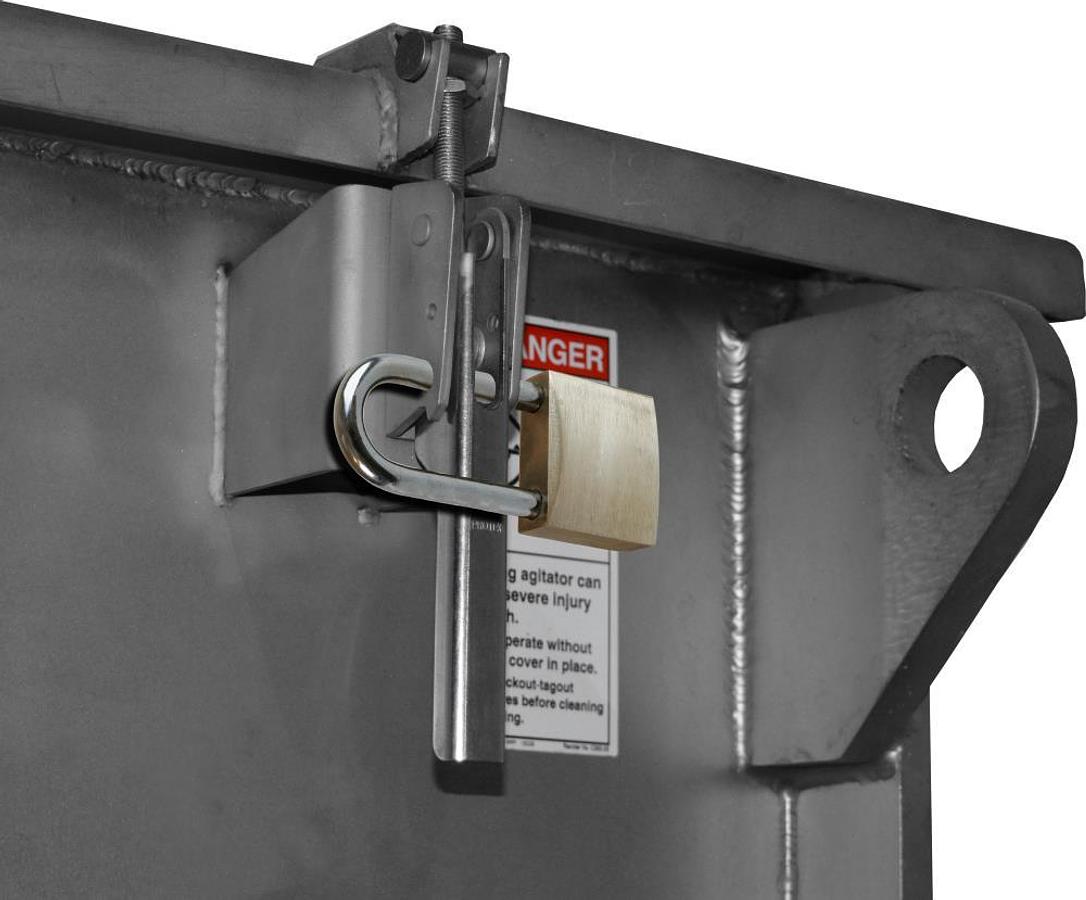

  • Top cover with hold down clamps and limit switch.

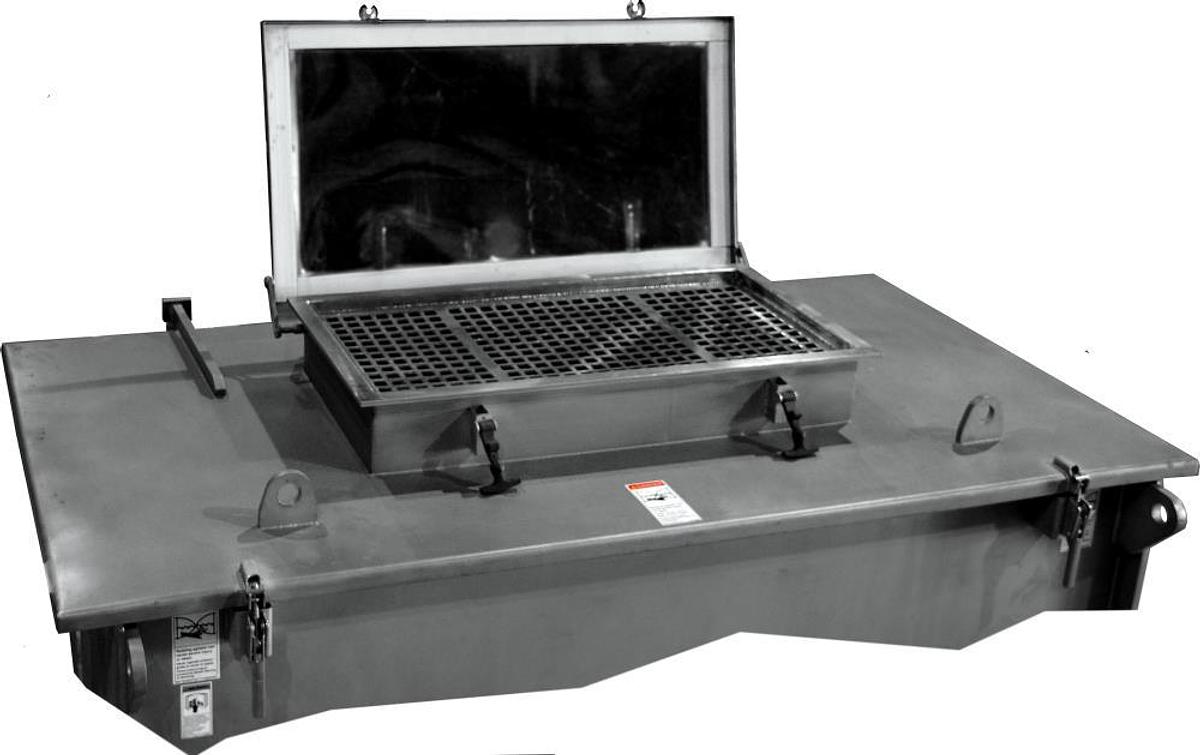

  • Center Loading cover with welded safety grate, 30" wide x 50" long.

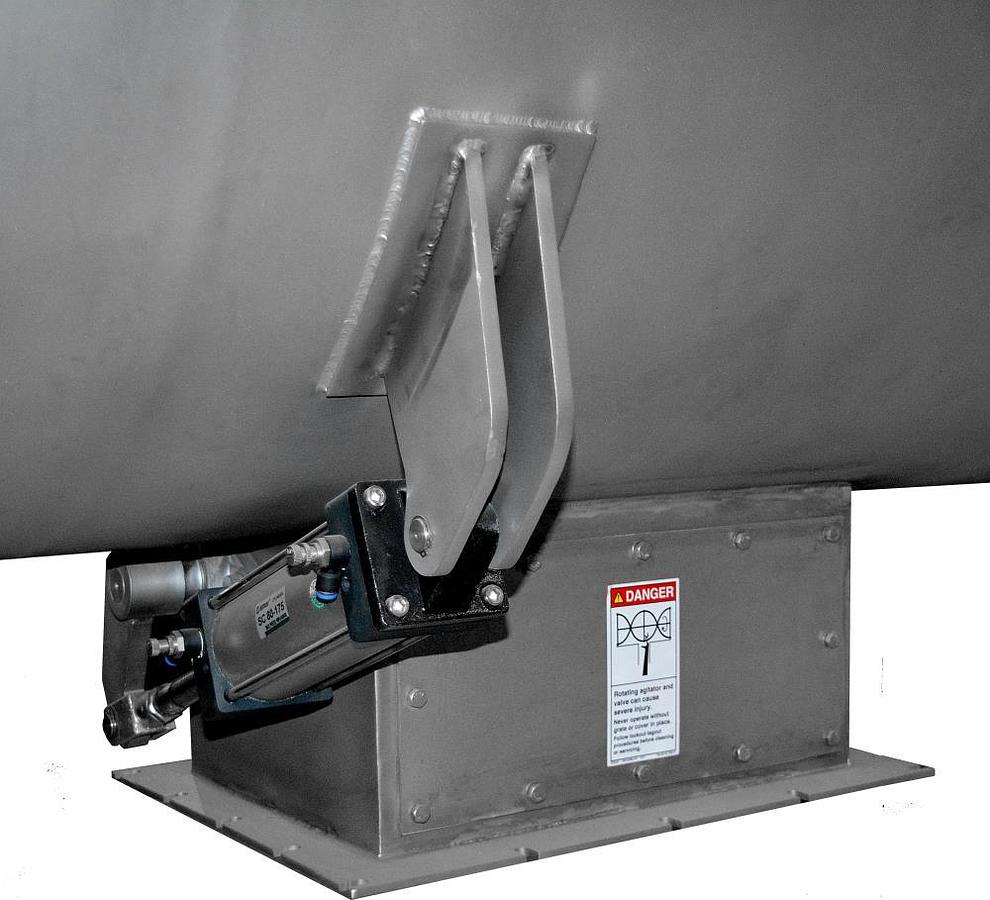

  • Approximate 4.7" wide x 14.2" flush air operated plug valve.
  • Discharge housing is approximately 18.5" wide x 24" long.
  • Approximately 23" discharge height.
  • Approximate weight 5,060 pounds.
  • Approximate overall dimensions: 60.6" wide x 131.4" long x 90.3" high.
  • Controls are available upon request for an additional charge
Show All

Specifications

ManufacturerPaul O. Abbe
ModelRB-65
ConditionNew
Stock Number11585
Size (smallest to largest)65
