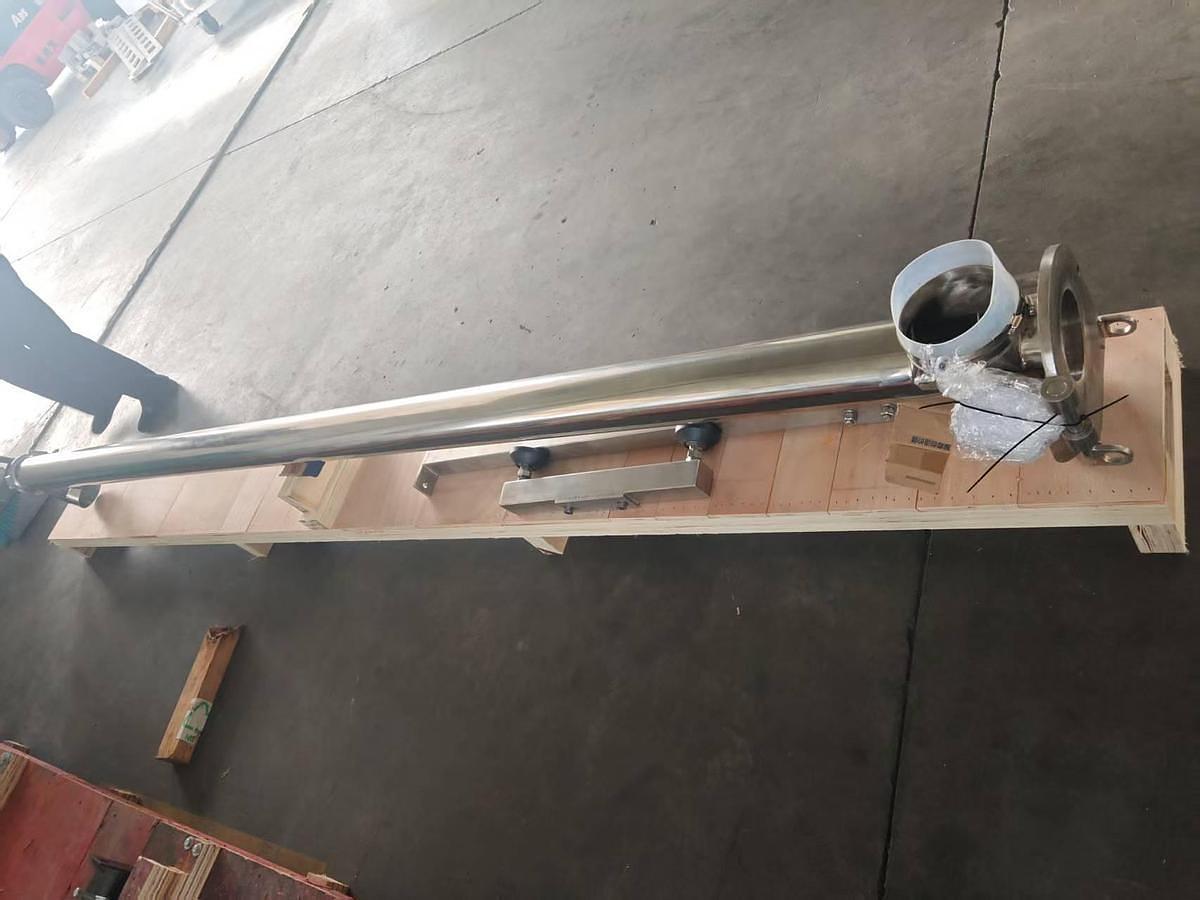

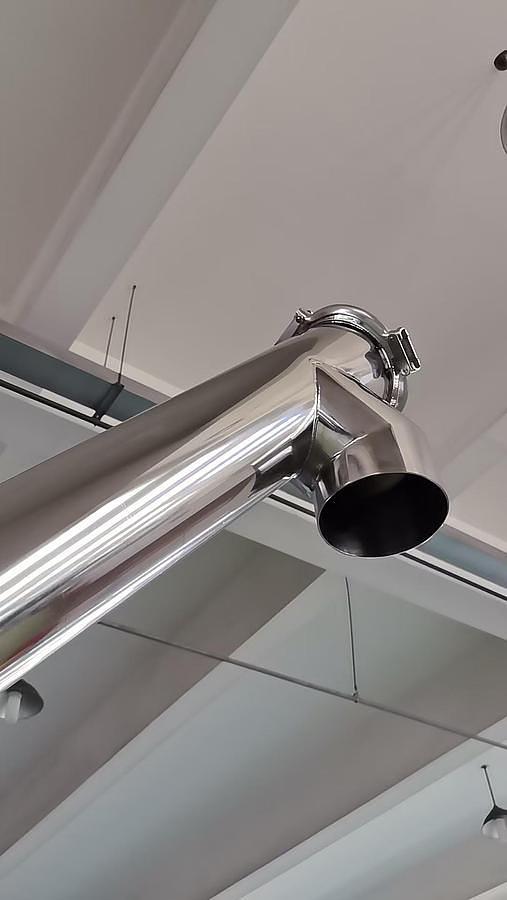

CONICAL HOPPER SCREW FEEDER

CONICAL HOPPER SCREW FEEDER

Spiral Speed: 140 RPM

Conveying Capacity: ≈3m³/h

Hopper Capacity: 60.8 gallons (230L)

Pipe Diameter: 4.5"

Lifting Height: 90.6"

Main Material: 304 stainless steel

Power Supply: 380Vac, 3-phase, 50/60Hz, 2.2 kw

Overall Dimensions: 98.4" x 31.5" x 82.7"

Product Features

Automatic Feeding: The machine automatically starts feeding when the powder filler detects low material levels, ensuring continuous operation without manual intervention.

Stable Operation: Uses screw conveying for reliable and consistent feeding. The structure is simple, easy to maintain, and highly durable.

Fully Enclosed Design: The sealed screw conveyor tube prevents material loss during transport and minimizes dust leakage.

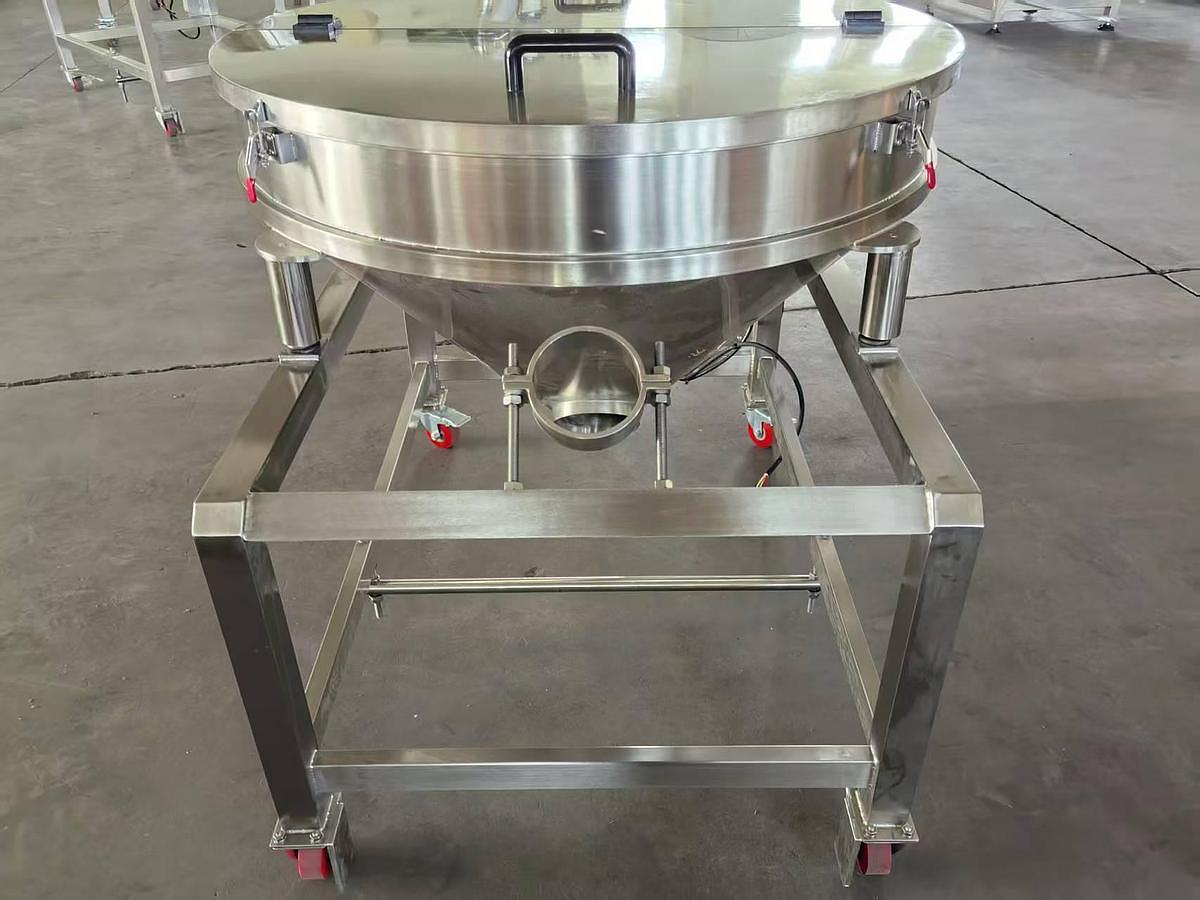

Vibration-Assisted Hopper: Equipped with a vibrating conical hopper to improve powder flow at the feeding inlet and prevent bridging or clogging.

One-Touch Operation: User-friendly interface with one-button start and stop — quick to operate.

3 month lead time

2 year warranty
