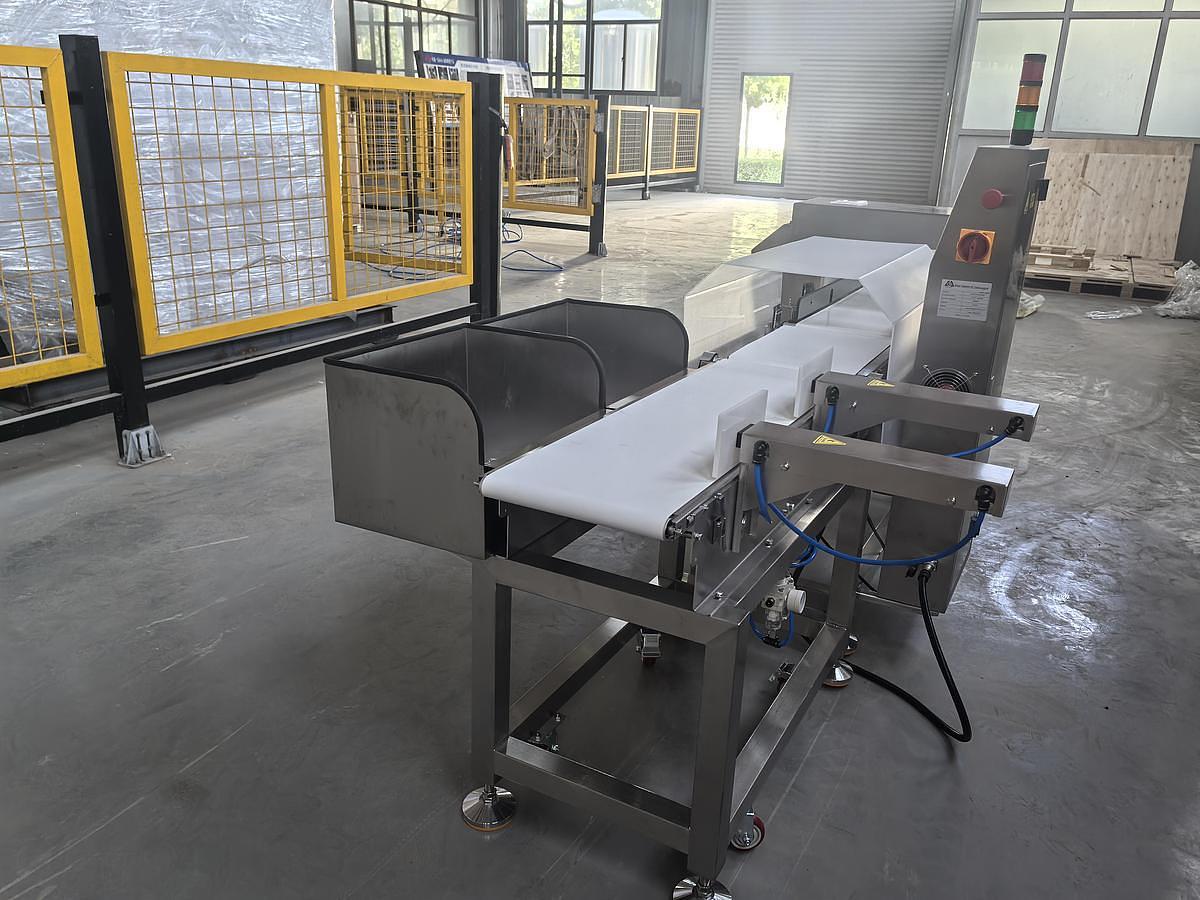

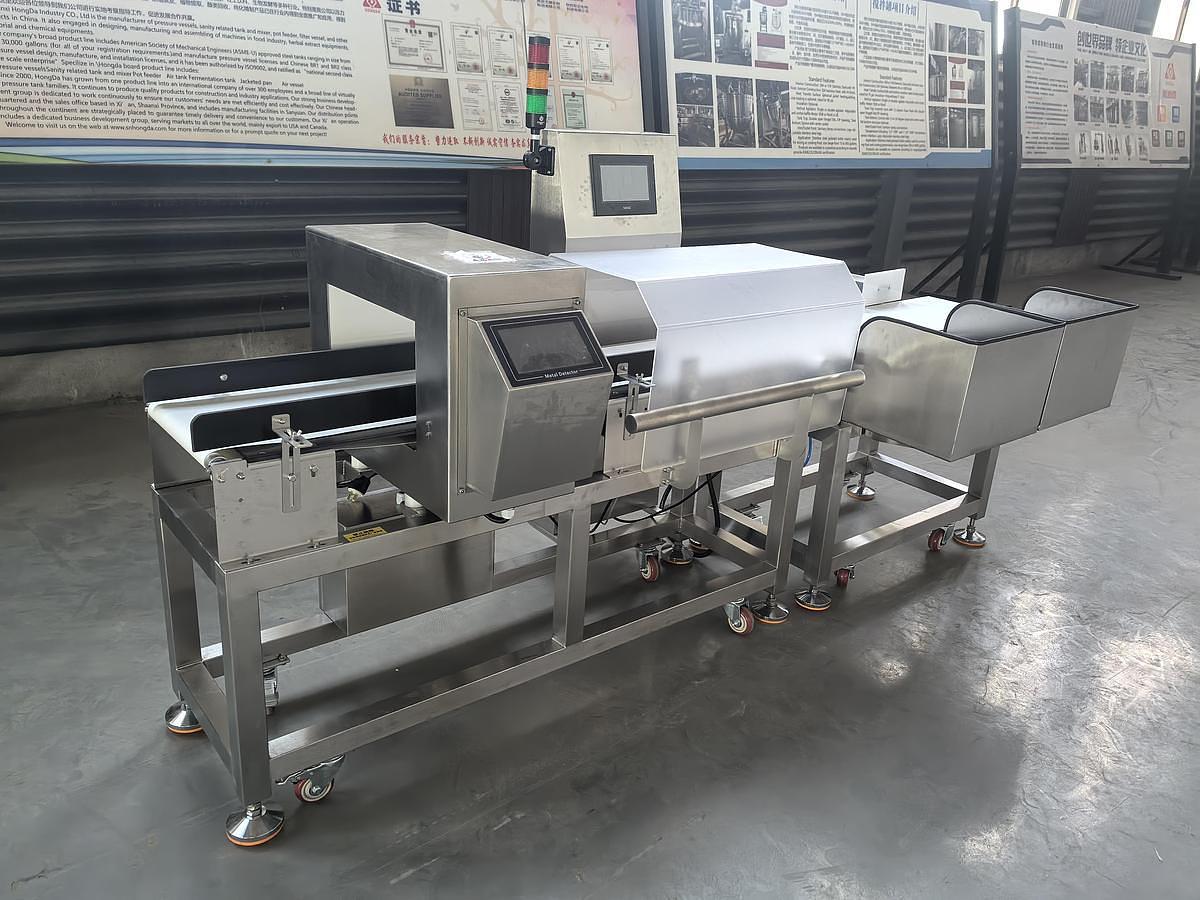

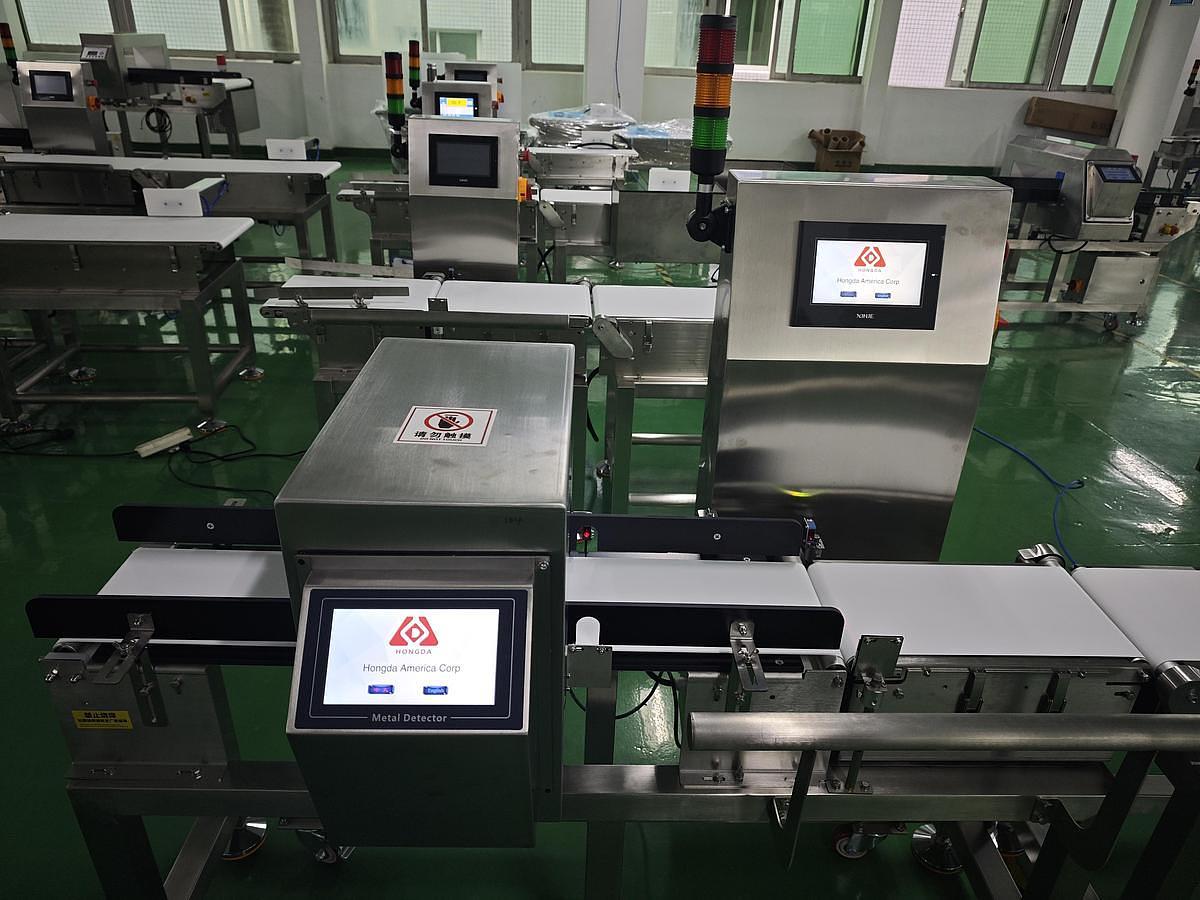

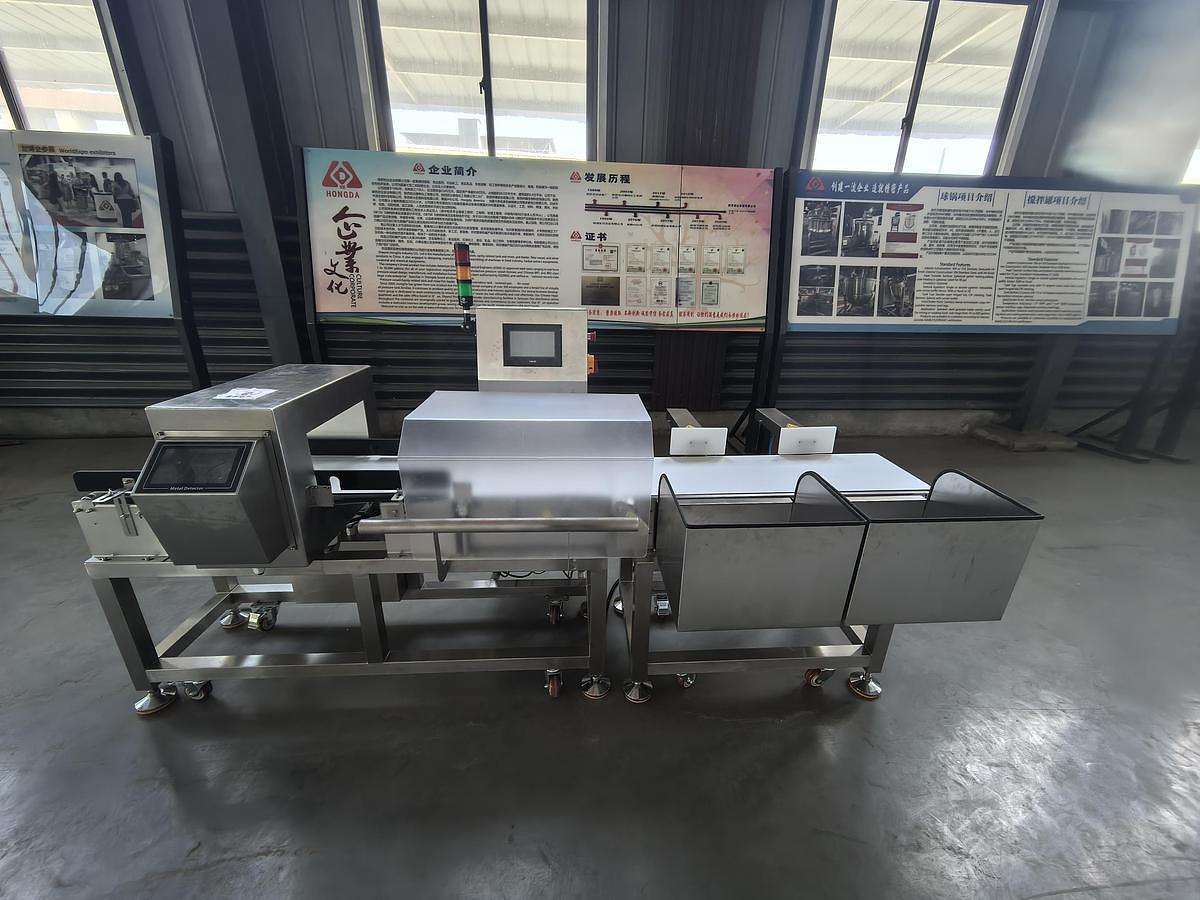

METAL DETECTOR AND CHECKWEIGHER COMBINATION MACHINE CM-300

Model CM-300

Equipment components

Metal Detector CQ-818:

•Application

•Metal foreign object detection for various products, including textiles, plastic products, toys, seafood, food (food additives, seasonings), pharmaceuticals, health products, cosmetics, etc.

•Metals such as iron, copper, aluminum, stainless steel

•Other metal particles can be detected in bulk, bagged, bottled, or boxed products

•Specification

•Detection Window Height: 4.72"/5.91"/7.87" (Optional)

•Detection Window Width: 11.81"

•Maximum Load Capacity: 33 lbs

•Detection Sensitivity (Belt surface under no-load condition):

•FE φ0.03-0.06 inches

•CU φ0.06-0.1 inches

•SUS φ0.08-0.12 inches

•Metal detector length: 39.4 inches

•Weighing table length: 17.7 inches

•Reject section length: 35.4 inches

•Total machine length: approximately 92.5 inches.

•Product Features

•Advanced Technology:High accuracy, stability, and resistance to interference with digital tech and imported chips.

•Versatile & Data Storage:Supports multiple frequencies and stores data for up to 100 products.

•Intelligent Recognition:Auto-adapts to product characteristics, eliminating interference.

•Easy Setup:User-friendly LCD display and simple controls for quick setup.

•Modular Maintenance:Quick and easy component replacement.

•Durable Design: Shockproof, waterproof, and resistant to harsh environments.

•Custom Rejection Devices:Flexible options for rejection systems and body designs.

Checkweigher XP300

• Scope of Application: This product is used to check the weight of individual items, widely applied in industries such as electronics, pharmaceuticals, food, beverages, health products, daily chemicals, light industry, and agriculture.

•Specification

•Weighing platform dimensions:17.7" L * 11.8" W

•Maximum capacity: 6.6 lbs

•Weighing range: 0.35 oz – 6.6 lb

•Highest accuracy: ±0.02 - 0.04 oz.

•Minimum graduation: 0.0035 oz.

•Conveyor speed: 98.4 - 295.3 ft/min.

•Weighing material dimensions: ≤11.8 in (L) × 11.4 in (W)

•Product Features

•Versatile: Standardized structure and interface support various materials for weighing.

• Easy Operation: Color touchscreen with user-friendly design; conveyor belt is easy to disassemble and clean.

• Adjustable Speed: Frequency-controlled motor allows speed adjustment as needed.

• High Speed & Accuracy: High-precision digital sensors ensure fast sampling and accurate results.

• Zero Tracking: Manual or automatic zeroing with dynamic zero tracking.

• Reporting Function: Built-in reporting system generates real-time Excel reports; USB storage for over a year of data.

• Connectivity: Standard interface for easy data management and integration with PCs or smart devices.

• Self-Learning: Automatically sets optimal parameters for new products and stores up to 2,000 configurations. FOB California . .

3 month lead time

2 year warranty
