50 GALLON LEE DOUBLE MOTION VACUUM KETTLE WITH MOKON HEATER
or
Call 216-409-1394
Description

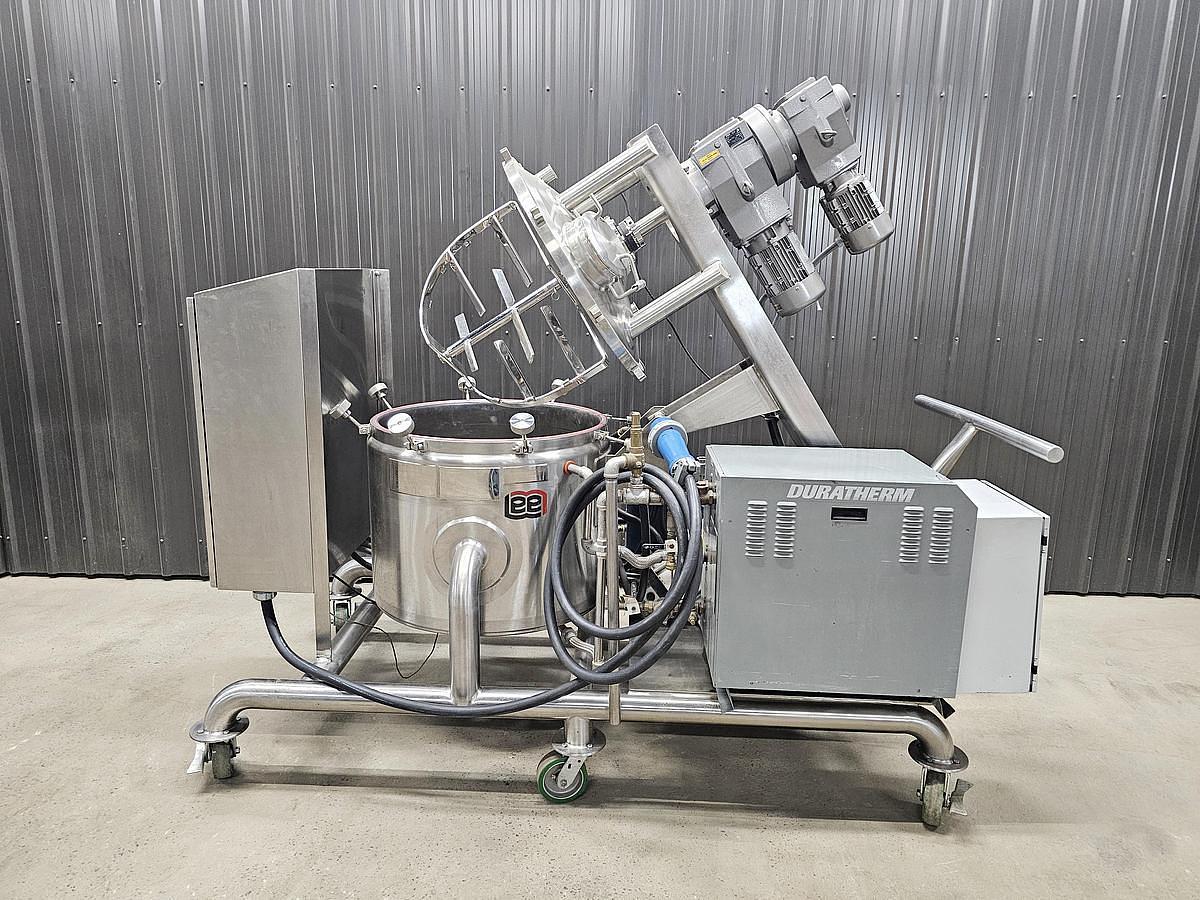

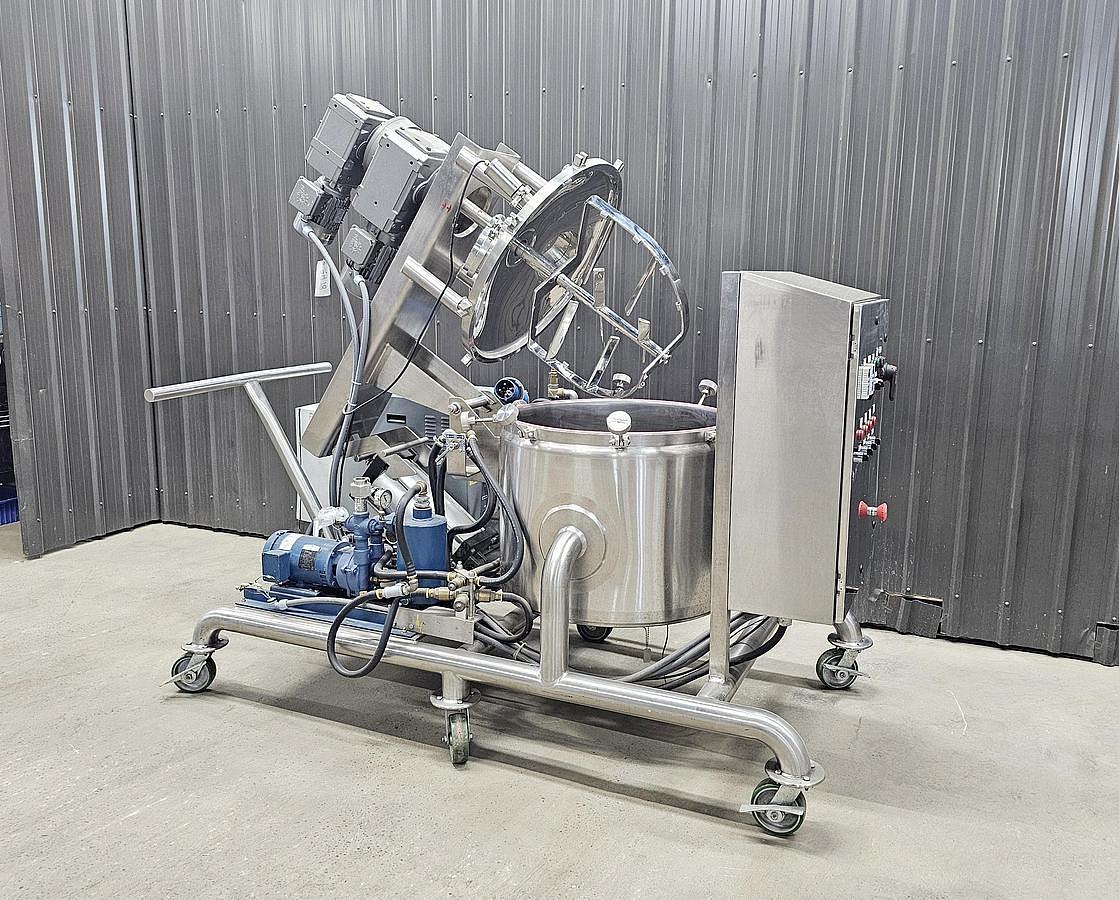

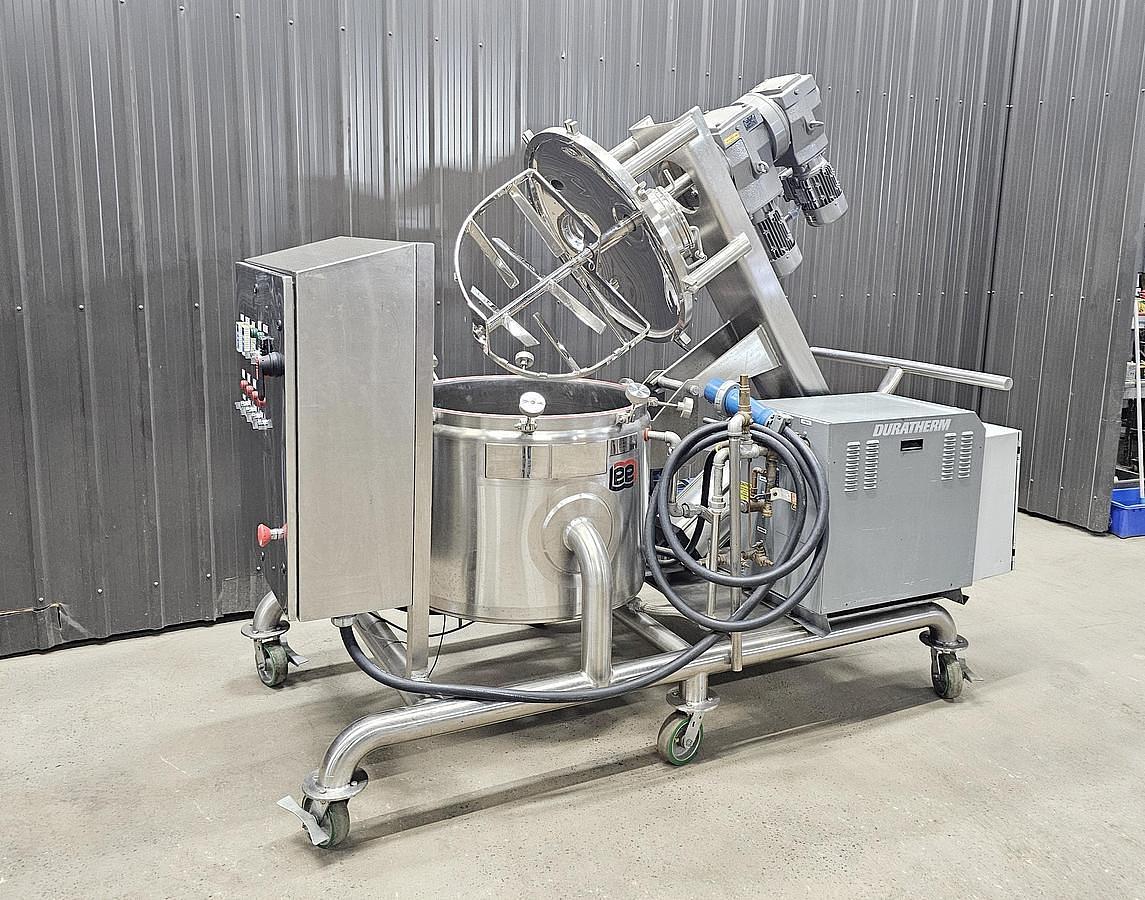

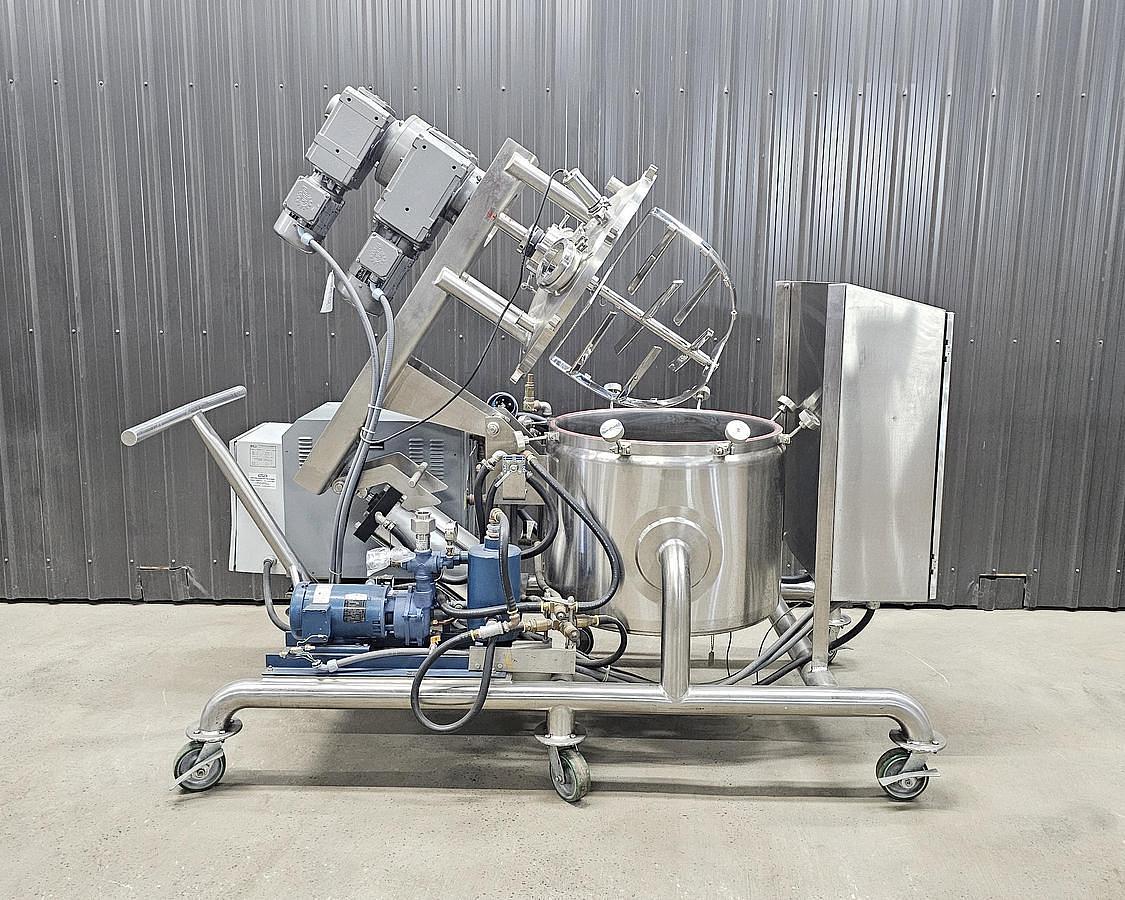

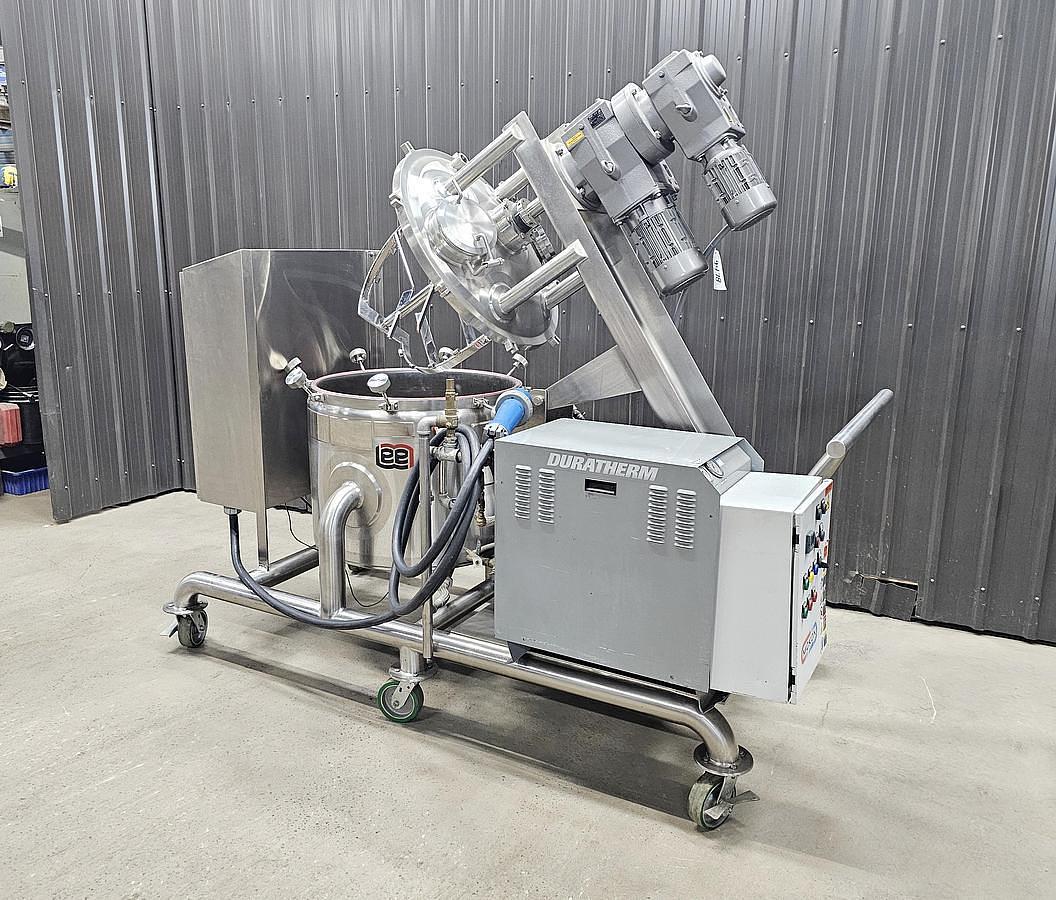

50 GALLON LEE DOUBLE MOTION VACUUM KETTLE

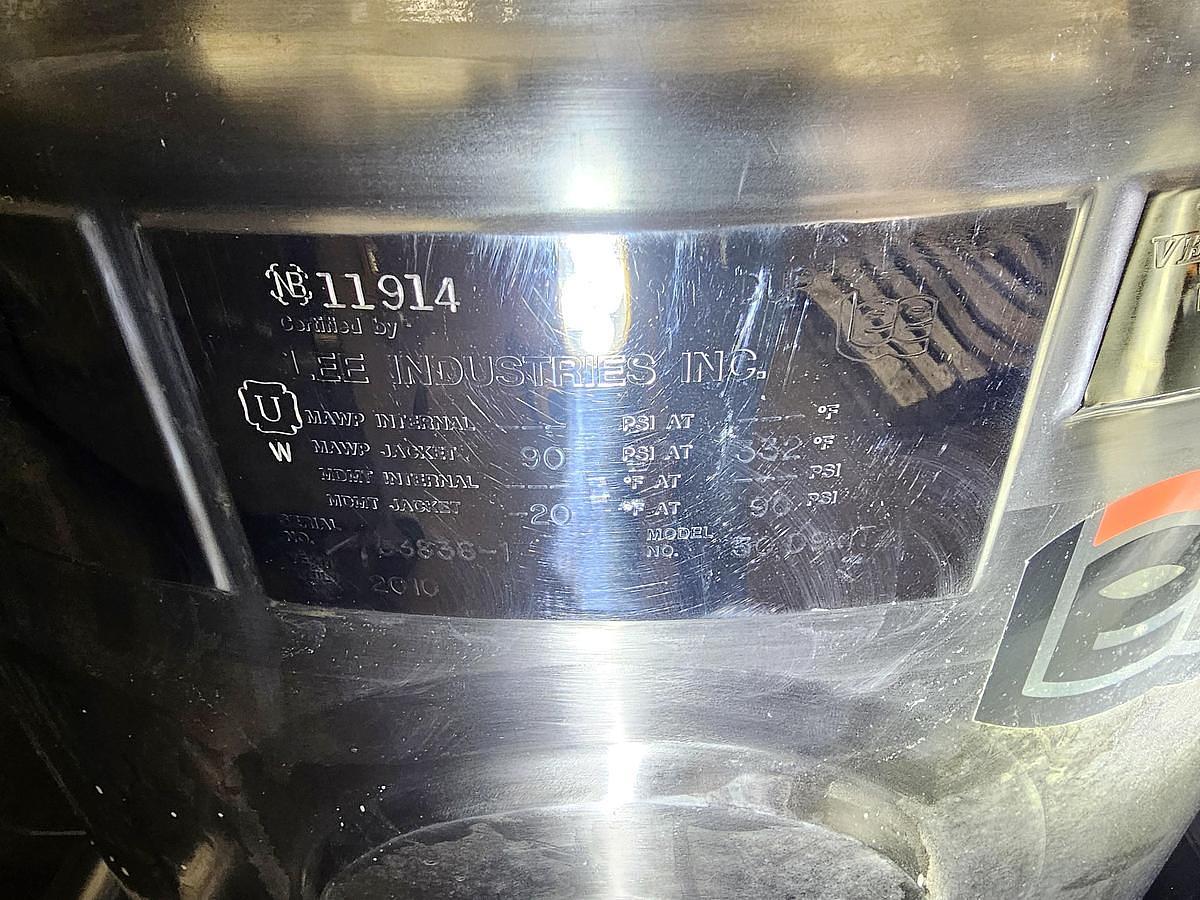

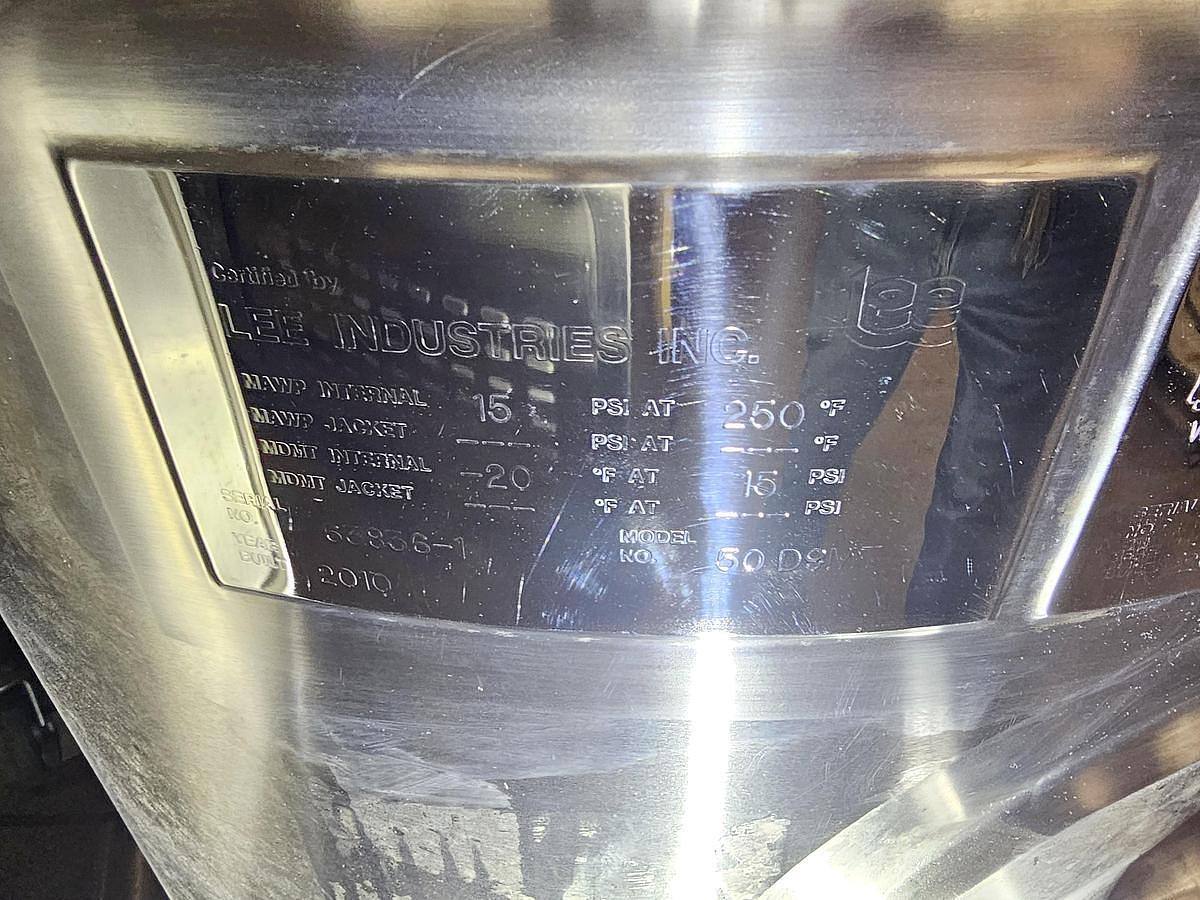

- National board number: 11914
- MAWP jacket: 90 PSI at 332 F
- MDWT jacket -20 F at 90 PSI
- MAWP internal 15 PSI at 250 F
- MDMT internal -20 F at 15 PSI
- Designed for vacuum service

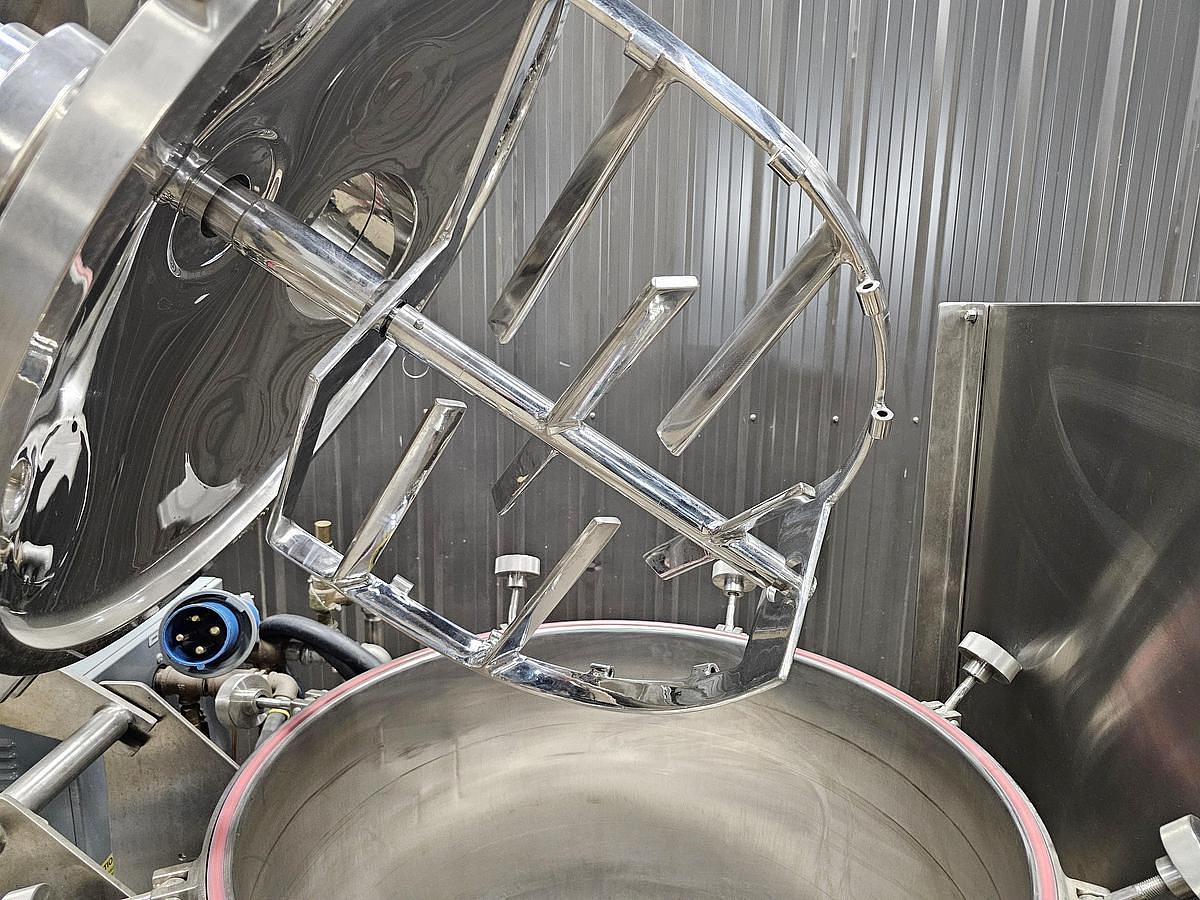

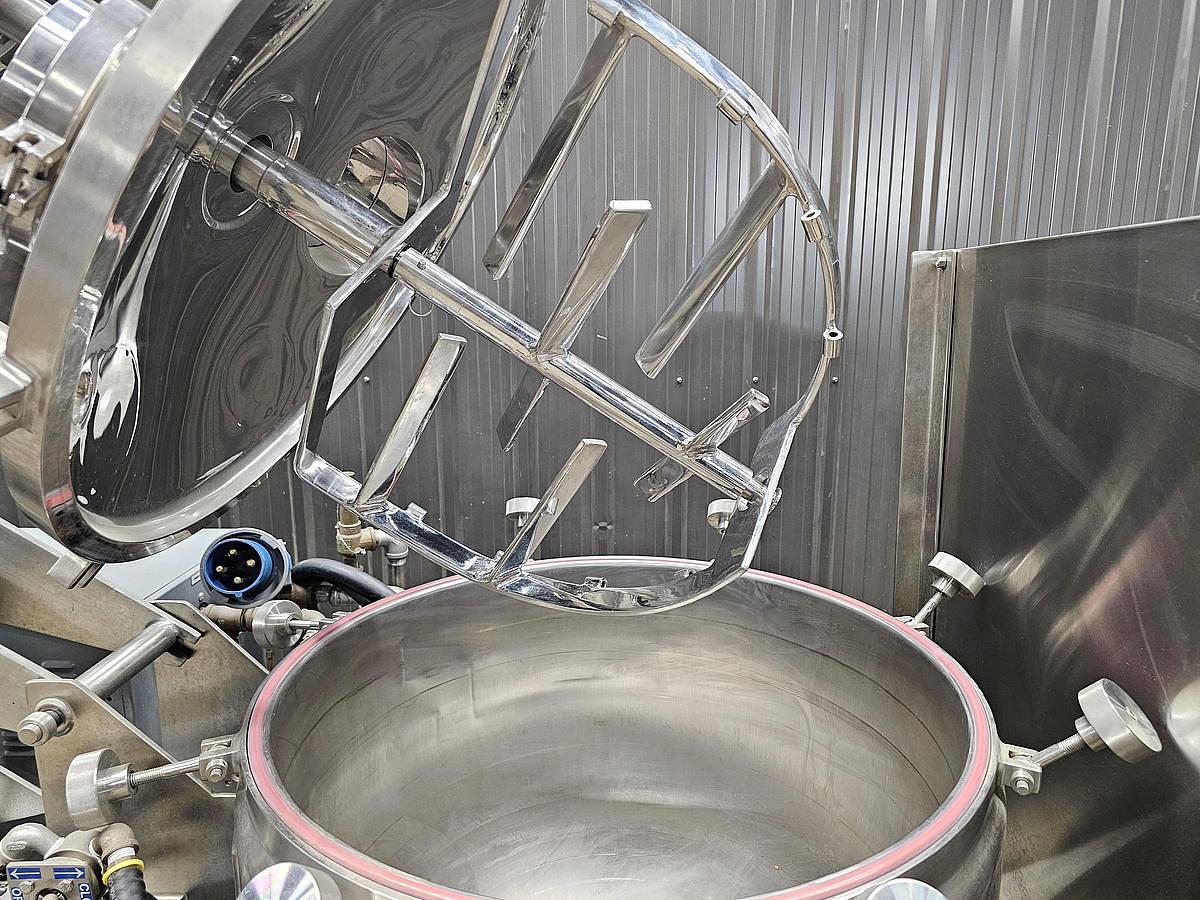

- Can be converted to scrape agitation with sourcing of poly scrappers

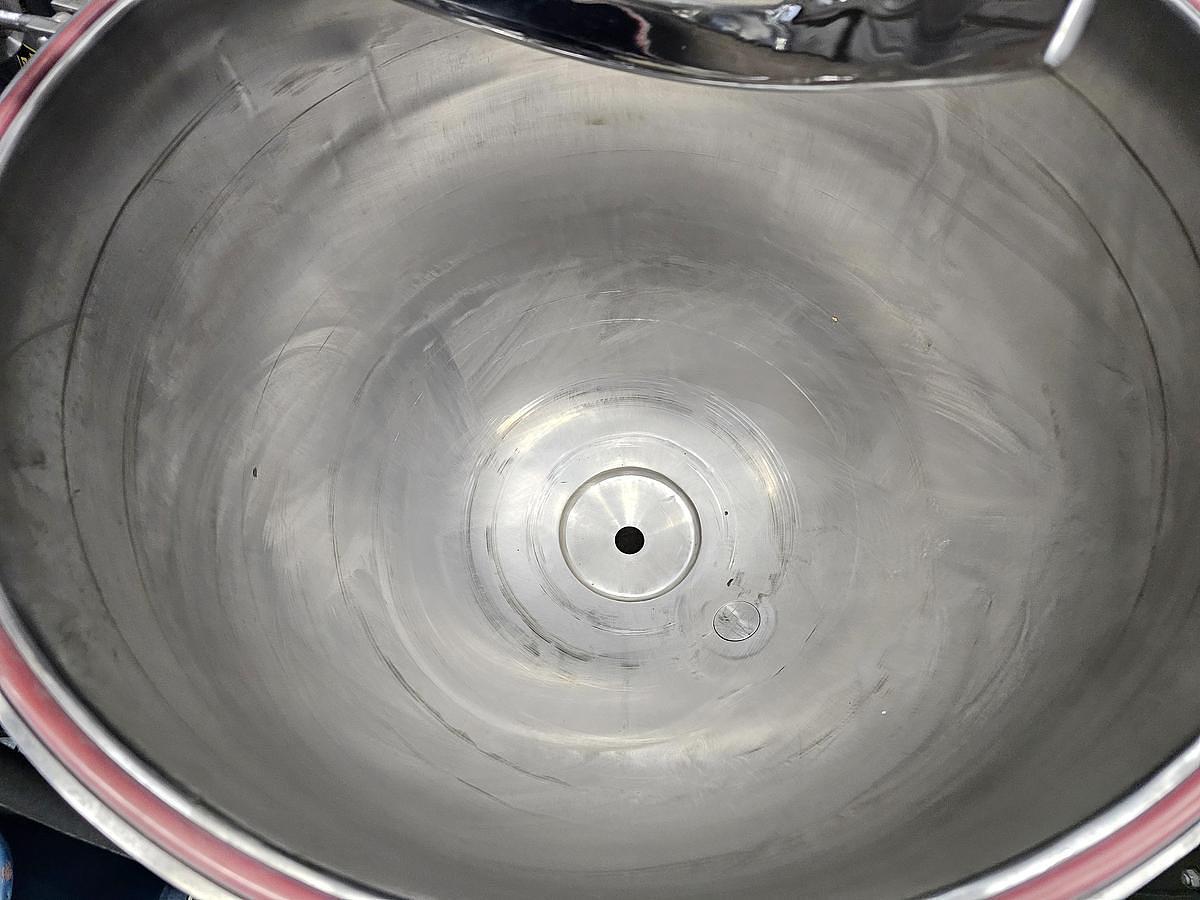

- Interior dimensions: 30'' diameter x 24'' height
- Top inlet: 2 x 1.5'', 1 x 6'' 1 x 2'' 1 x 8'' tri-clamps

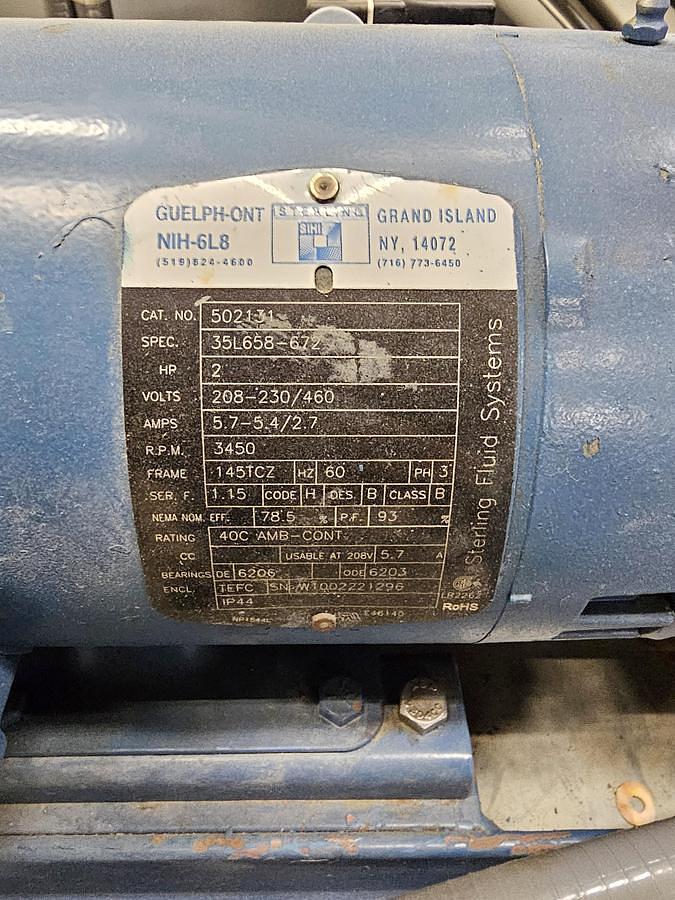

- Pump motor: 2 hp, 208-230/460 volts, 3450 rpm

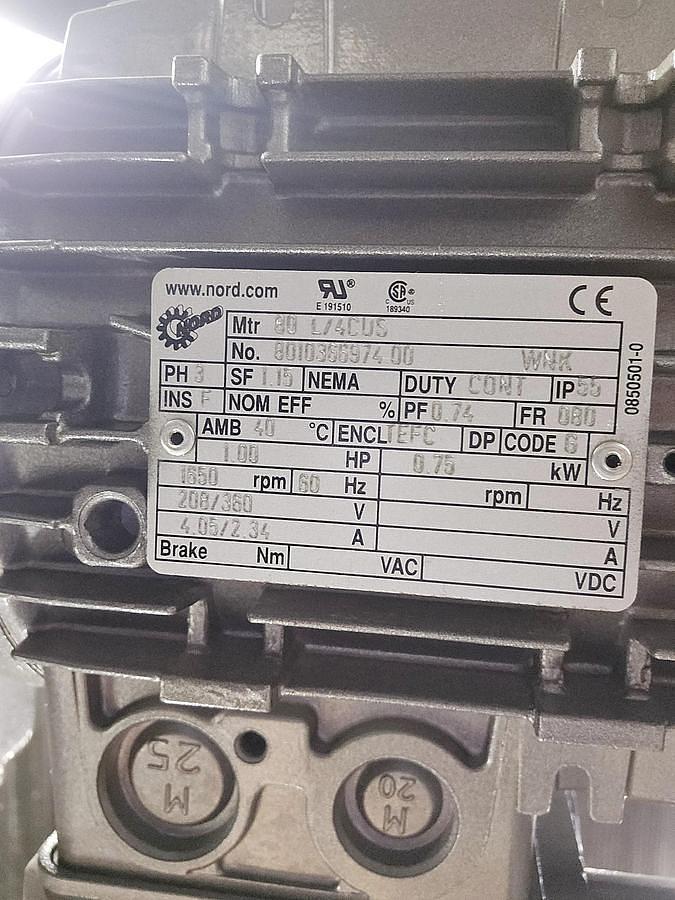

- Counter current agitator motor: 1 HP, 208/360 volts, 1650 rpm

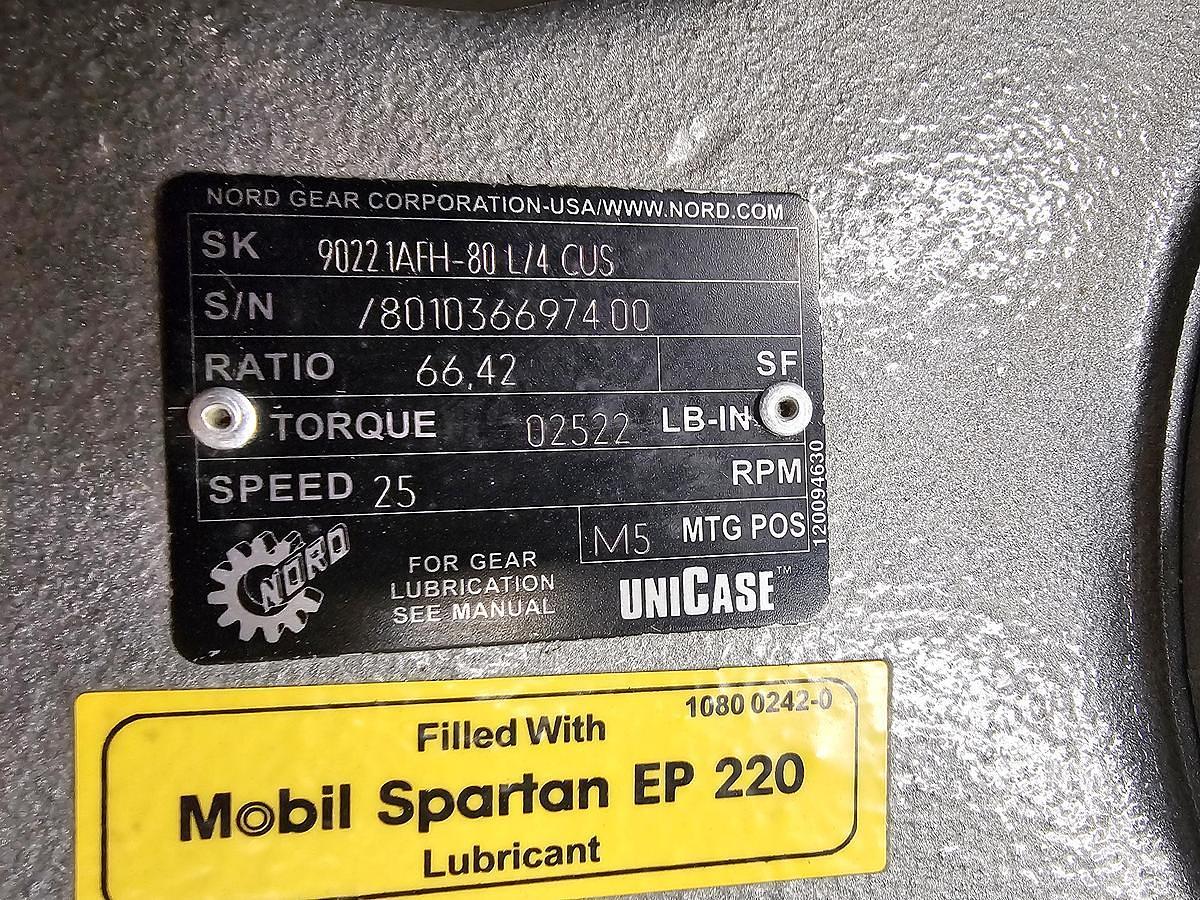

- Gearbox: 66.42 ratio with 25 rpm output
- Scrape agitator motor: 2 hp, 208/360 volts, 1660 rpm

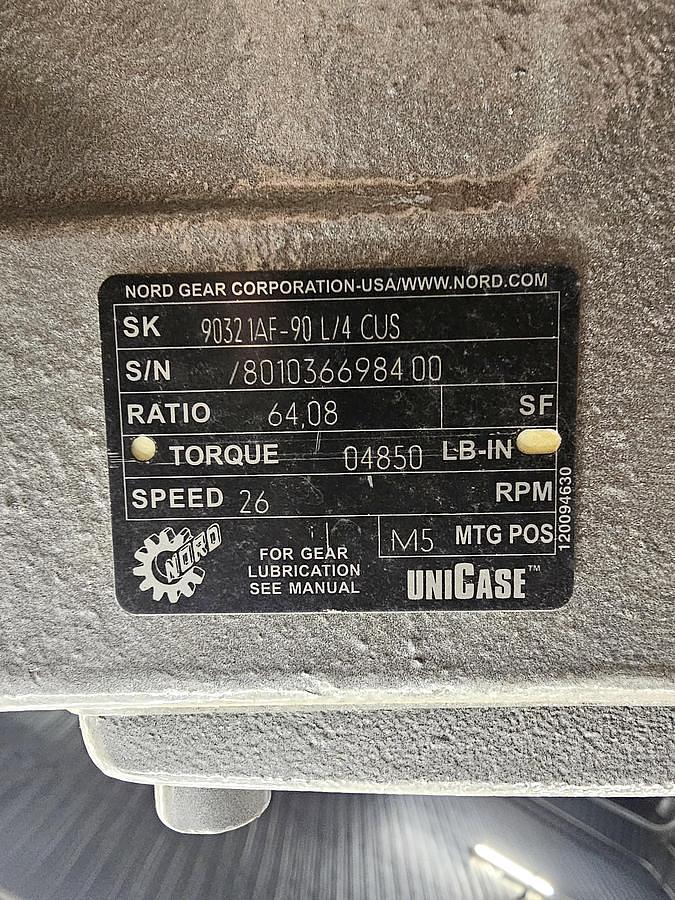

- Gearbox: 64.08 ratio with 26 rpm output
- With variable speed motor controllers

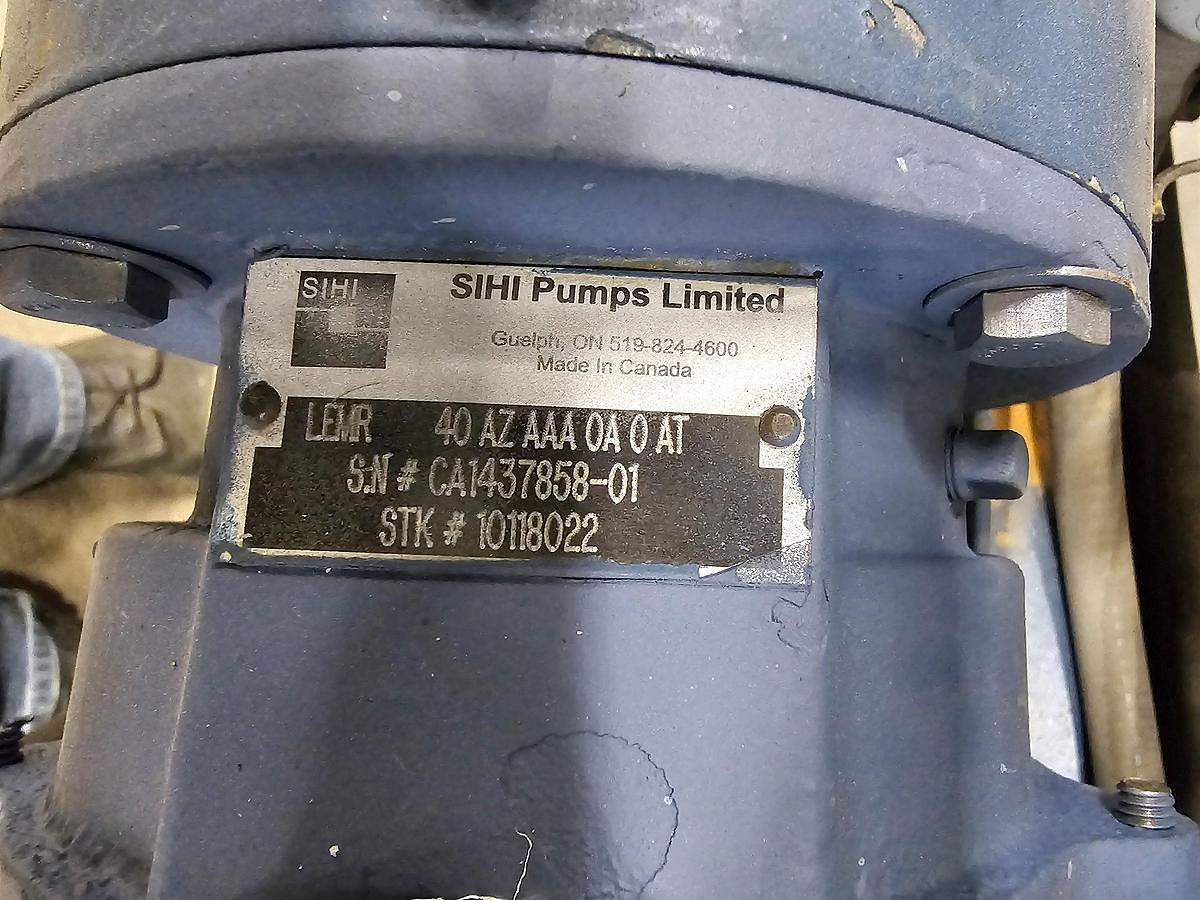

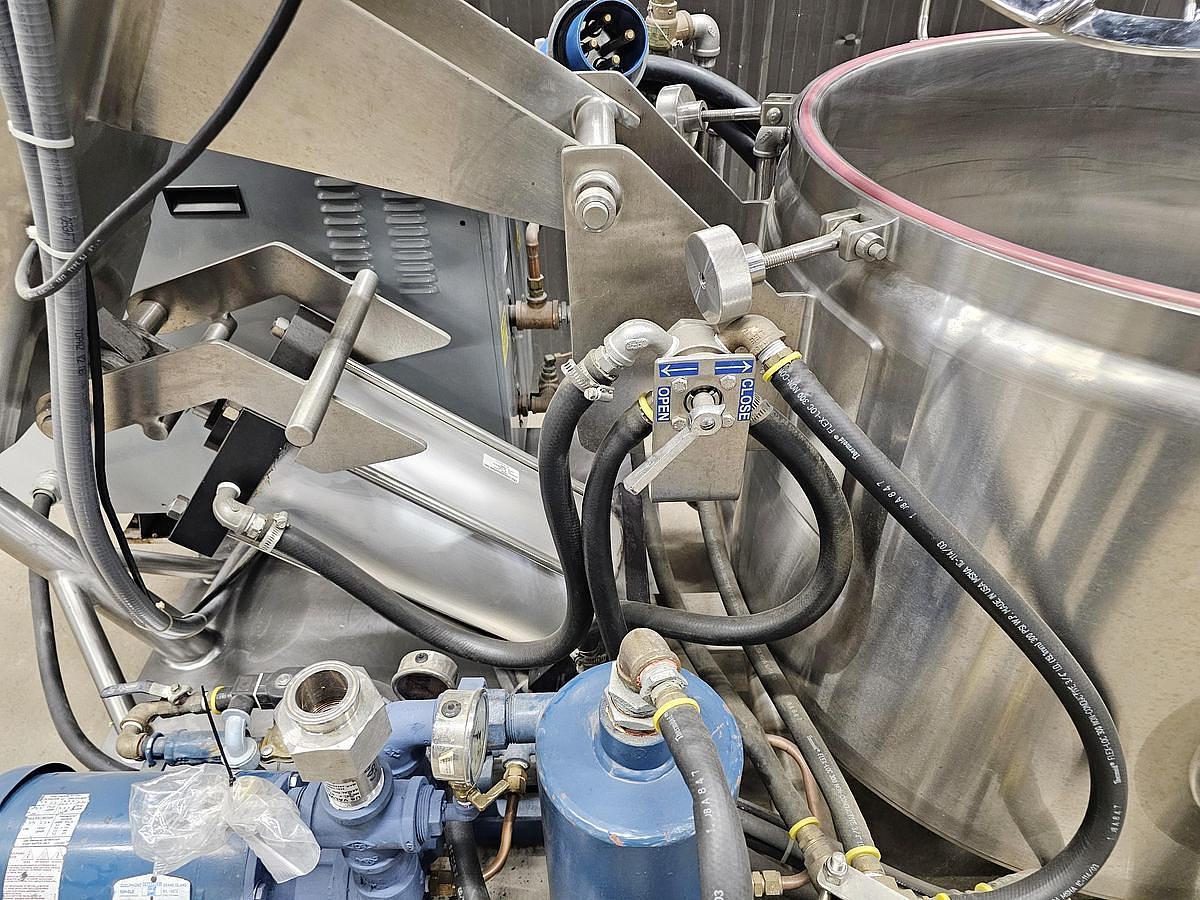

- With Sihi vacuum pump

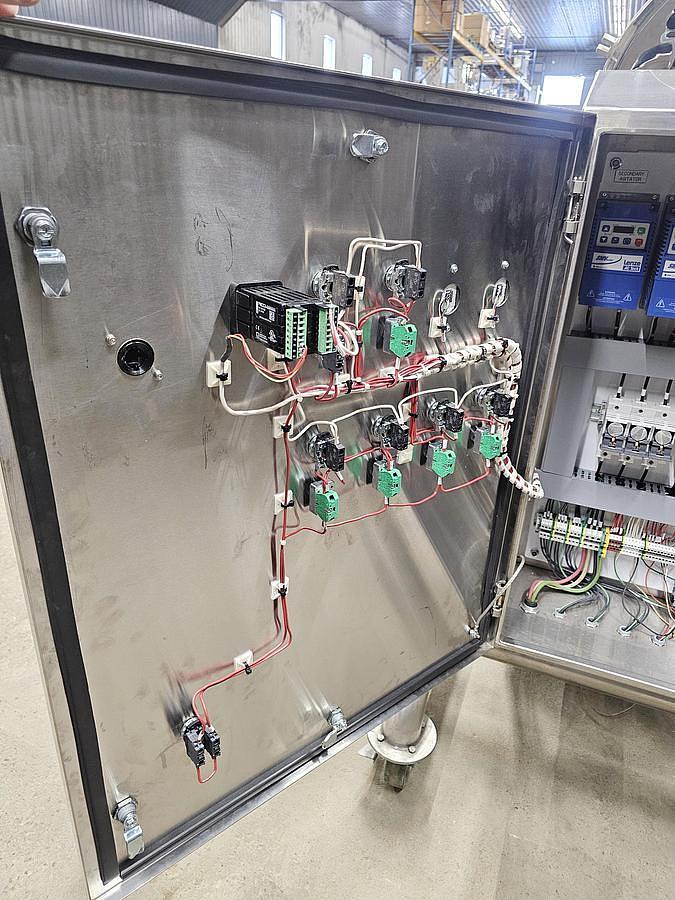

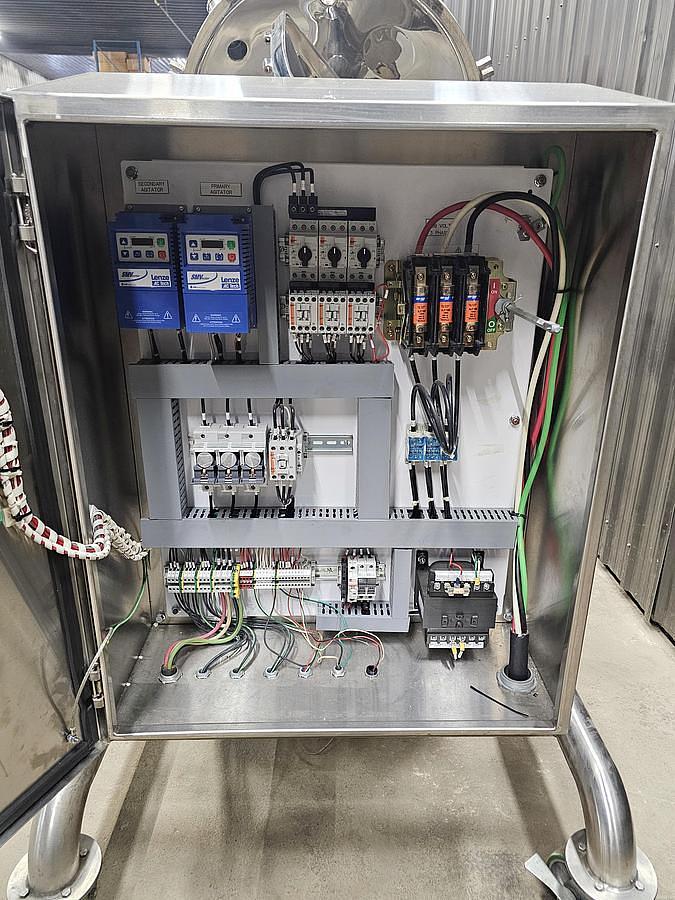

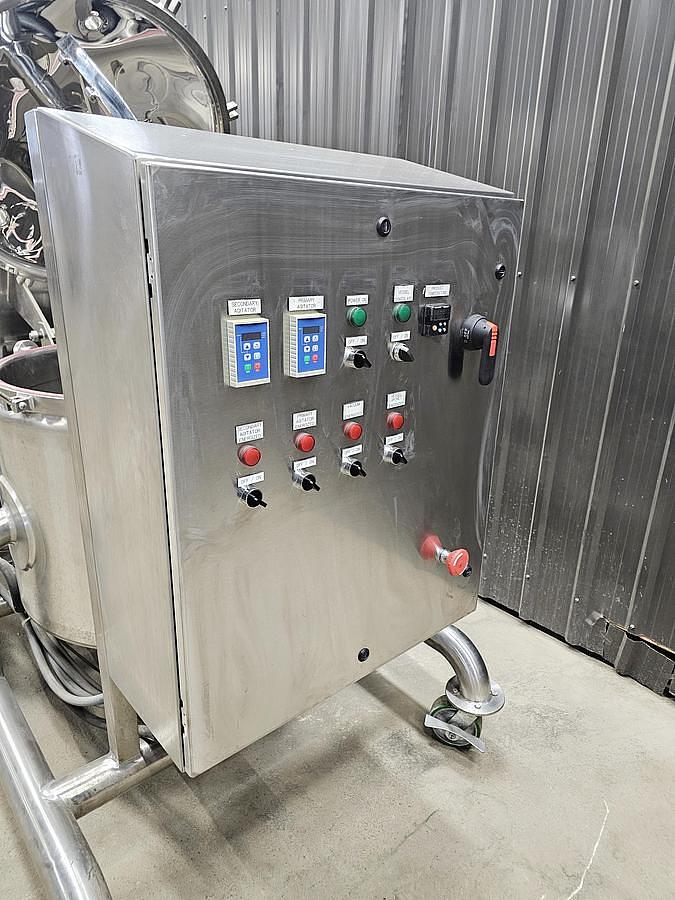

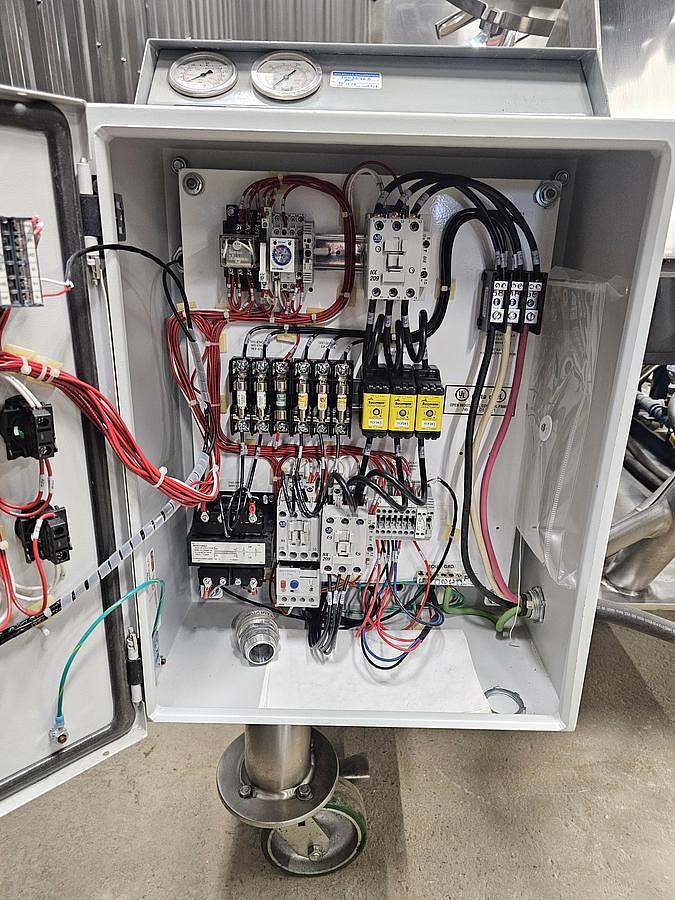

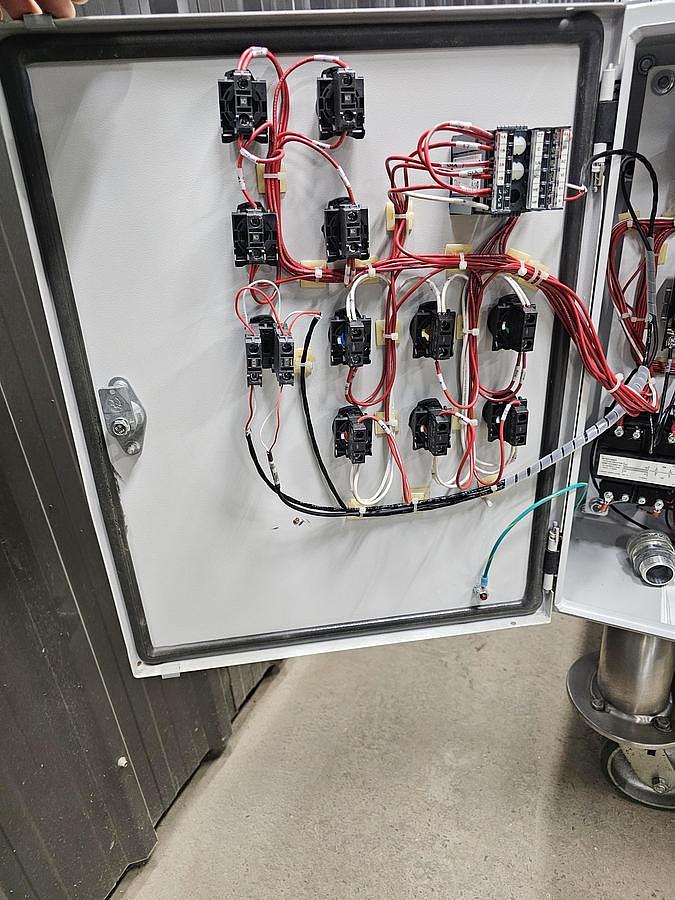

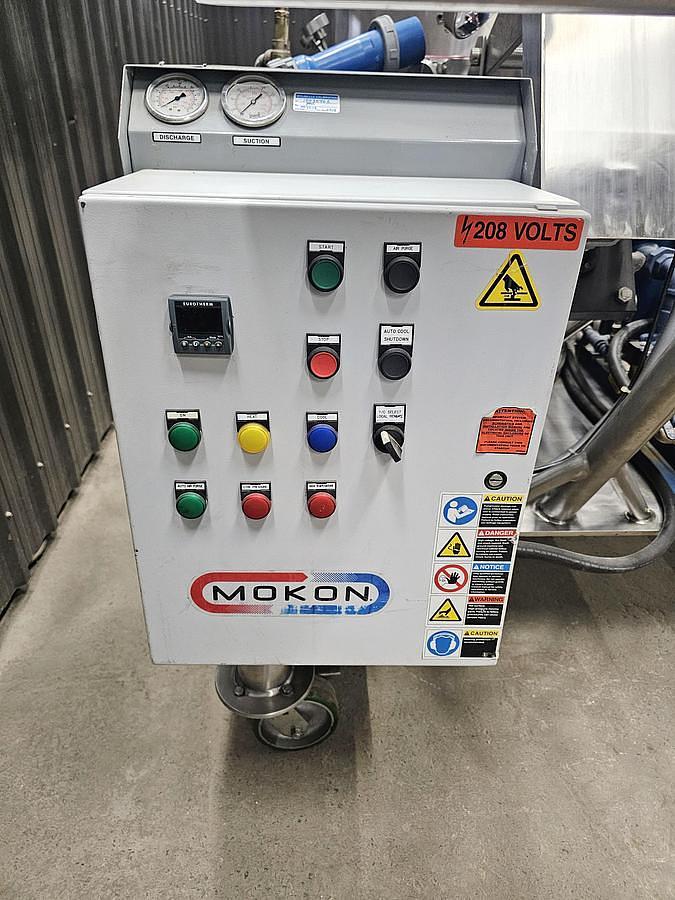

- With one control panel for kettle controls and one control panel for jacket temperature control

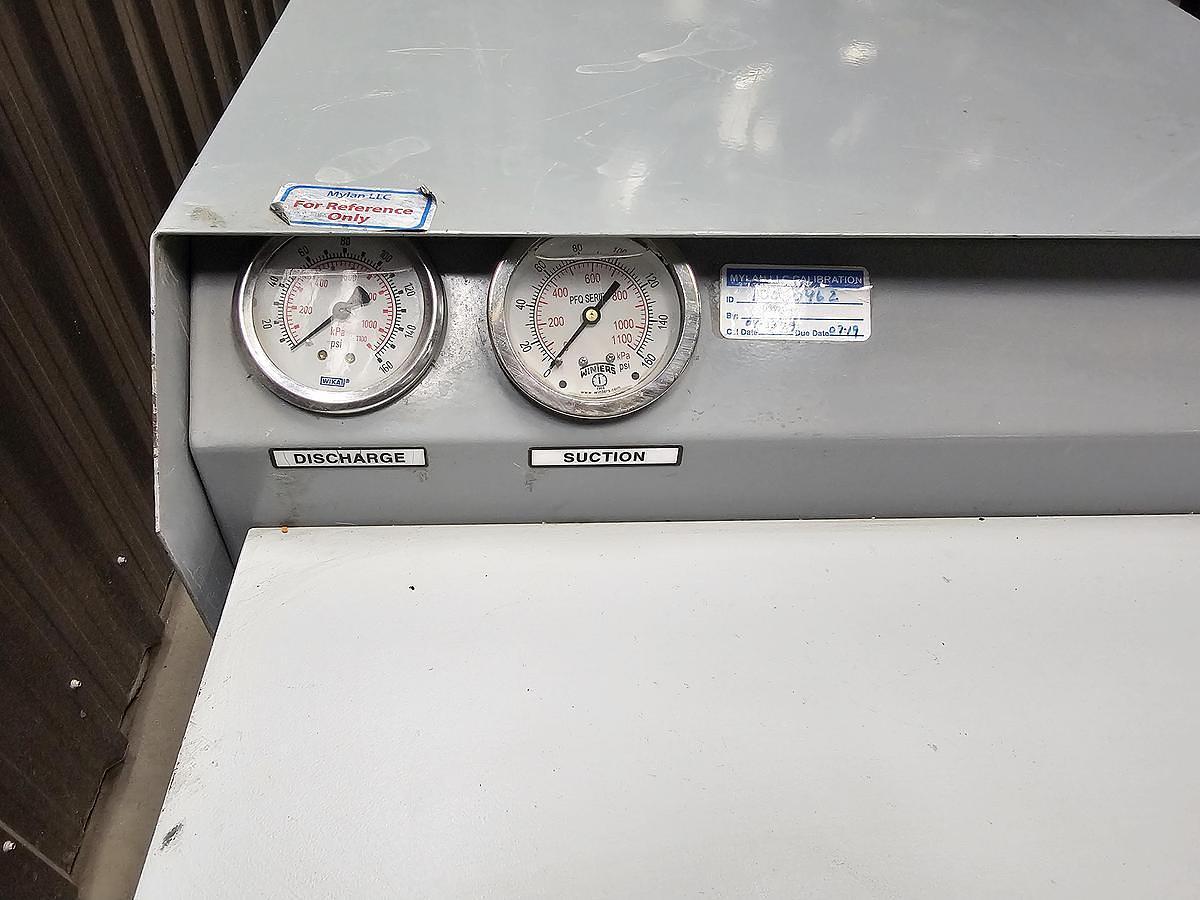

- With Mokon's Duratherm cirulating water temperature control system
- Power requirements: 208 volts
- Shipping information: 54'' wide x 102'' long x 90'' high
- Previous use: Pharmaceutical Application
Specifications
| Manufacturer | Lee Industries |
| Model | 50D9MT |
| Condition | Used |
| Serial Number | 63836-1 |
| Stock Number | 11645 |
