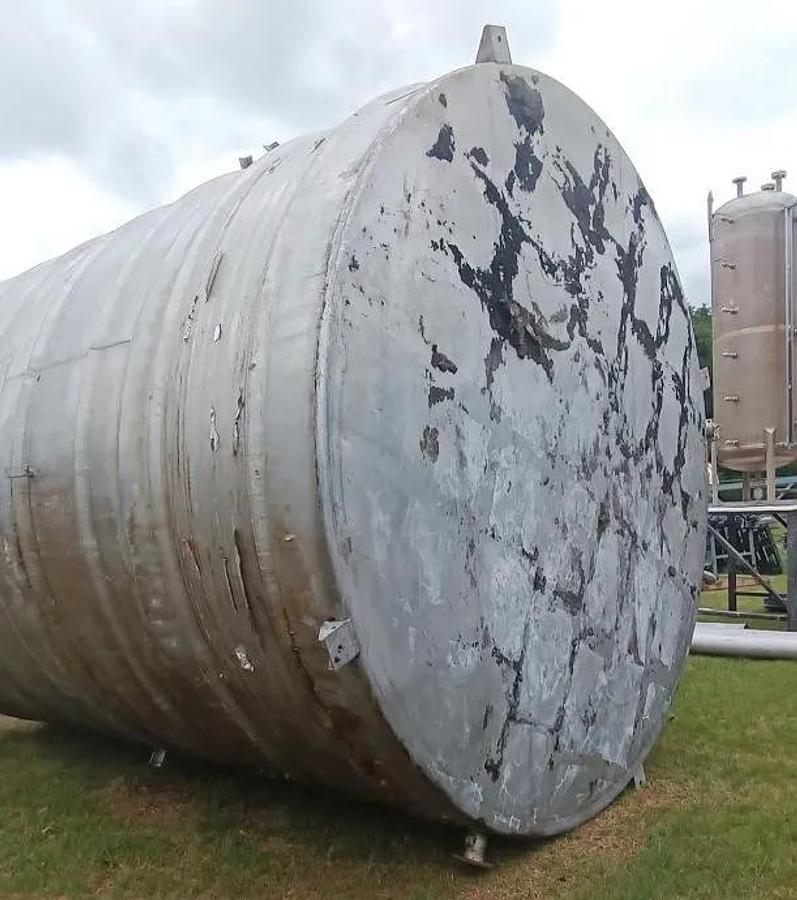

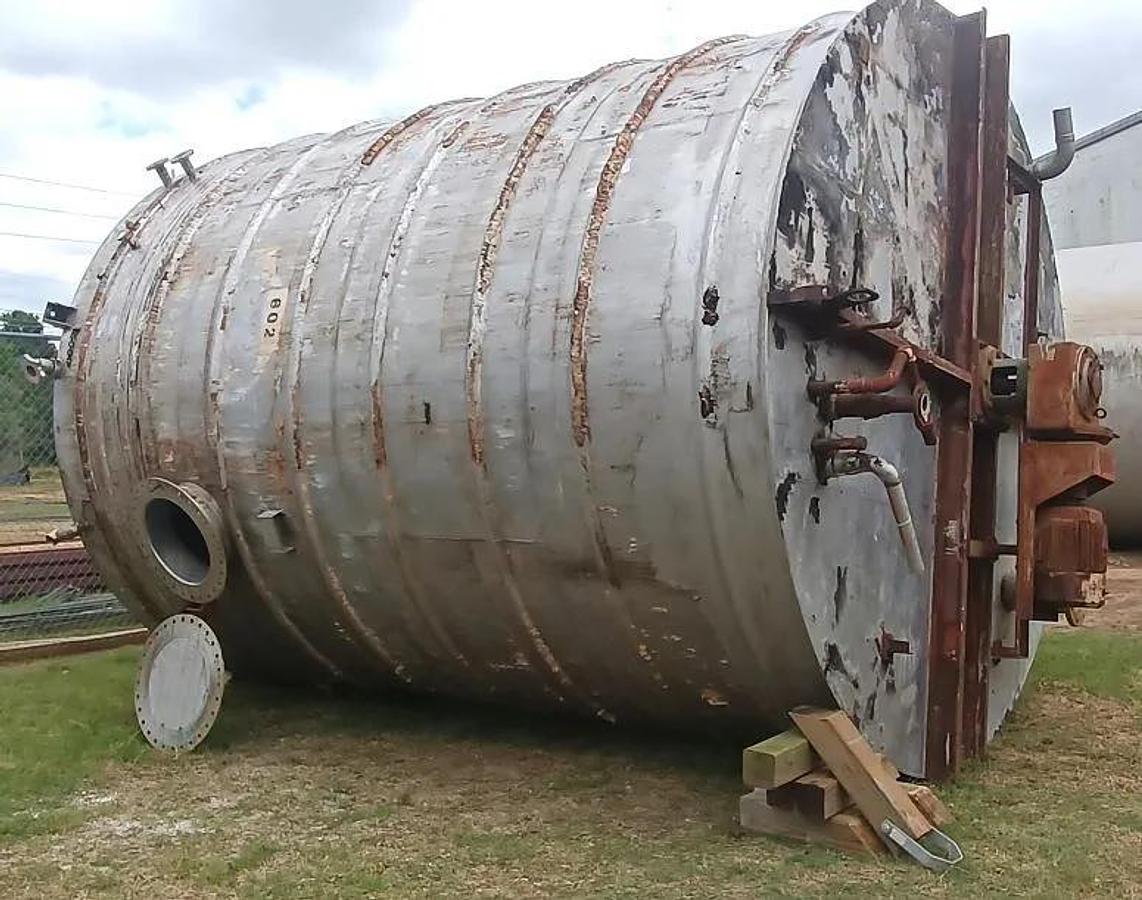

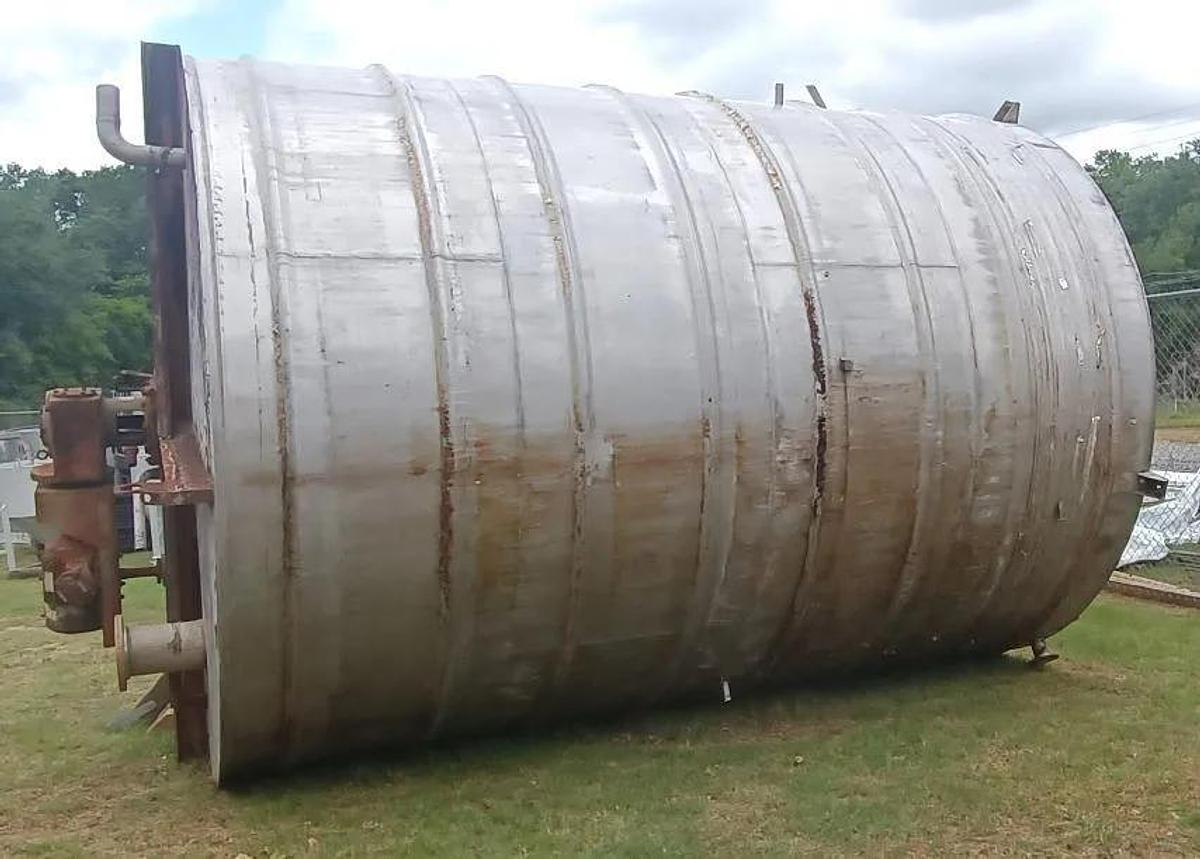

12,000 GALLON ALLOY FAB VERTICAL MIX TANK WITH INTERNAL COILS - S/S

or
Call 216-409-1394

Description

12,000 GALLON ALLOY FAB MIX TANK WITH INTERNAL COILS

  • Stainless steel

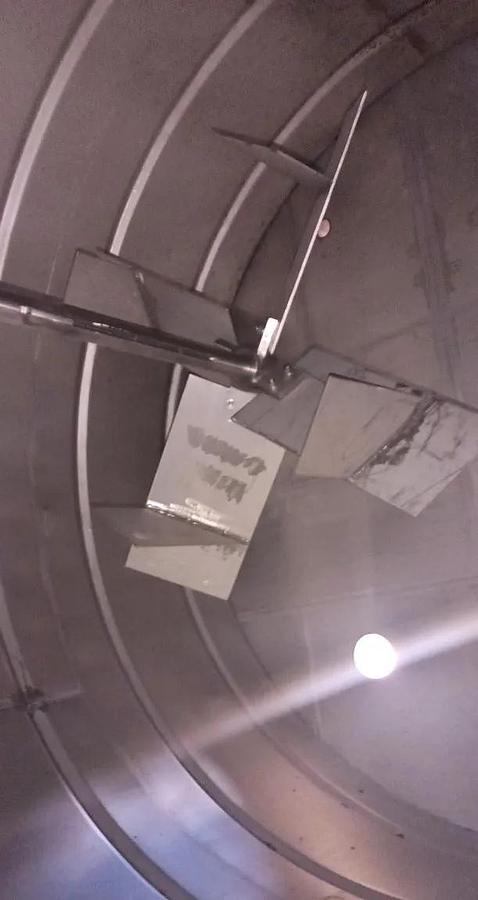

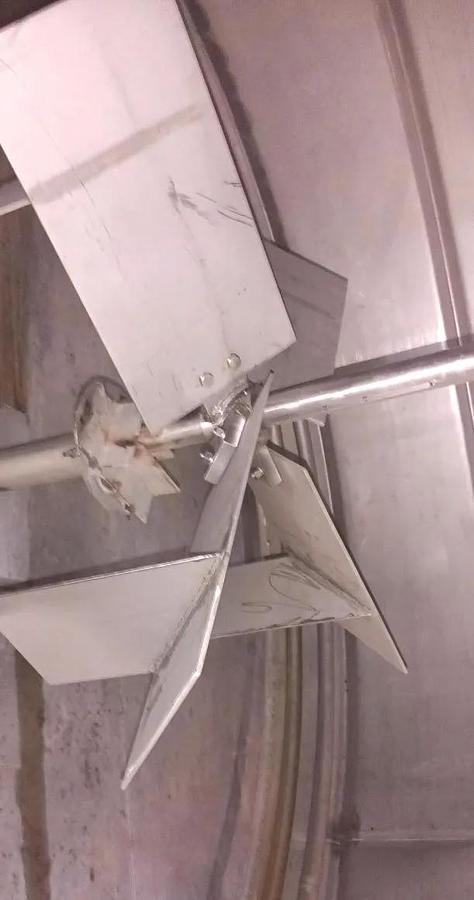

  • Flat bottom tank with agitator, 7.5 HP, 460 V, 750 RPM into gearbox.

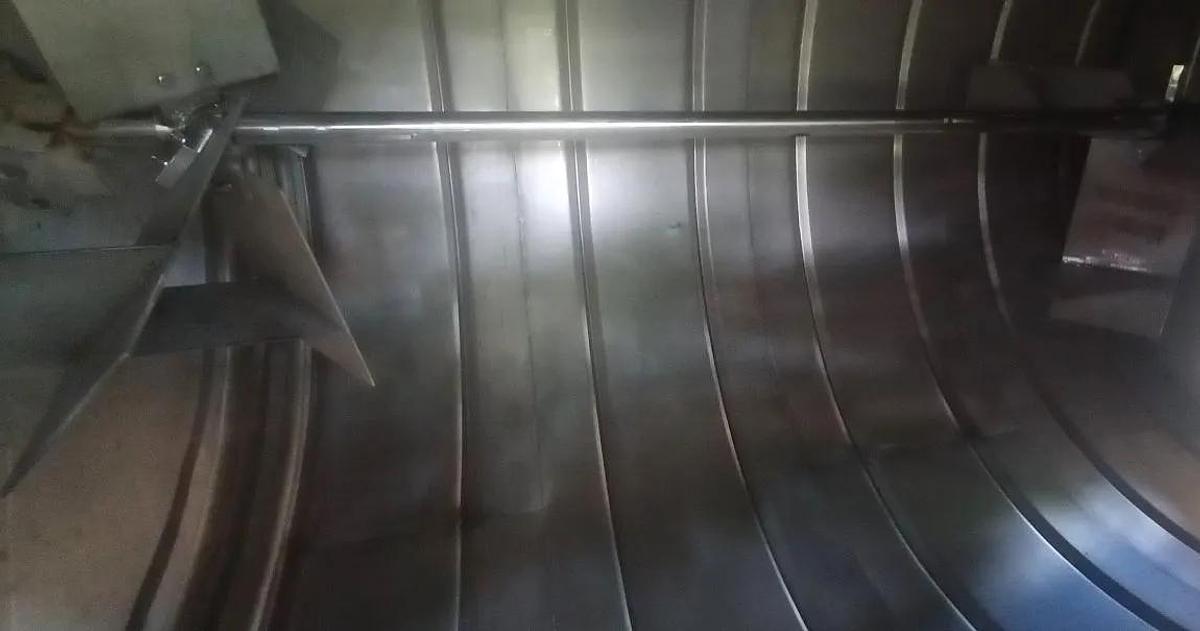

  • There are 2 loops of internal heating coils which are 2".
  • 216" total height, 188" sidewall. 144" diameter.
  • Ports: Top: 1x 8" 150lb flange, 3x 1.5" threaded and 2x 3" threaded, 1x 3" vent pipe.
  • Side: 19" manyway, 1x 2" threaded, 2x 3" threaded, 1x 1" threaded, 2x 1/2" threaded, and 2x 150lb flange inlet/outlet for internal coils.



Show All

Specifications

ManufacturerAlloy Fab
ConditionUsed
Stock Number11654
Size (smallest to largest)12000 GALLON
