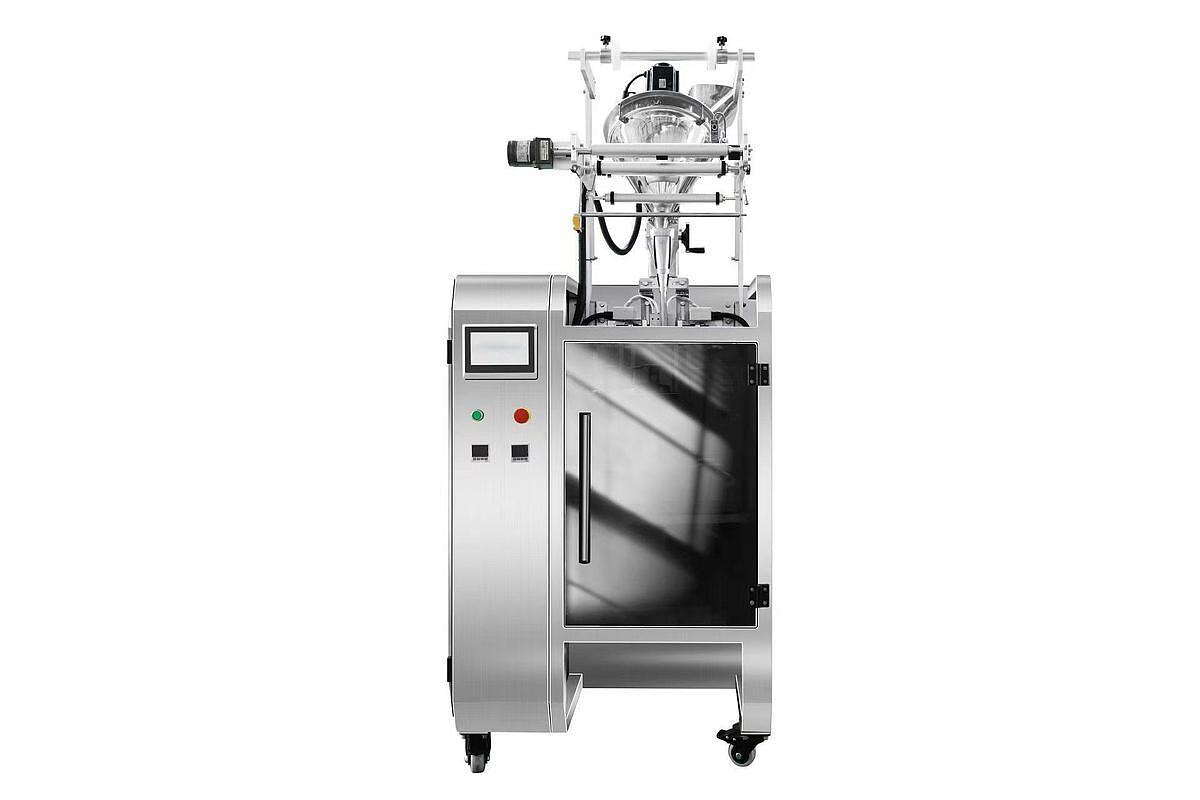

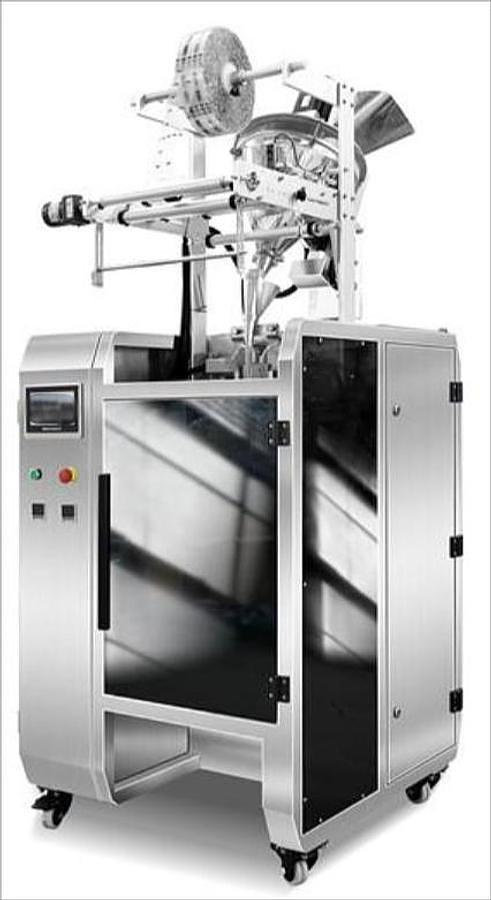

VERTICAL SINGLE-LANE CLAMP AND PULL POWDER PACKAGING MACHINE - LC-200B-FM

NEW VERTICAL SINGLE LANE CLAMP-AND-PULL POWDER PACKAGING MACHINE LC-200B-FM

Manufacturer Hongda

Model LC-200B-FM

Year 2025

Condition New

Stock Number 98

Location Ontario, CA, USA

Packaging Volume Customizable (Within the packaging bag range)

Metering Method Short Auger

Film Width Max. 7.87" (200mm)

Bag Forming Speed 20–80 bags/min

Bag Width 0.8–3.5 in(20–90 mm)

Bag Length 2.0–8.3 in(50-210mm)

Sealing Type Back seal

Cutting Options Round / Flat / Zigzag

Hanging Hole Type Round hole,Butterfly-shaped hole

Power Supply 200-240Vac, 50/60Hz, 2.2KW (Customizable)

Film Roll Inner Diameter 3.0 inches

Film Roll Outer Diameter Max. 11.8 inches

Air Pressure 87–116 PSI(0.6–0.8MPa)

Compressed air 0.6–0.9CFM（17–25 L/min）

Key Features

·       Clean & Low-Noise Operation – Quiet running, ideal for clean environments.

·       Fully Automatic – Measures, forms bags, seals, prints dates, and cuts – all in one cycle.

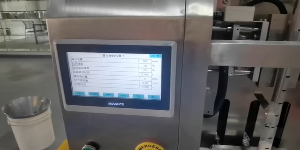

·       Smart Control System – PLC + servo + multi-language touch screen for easy, stable operation.

·       Real-Time Adjustments – Change parameters without stopping; supports 100 recipe memory.

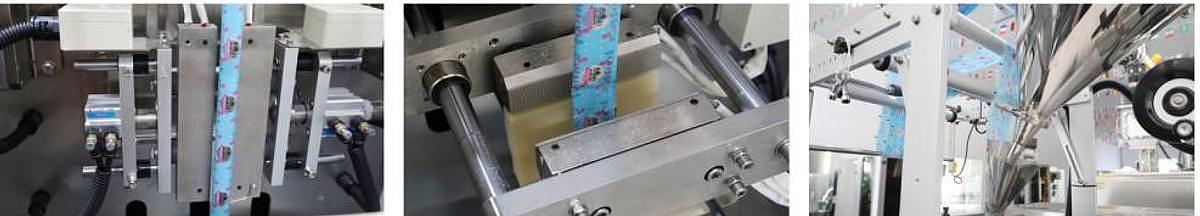

·       Accurate Bag Length Setting – Servo-driven pulling, length set via touchscreen, no parts change.

·       Color Mark Tracking – SICK photo sensor ensures precise printing alignment.

·       Hygienic & Safe – 304 stainless steel contact parts; Complies with GMP, CE certified, and uses CUL-approved electrical parts.

·       Fast & Accurate Filling – Customized auger filler with ±0.5% filling accuracy.

·       Tailored Filling System – Filling unit is customized based on material characteristics and test results to ensure precision, avoid clogging, and maintain accuracy.

·       Custom Bag Forming Design – Film pulling and forming parts are designed based on bag type, product features, and weight, ensuring optimal bag size and sealing method.

Applications

·       This machine is ideal for automatic packaging of free-flowing powder products in the food, pharmaceutical, and chemical industries, such as herbal granules, probiotics, protein powder, meal replacement powder, spirulina powder, instant coffee powder, lotus root starch, tea powder, pearl powder, seasonings, and more.

1 Year Warranty

FOB - Ontario, CA
