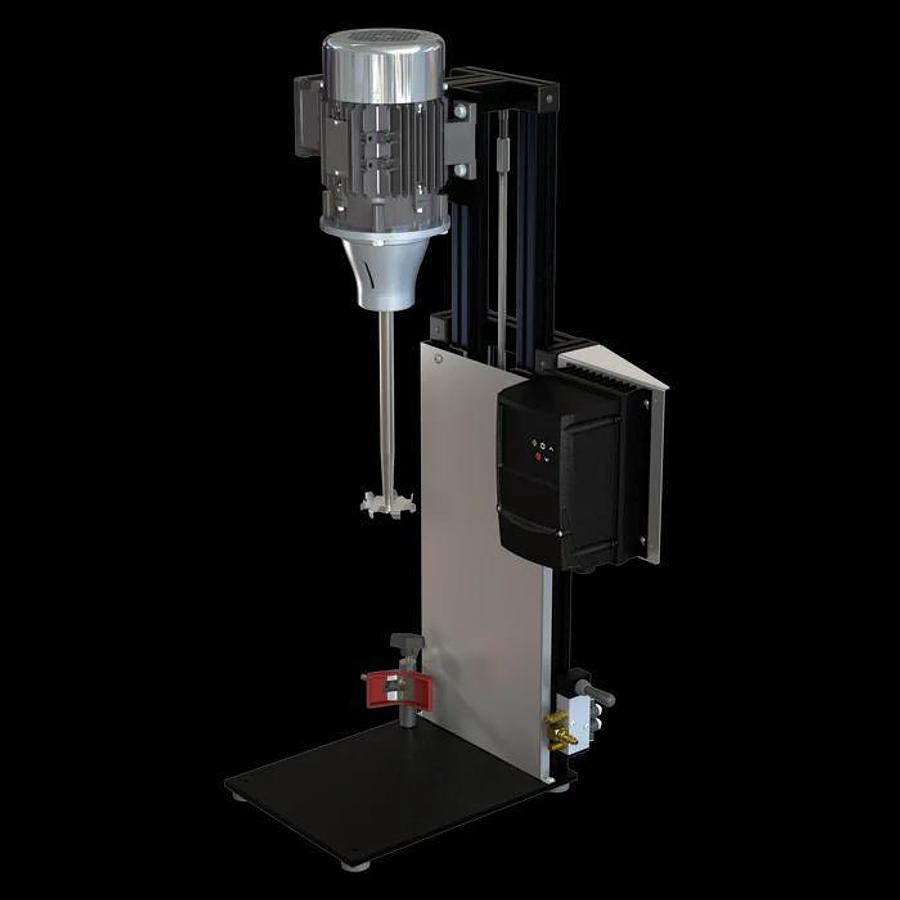

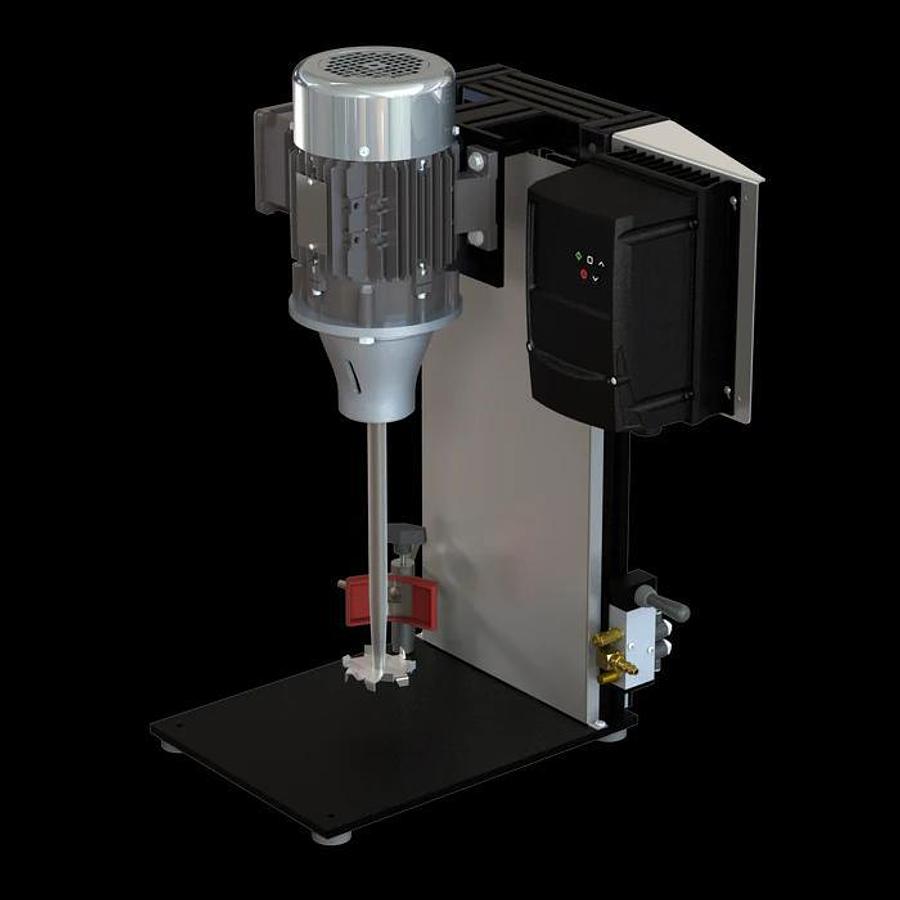

3 HP HIGH SPEED BENCH TOP DISPERSER - TEFC MOTOR
or
Call 216-409-1394
Description
Product Specifications
Lead Time 7 Business Days
Motor Type TEFC Electric
Horsepower 3 HP
Voltage 230V
Phase 3 Ph.
Speed Controller Variable Frequency Drive (VFD)
Enclosure Type IP55
RPM Range 500-5000
Shaft Material 316 SS
Shaft Diameter .75 in.
Impeller Type Dispersion Blade
Number of Impellers 2
Impeller Diameter 4 in.& 5 in.
Impeller Material 316SS
Impeller Attachment Bolted onto an internally threaded shaft
Volume 200ml - 5 gal.
Total Height Raised 41 in.
Total Height Lowered 29 in.
Max Vessel Height 16 in.
Lift Type Electric
Lift Height 14 in.
Air Lift Requirement 80psi @ 1cfm
Approx. Lead Time as of 6/2/26: 7 business days
Specifications
| Manufacturer | MXD Process |
| Model | DP1 - 3 HP |
| Condition | New |
| Stock Number | 11720 |
