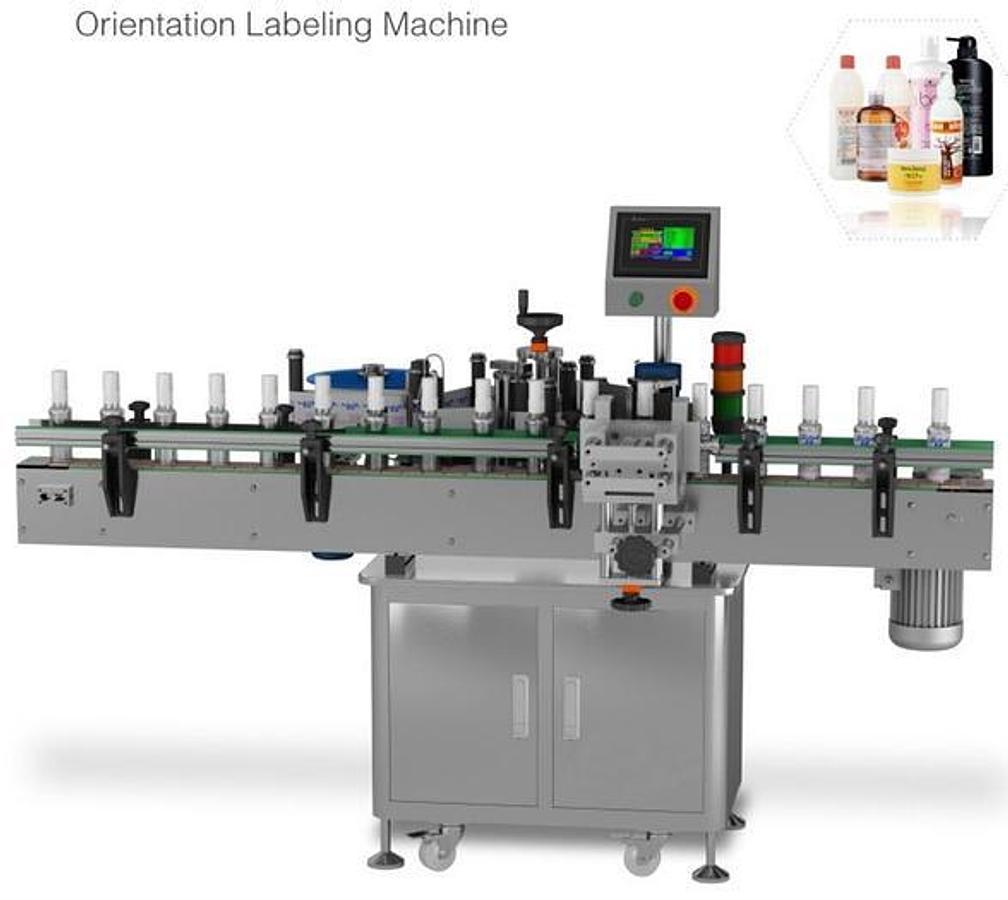

POSITIONING ROUND BOTTLE LABELING MACHINE

Year 2026

Condition New

Stock Number 20

Location Ontario, CA, USA

Product Height Range 1.6"–11.8" (40–300 mm)

Label Height Range 0.4"–4.7" (10–120 mm)

Label Length Range 0.6"–17.7" (15–450 mm)

Labeling Speed 20-35bottles/min (adjustable)

Labeling Accuracy ±0.04 inch

Power Supply 200-240Vac,50/60Hz,0.55Kw

Machine Weight 485 lb

Air Pressure 87–116 PSI (0.6–0.8 MPa)

Working Principle:

• Packaging items are placed on the labeling machine conveyor and transported to the

bottle separation area. Bottles are aligned and guided by the holding mechanism into

the labeling zone. A photoelectric sensor detects each bottle and sends a signal to the

PLC, which controls the servo motor to dispense labels. Labels are applied using a

rolling mechanism. After labeling, bottles are conveyed to the next process.

Key Features

• Adjustable Production Speed: Production speed can be set freely and automatically

adjusts to match any production line for optimal efficiency.

• Automatic Fault Detection: The machine stops and issues an alert in case of

abnormalities such as label run-out, ribbon break, ribbon depletion, counter settings

reached, or mechanical faults.

• High-Performance Servo Motor: Delivers highly stable and synchronized label

dispensing with a response speed up to 300 cycles/min and strong torque.

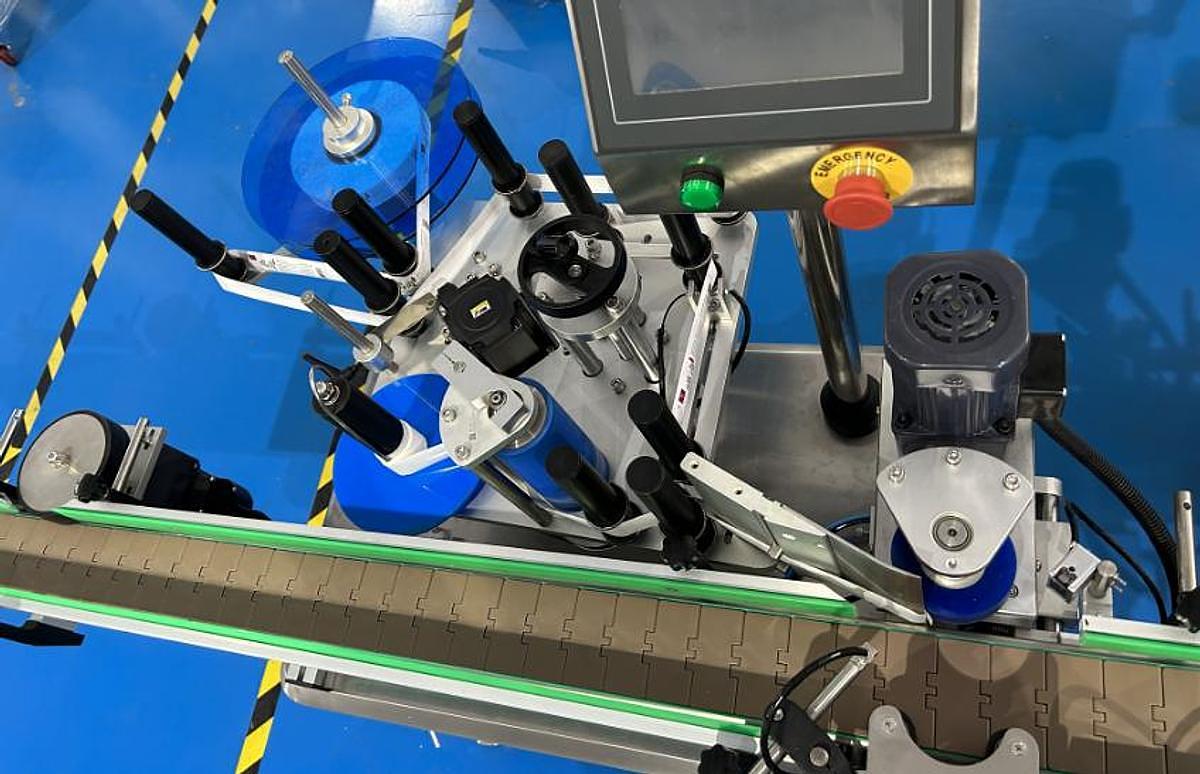

• Durable Label Rolling Mechanism: Uses special rubber material for the rolling

mechanism, ensuring high wear resistance and long-lasting performance.

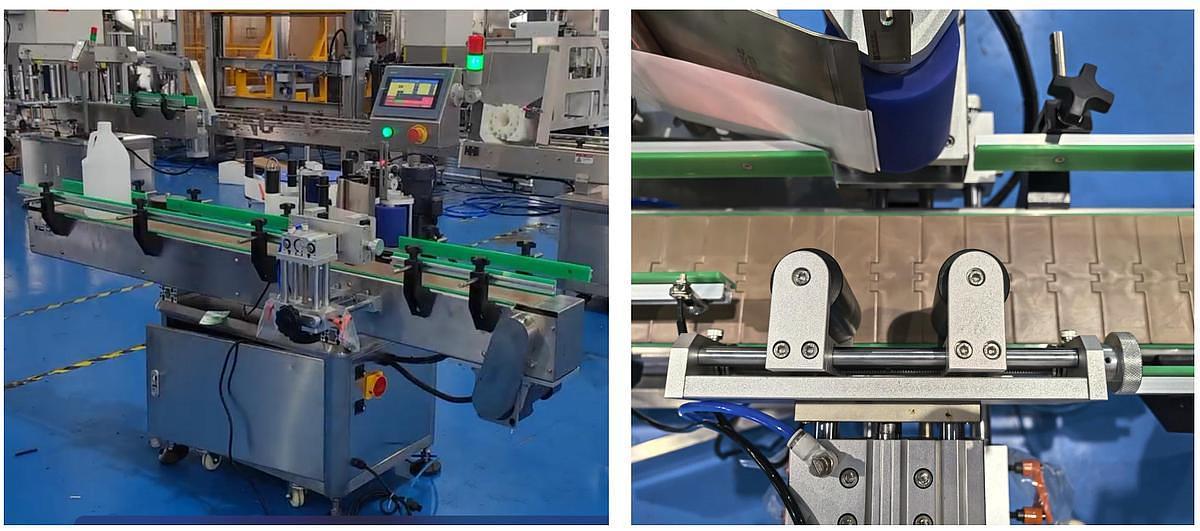

• Precise Bottle Separation: Differential bottle separation mechanism with accuracy up

to ±5 mm. No need to change parts when switching bottle sizes, saving costs and

simplifying adjustments.

• Robust & Modular Construction: Machine base and components are standardized

and modular for full interchangeability. Designed for 24/7 operation, ensuring safety and

stability.
