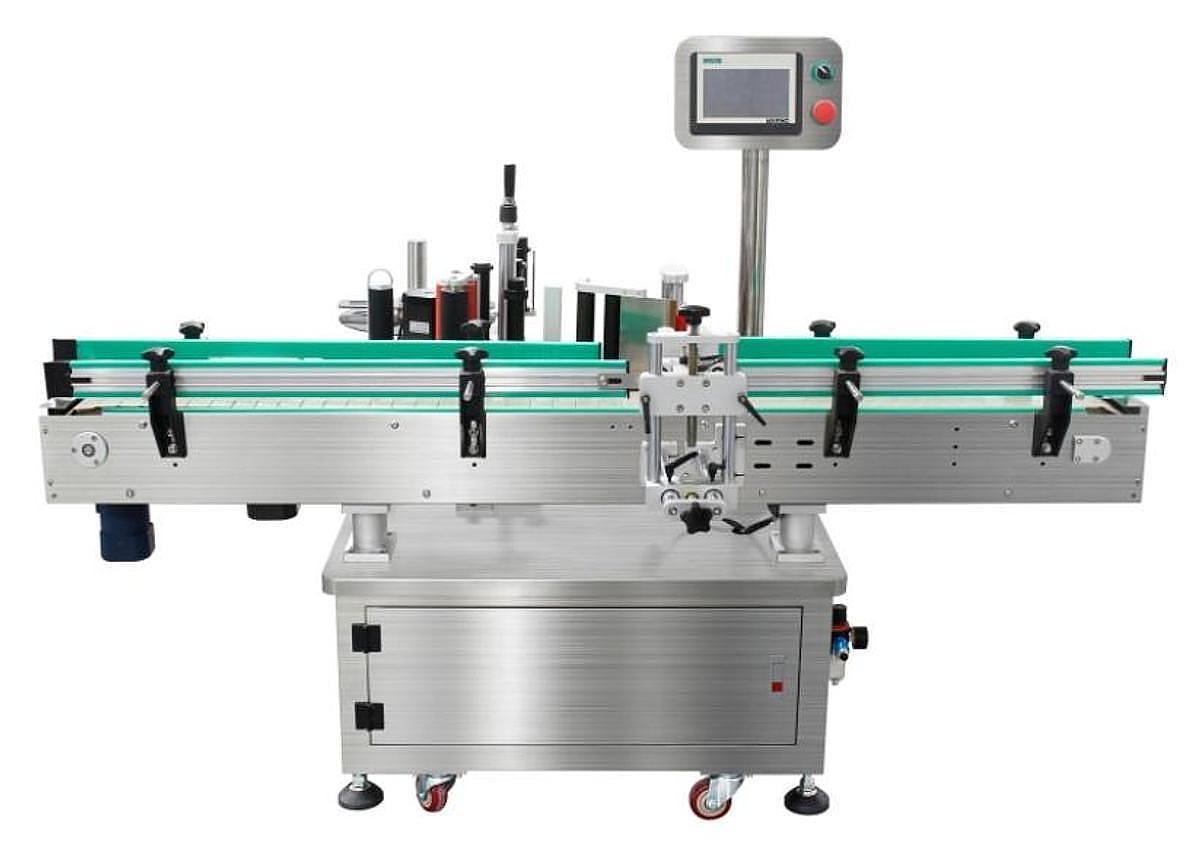

ROUND BOTTLE LABELING MACHINE - MODEL 320

Model 320

Year 2026

Condition New

Stock Number 374

Location Ontario, CA, USA

Labeling Accuracy ±0.079 in (±2 mm, excluding product and

label tolerances)

Labeling Speed 20-30 pcs/min (depending on bottle and label

size)

Applicable Product Diameter 1.18–7.87 in (30–200 mm)

Applicable Product Height 0.98–9.06 in (25–230 mm)

Applicable Label Length 1.57–11.81 in (40–300 mm)

Applicable Label Width (Backing Paper Width) 0.78–5.12 in (20–130 mm)

Overview:

• This machine is a round bottle labeling system that employs a fixed-position method to

accurately apply labels on cylindrical objects. It is capable of labeling semi-circular or

full-wrap surfaces and is ideal for industries including alcoholic beverages, food,

personal care, cosmetics, beverages, pharmaceuticals, and chemicals.

Working Principle:

• The bottle dividing mechanism separates round or square bottles, after which sensors

detect each passing product and send signals to the labeling control system. The

system then activates the motor to dispense and apply the label at the precise position.

With high-precision photoelectric positioning, the machine can apply one or two labels

per bottle, allowing for both front and back labeling.

Operation Process:

• Place the products (can be connected to a production line) → Product conveying →

Product spacing → Product detection → Labeling → Label covering → Collect labeled

products.

Product Advantages:

• High Labeling Quality: Equipped with an elastic pressure label-covering roller, the

machine ensures smooth, wrinkle-free labeling, enhancing overall packaging quality.

• Wide Applicability: Supports full-wrap or semi-wrap labeling for round bottles.

Switching between different bottles is simple and adjustments are easy.

• Easy Adjustment: Labeling speed, conveying speed, and bottle spacing can be

adjusted steplessly to meet production requirements.

• Flexible Application: Labels upright bottles and features automatic bottle separation.

Can operate as a standalone machine or be integrated into a production line.

• Intelligent Control: Equipped with automatic photoelectric tracking, ensuring labels

are applied only when a product is present. Features automatic label correction and

detection to prevent missed labels.

Mid-July 2026 arrival
