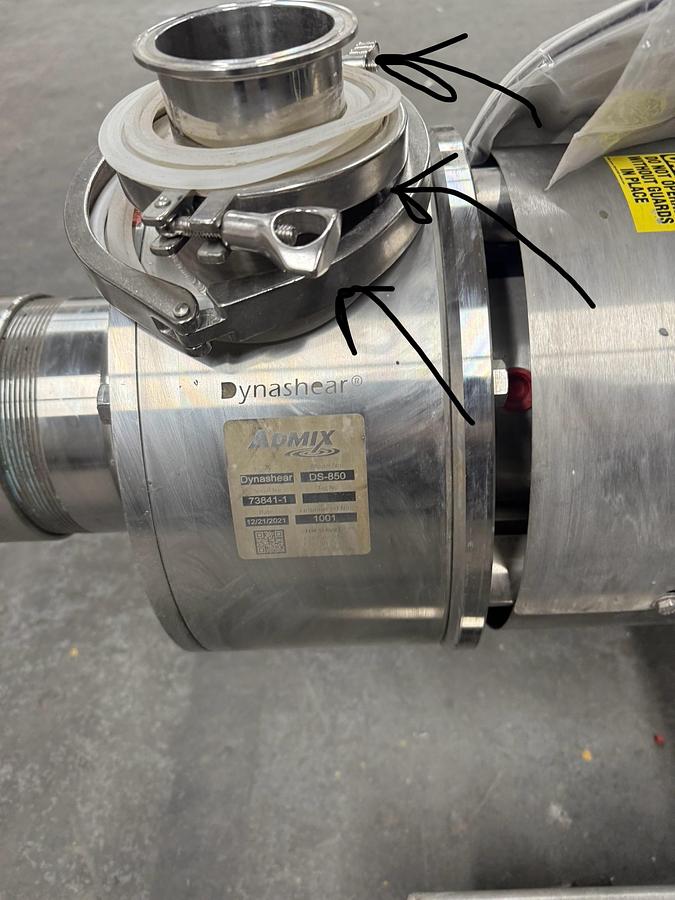

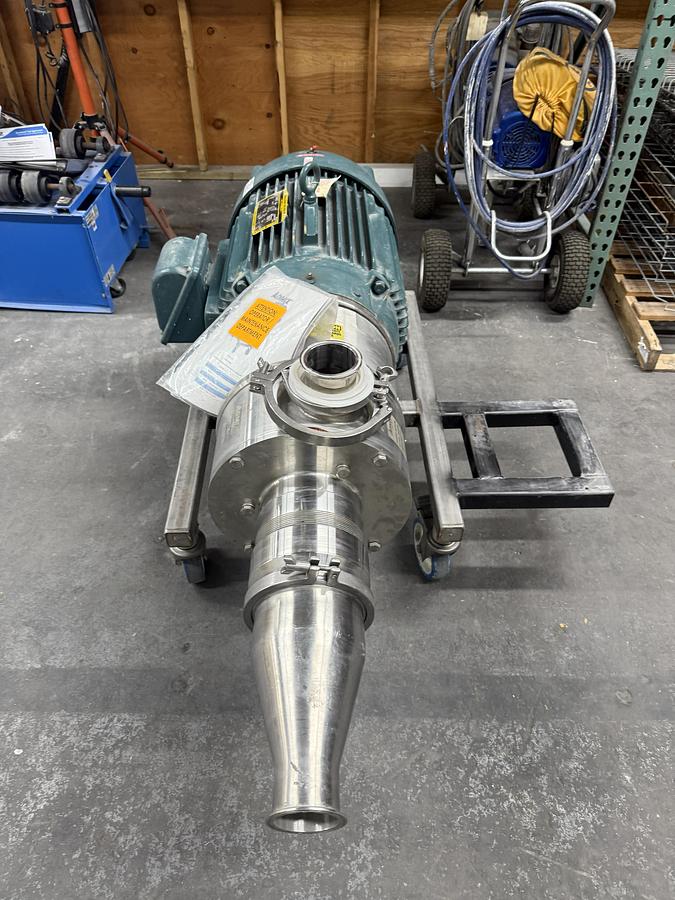

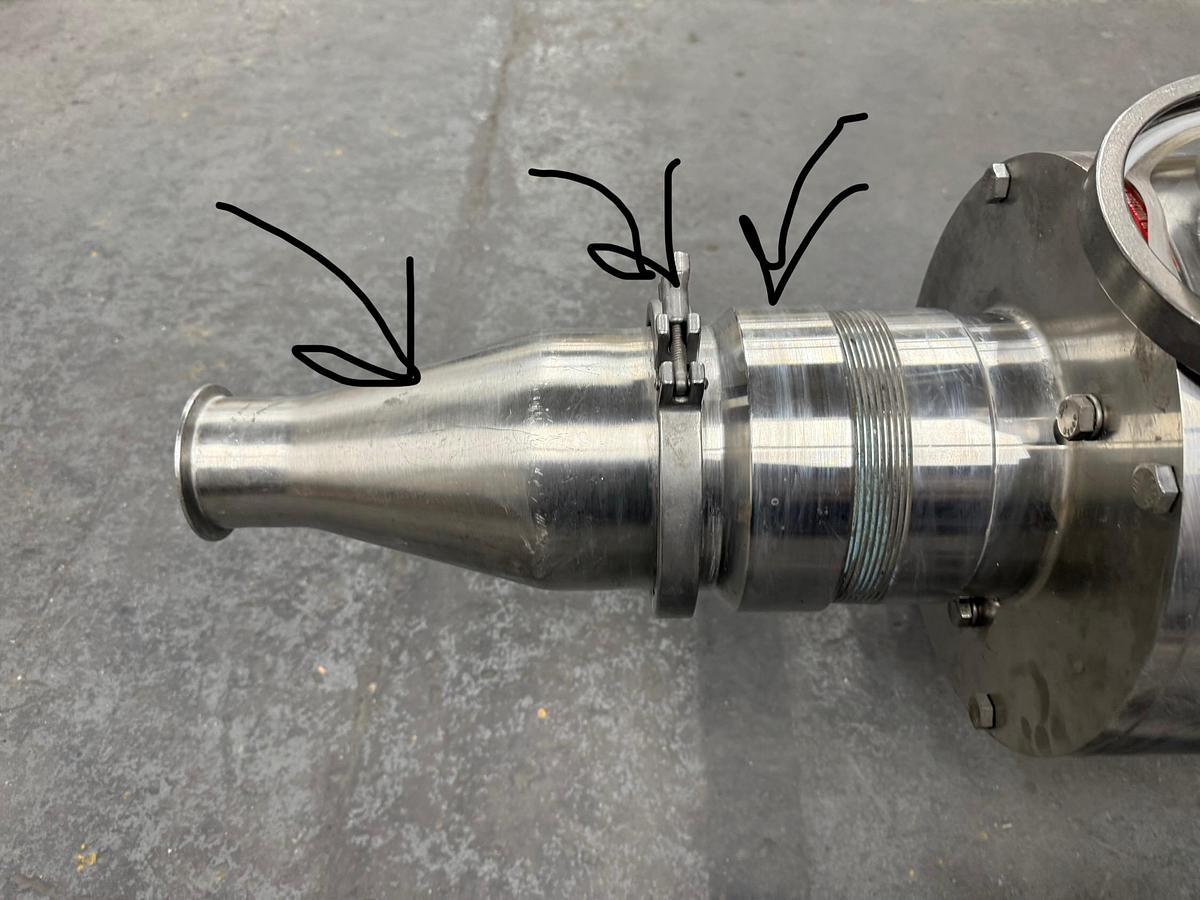

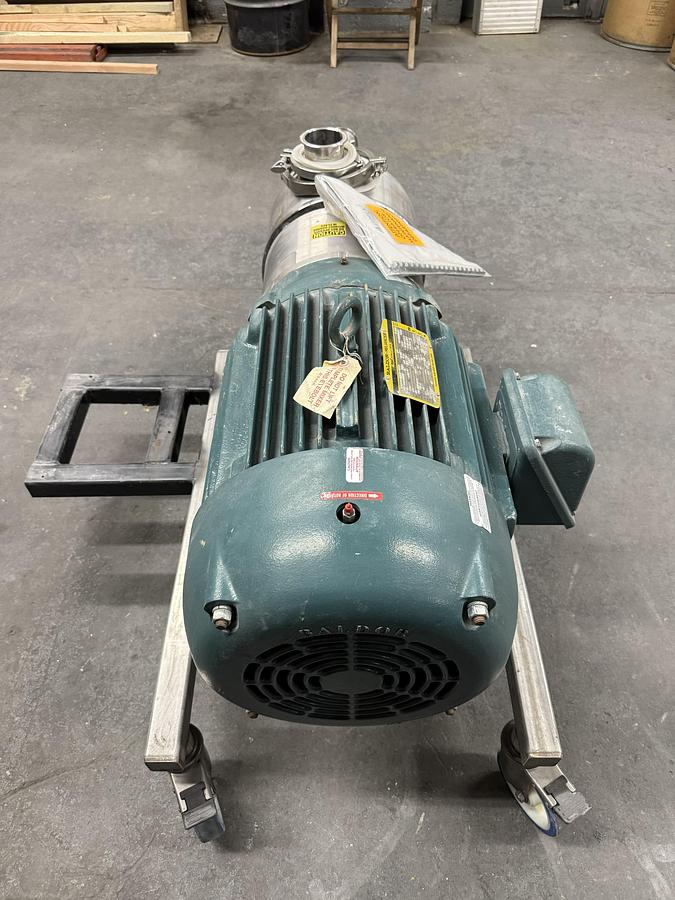

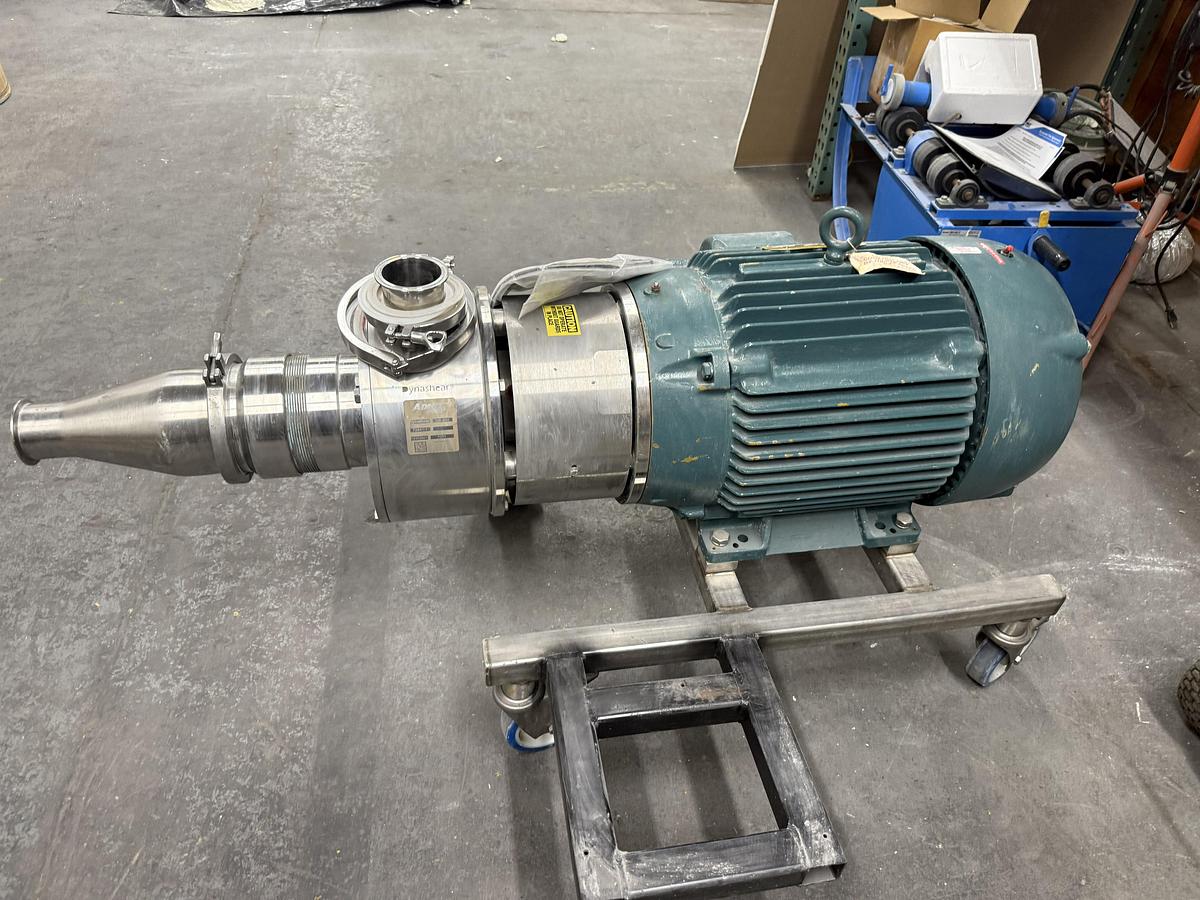

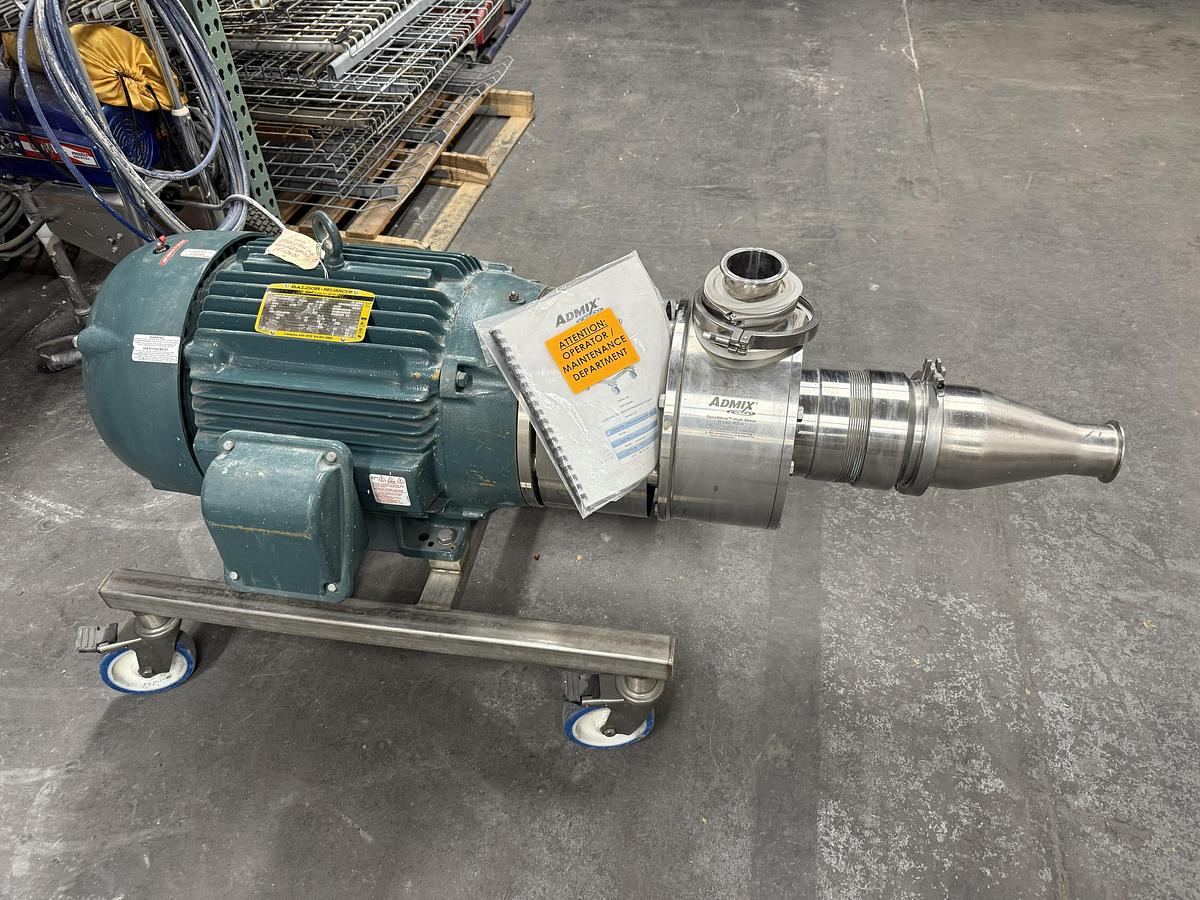

40 HP ADMIX DYNASHEAR INLINE HIGH VOLUME/HIGH SHEAR MIXER - 316L S/S

or
Call 216-409-1394

Description

  • Two-Stage Mixing/Shearing with dynamically balanced rotors and shaft
  • Axial stage
  • 5.63" dia., 43 ft/sec tip speed, multi-size perforations
  • Radial stage
  • 8.5" dia., 64 ft/sec tip speed, fine slot stator for max shear
  • CIP-able with radius corners & hygienic seal chamber
  • Designed for rapid disassembly and assembly for cleaning & inspection
  • 40 HP, 1750 rpm, 3/60/460V, IP56, TEFC motor
  • T-316L stainless steel fully machined housing & wetted parts
  • 32Ra Finish on wetted parts
  • 6" NPT Male Inlet / 4" Sanitary Tri-Clamp Outlet
  • Mounted on stainless steel baseplate with casters
  • Seal: Single mechanical cassette seal ("S10")
  • Tungsten carbide rotating & stationary faces
  • Flush and quench ports
  • Rated for 450 psi and 300 deg. F
  • Approx. Shipping weight & dims: 500# - 40" x 26" x 35" H
  • New replacement cost the year it was built (2021) $82,901.00




Show All

Specifications

ManufacturerAdmix
ModelDS-850
Year2021
ConditionUsed
Stock Number11788
