10 HP SCHOLD HIGH SPEED DISPERSER (#9224)

orCall 216-831-8485

Description

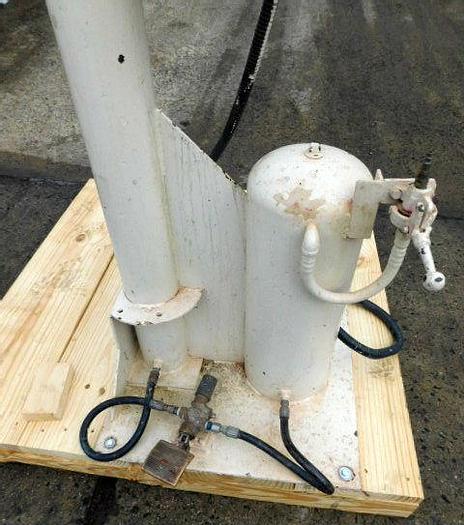

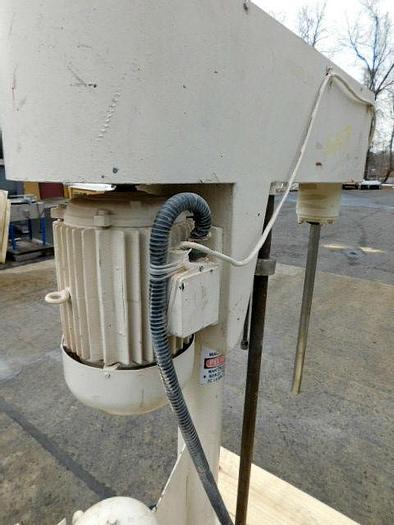

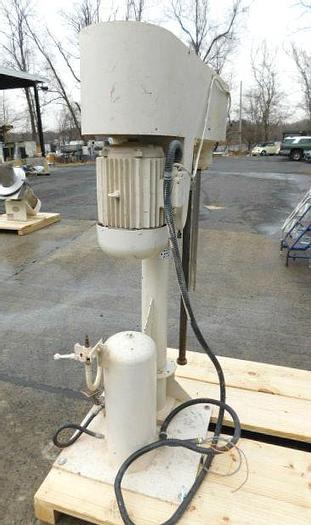

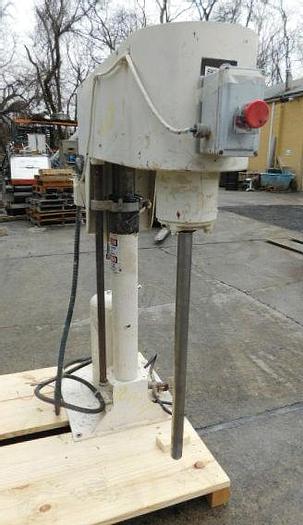

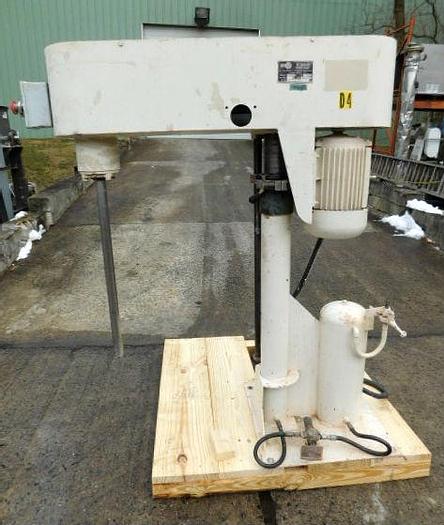

1 – used 10 HP Schold Dispersion Mixer. Stainless steel shaft measures approx. 1.625 in. dia. x 30 in. long with approx. 1/2/13 tpi threaded holed in end of shaft for agitator blade mounting. According to manufacturer’s literature, speed range 600-3600 RPM. Mechanical variable speed control has been disabled for use with AC Frequency drive. Floor mount with air/oil lift system with reservoir tank to 48 in. under clearance. Foot pedal activated lift with up/down control lever. 24 in. clearance from mixer shaft to machine frame. 10 HP motor is 3/60/230/460V, 24.9/12.4 apms, 1710 RPM, 1.15 service factor. Unit is mounted on a 24 in. x 24 in. base plate with corner holes drilled for mounting. Last used for cosmetics manufacturing. Unit can be seen under power. F.O.B. – LOCATION

Specifications

ManufacturerSchold
ConditionUsed
Serial NumberS2080
Stock Number9224
Size (smallest to largest)10.0
