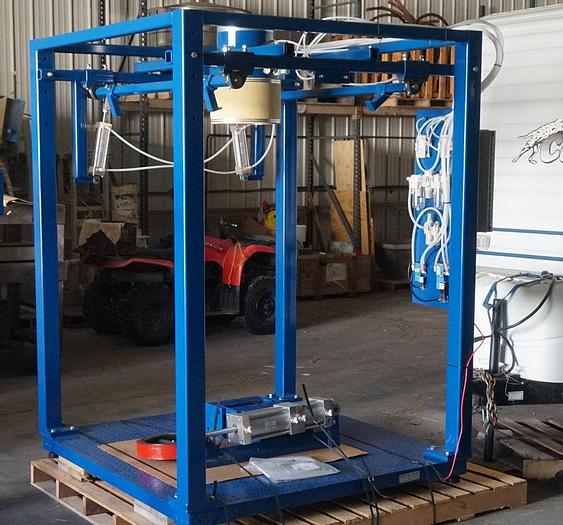

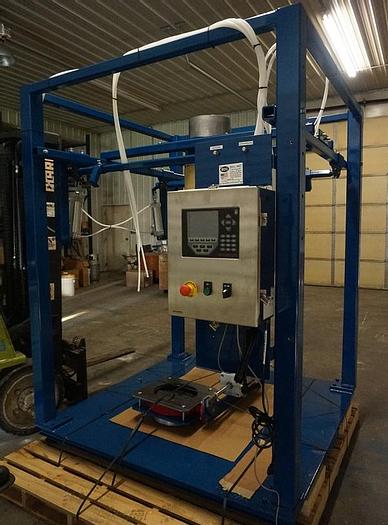

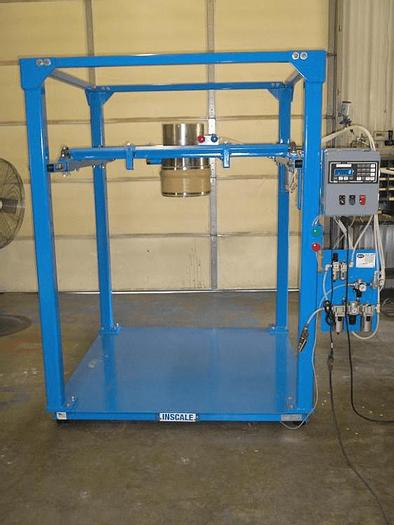

BULK BAG LOADING STATION – NEW

orCall 216-831-8485

Description

This is a quote on a bulk bag loading station for packaging powdered or granulated dry materials.  It is a manual operation, where the bag is hung by the operator, the bag’s neck is placed over the bladder, and the start sequence is engaged (which opens the butterfly valve, allowing material to flow into the bag).  The butterfly valve is designed for bulk and dribble fill.   The controller can be programmed for any weights up to 5000#. The unit stands approximately 8’ high.

BULK BAG FILLING EQUIPMENT

WEIGH SCALE

Five Thousand pound (5,000 lb.) capacity, four load cell weigh scale platform (5' x 5'), with forklift pockets,  carbon steel deck, load cell cable, digital scale controller (Rice Lake 920i) in NEMA 4X stainless steel wall enclosure with adjustable set points for fill, dribble and cut off.  Adjustable height frame to hold bulk bag.  (4) Heavy duty, 3-1/2" x 3-1/2" x 1/4" thick posts to hold frame at corners of platform scale. (4) Air actuated hooks to hold tension in bulk bag during the filling stage.



FILLING NECK

Model CAM-14-SS is a 304SS container fill neck with inflatable neoprene rubber bladder and protective sleeve to seal and retain bulk bags with a 14" diameter inlet sleeve. Includes removable bladder section, dust collection outlet and bag inflation inlet.


BULK & DRIBBLE FILL

10” diameter butterfly valve with cast iron disc, double acting air cylinder with bulk / dribble

 cut off;  pneumatically operated from digital controller.



Price for one (1) filling station as described………………………………$  15,750


Terms: 50% with order to begin production 50% balance due upon completion of work prior to shipment.Please note these prices are subject to change at any time based on the current steel market and cost of other parts. F.O.B. – LOCATION

Specifications

ManufacturerECC, Inc.
ConditionNew
Stock Number7537
Size (smallest to largest)0.01
