J.H. DAY TURBULENT MIXER – S/S – JACKETED (#9697)

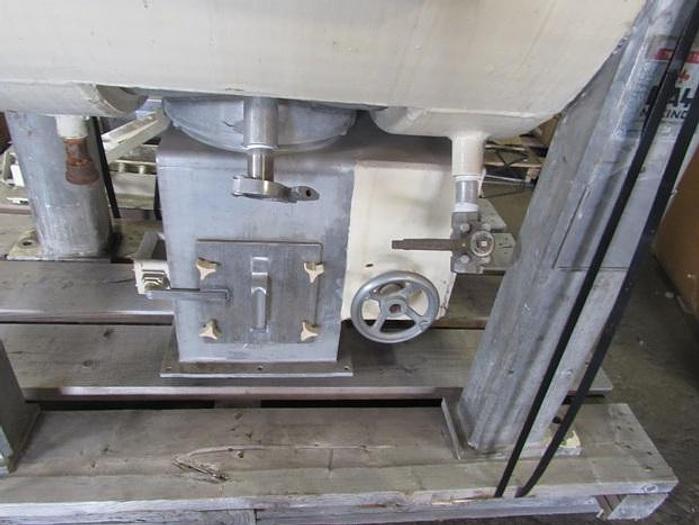

8.9 cu. ft. DAY 304 STAINLESS STEEL JACKETED T10 TURBULENT MIXER J H Day, serial Number 88612, 66.76 gallon (8.9 cu. ft.) sanitary stainless steel turbulent mixer model T10. 304, stainless steel with inside polished surfaces to 100 RMS finish. (4) blade design with 304 stainless agitator. Plain steel jacket painted with two coats of white epoxy paint has a 75 PSI @ 320 deg. F ASME code rating. Mixer has stainless steel support brackets 10 in. x 15 in. access door 8 in. charging port 4 in. vent and 8 in. 304 stainless steel flush type discharge valve with a 36 in. clearance. Range of agitator speed is 57.5 – 230 RPM. Main drive originally had a 15 HP. Tulip-shaped chopper blade is 15 HP and explosion proof. New in 1978. This unit was originally used as a toothpaste lab mixer and appears to be in very good condition. Print on hand with additional details.
|Size (smallest to largest)||253.0|
