1 ACM MIKROPUL PULVERIZER LAB AIR CLASSIFYING IMPACT MILL (#9431)

orCall 216-831-8485

Description

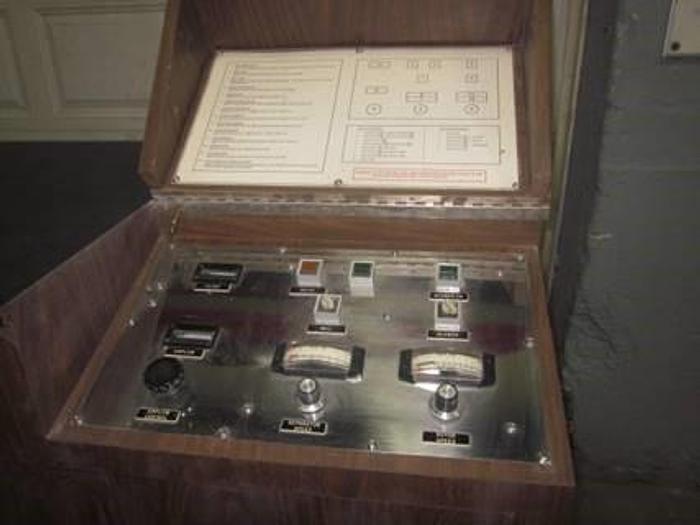

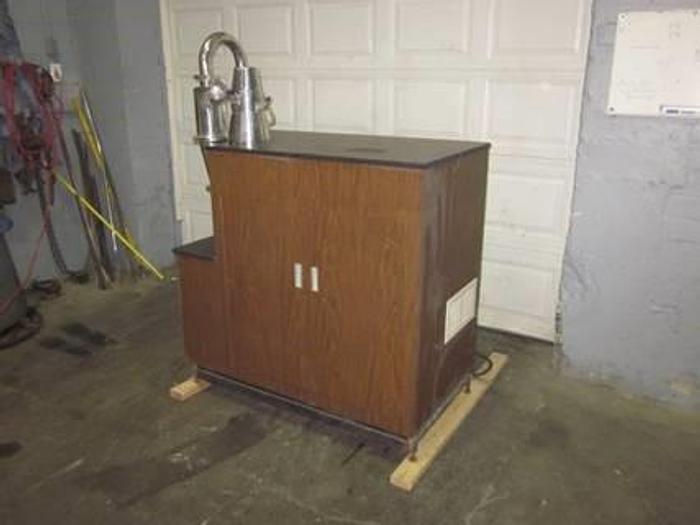

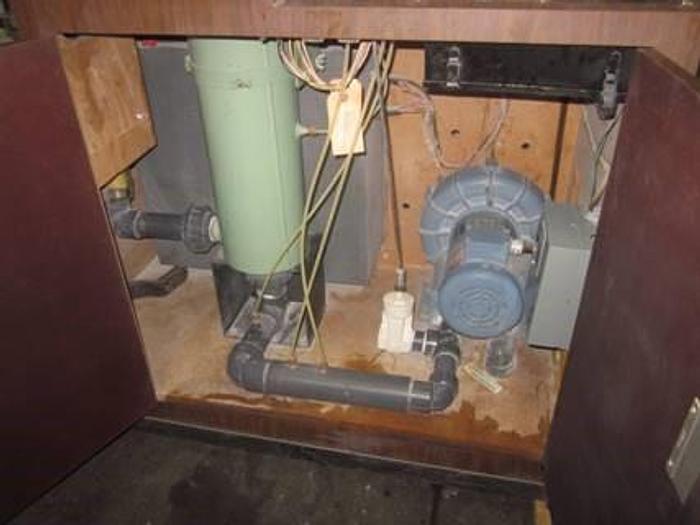

1 ACM MIKROPUL PULVERIZER LAB AIR CLASSIFYING IMPACT MILL one(1) used 1 ACM Mikropul Pulverizer Lab Air Classifying Mill. Model: 1 ACM Fine Grinding System. Complete Self Contained particle size reduction system. Mill, blower and controls. Equipped with high speed rotor w/ bar hammers. Chamber housing has scalloped liner fro deflecting back. Equipped with separator wheel. Equipped with Stainless steel cylcone collector and piping Equipped with full control panel. Equipped with 2 hp Rotron Inc. regenerative blower. Equipped with air filter. All unitized in one cabinet. 48″ x 26″ x 45″ high Rated – max 22,000 RPM rotor speed. Separator Speed – max 10,000 rpm. Rated airflow range 20-70 CFM Weight – 500 lbs. Power Req. – Single phase, 230 volts, 30 amps. Rotor and Multiple Deflector liner- believed to be Ni-hard 4 Shroud, baffle ring, & Separator – believed to be 316 S/S. F.O.B. – LOCATION

Specifications

ManufacturerMikropul
Model1 ACM
ConditionUsed
Stock Number9431
Size (smallest to largest)1.0
